Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R217.94-02.00-3-1.37-12-3A

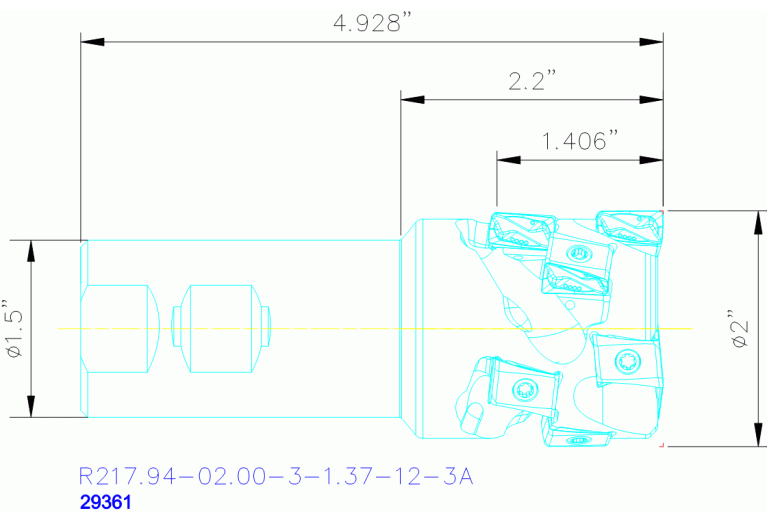

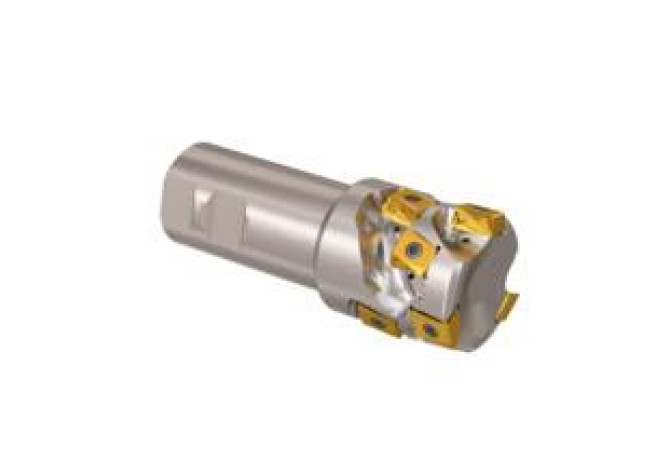

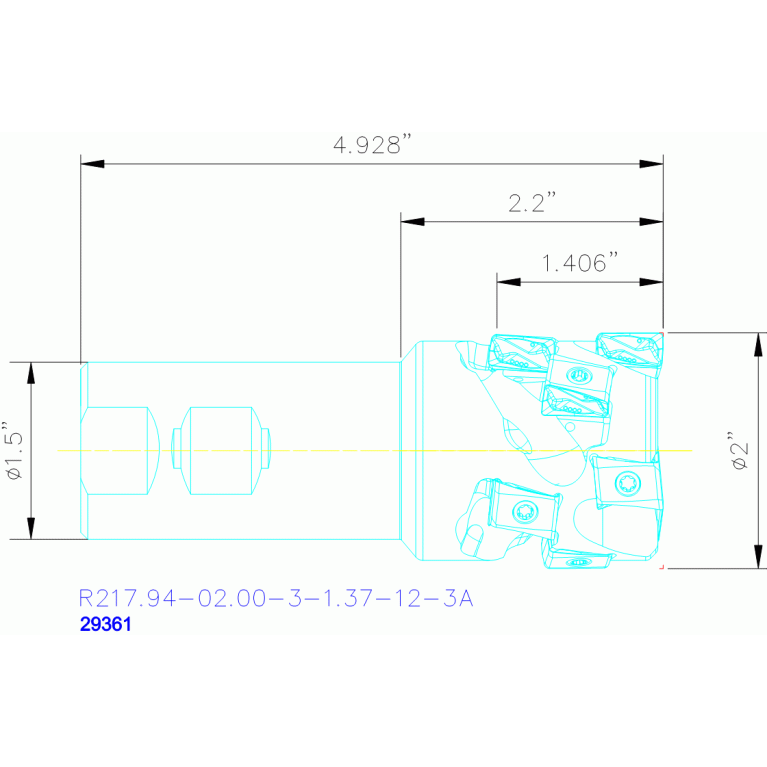

R217.94-02.00-3-1.37-12-3A

R217.94-02.00-3-1.37-12-3A R217.94-02.00-3-1.37-12-3A R217.94-02.00-3-1.37-12-3A R217.94-02.00-3-1.37-12-3A

R217.94-02.00-3-1.37-12-3A

Seco
Артикул: 02998584
В наличии
В корзину
Описание
Характеристики

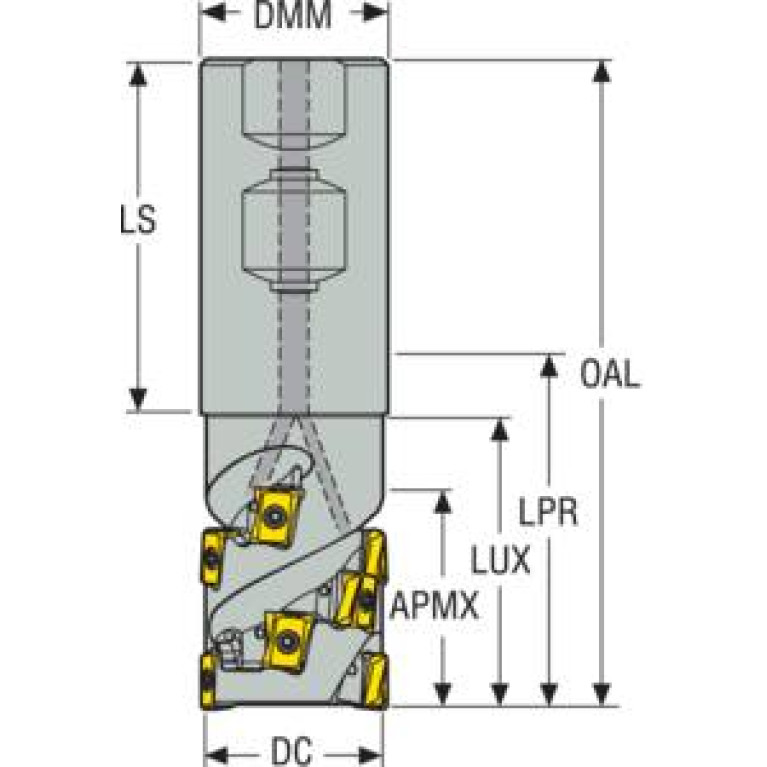

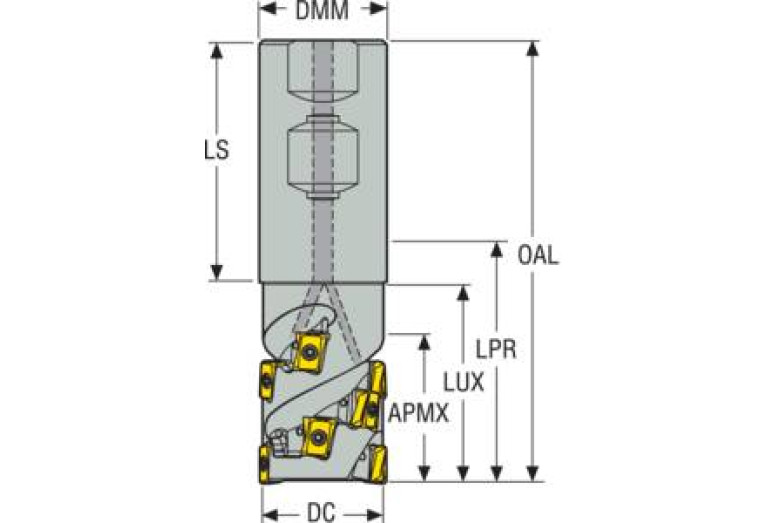

A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
APMX Depth of cut maximum
35.7944 mm
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
C1A Insert thickness Pos. A
10.26 mm
CCONMS Connection count machine side
2
CICT Cutting item count
9
COMPC Company code
SO - SECO Tools
D1B Corner radius Pos. B
0.8 mm
D6A Wiper edge length Pos. A
2.47 mm
D6B Wiper edge length Pos. B
2.47 mm
DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL15001025
FamilyProducts
R217.94-02.00-3-1.37-12-3A
GAMF Rake angle radial
-23.5 Degree
GAMP Rake angle axial
-5.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02998584
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL10S1500h$06
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
LOEX120708R-M09
LOC-02 ISO
SO$$LO1207**4RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-LO4-1207 R
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
ZYL10S1500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15001025
LPR Protruding length
56.86 mm
LS Shank length
68.56 mm
LU Usable length
56 mm
Name Identifying order number
R217.94-02.00-3-1.37-12-3A
OAL Overall length
125.16 mm
RPMX Rotational speed maximum
9800 1/min
Working process
No working processes available
WT Weight of item
1.111 kg
ZEFP Peripheral effective cutting edge count
3
