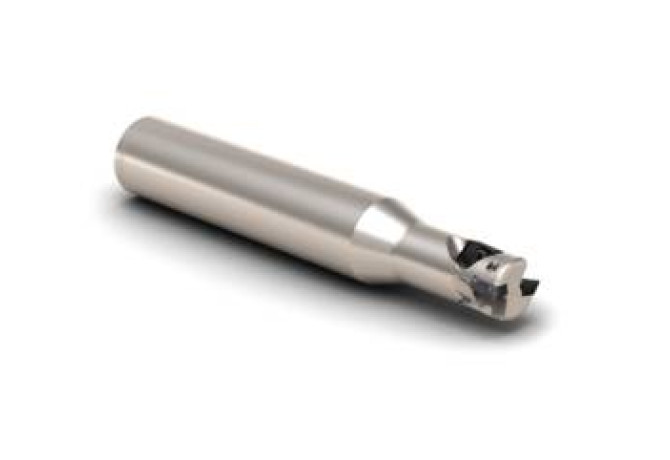

Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R217.69-2020.0-25-06.3N

R217.69-2020.0-25-06.3N

Артикул: 02709317

В наличии

В корзину

Описание

Характеристики

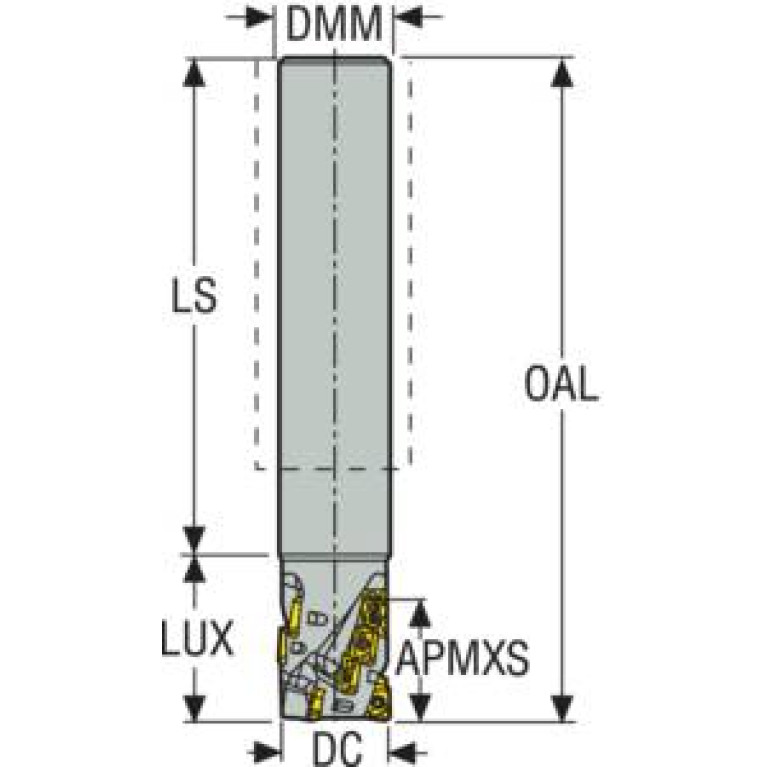

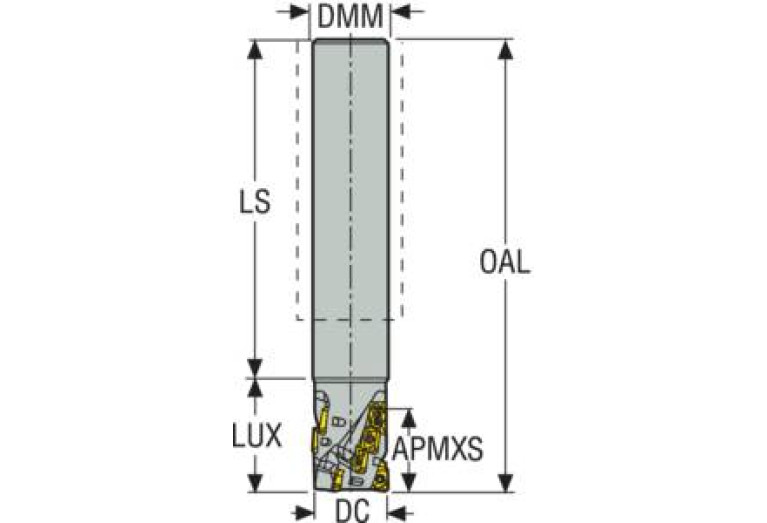

APMX Depth of cut maximum

25 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02000105

FamilyProducts

R217.69-2020.0-25-06.3N

GAMF Rake angle radial

-6.5 Degree

GAMP Rake angle axial

8 Degree

HAND Cutting direction

R - Right

ID Technical product number

02709317

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

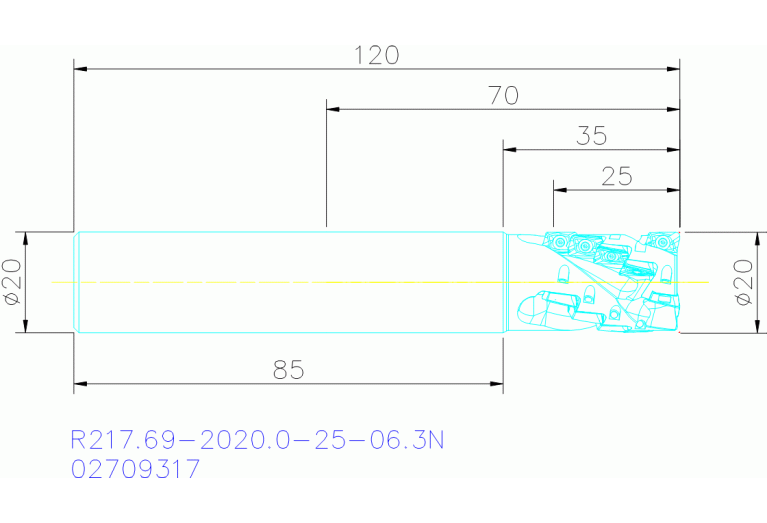

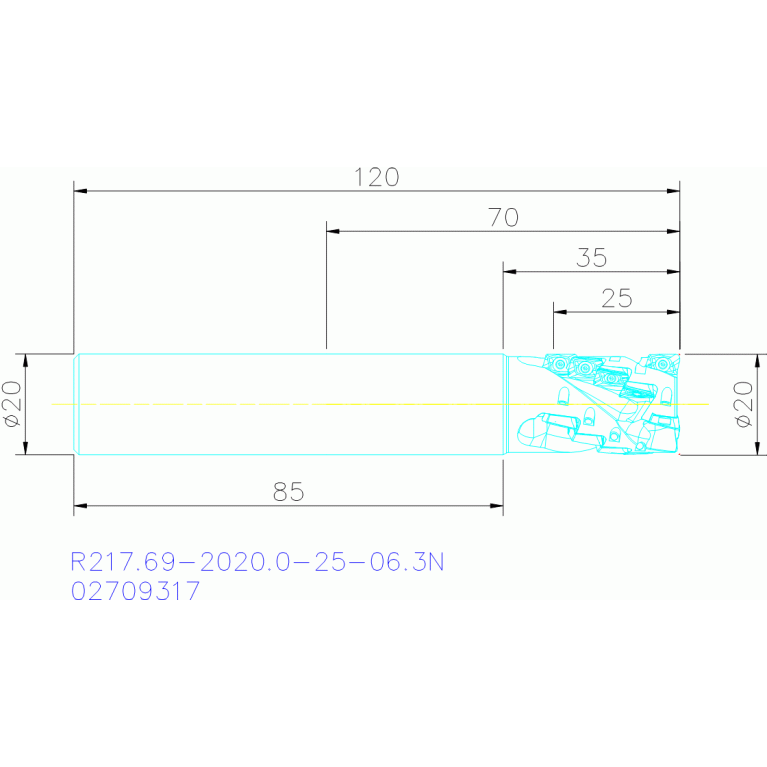

LF Functional length

120 mm

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-XO0602 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000105

LPR Protruding length

70 mm

LS Shank length

85 mm

LU Usable length

35 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R217.69-2020.0-25-06.3N

OAL Overall length

120 mm

RMPX Ramping angle maximum

2.5 Degree

RPMX Rotational speed maximum

44000 1/min

Working process

No working processes available

WT Weight of item

0.3 kg

ZEFP Peripheral effective cutting edge count
