Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R217.69-0814.RE-15-06.2N

R217.69-0814.RE-15-06.2N

Артикул: 02709297

В наличии

В корзину

Описание

Характеристики

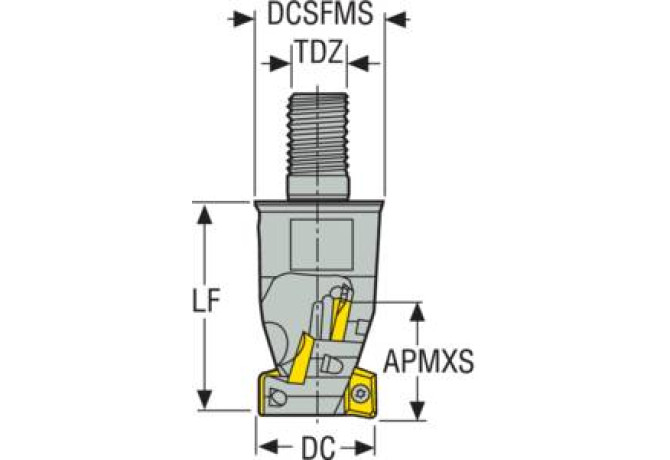

APMX Depth of cut maximum

15 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SCM00800105

FamilyProducts

R217.69-0814.RE-15-06.2N

GAMF Rake angle radial

-8 Degree

GAMP Rake angle axial

7.2 Degree

HAND Cutting direction

R - Right

ID Technical product number

02709297

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-XO0602 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SCM

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SCM00800105

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R217.69-0814.RE-15-06.2N

OAL Overall length

42.75 mm

RMPX Ramping angle maximum

5 Degree

RPMX Rotational speed maximum

51200 1/min

THSZMS Connection thread nominal size machine side

Working process

No working processes available

WT Weight of item

0.024 kg

ZEFP Peripheral effective cutting edge count
