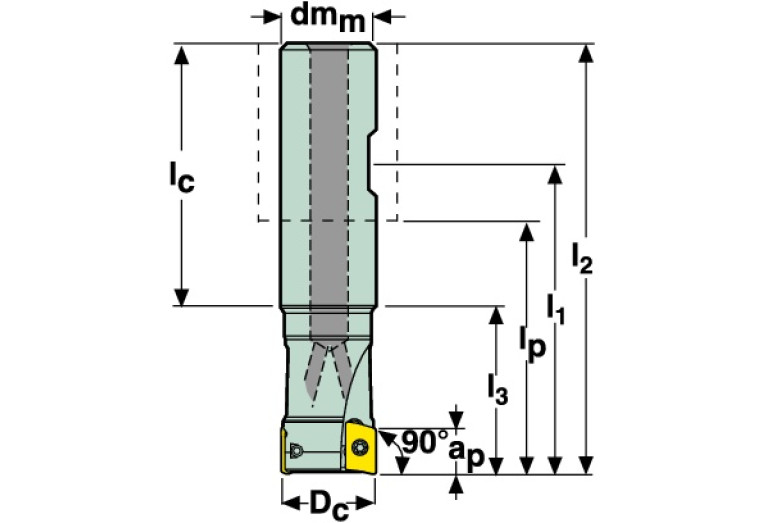

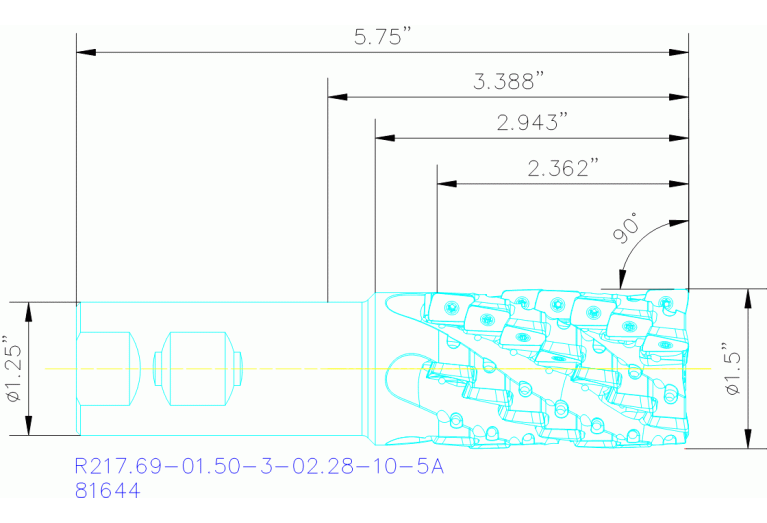

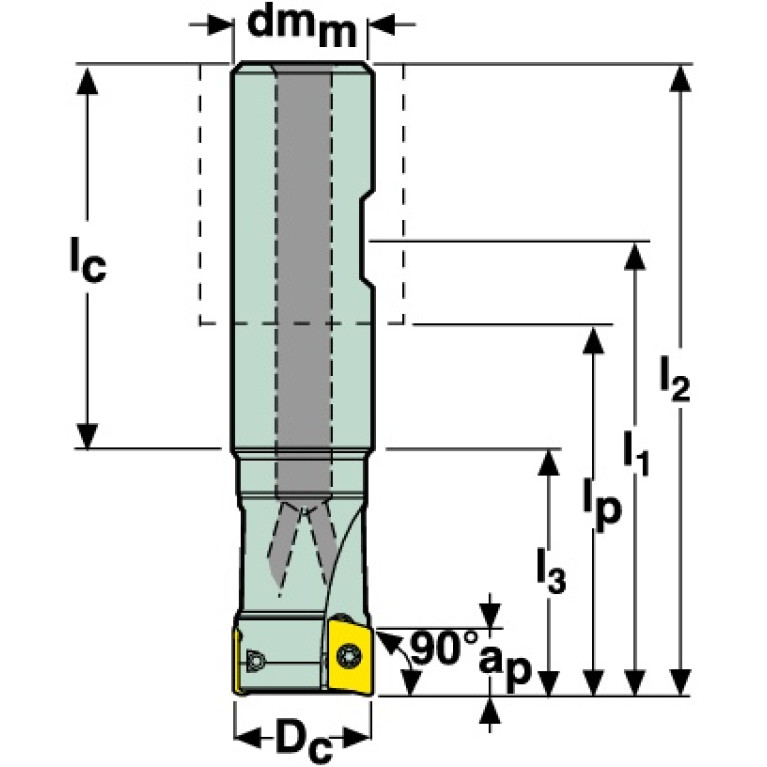

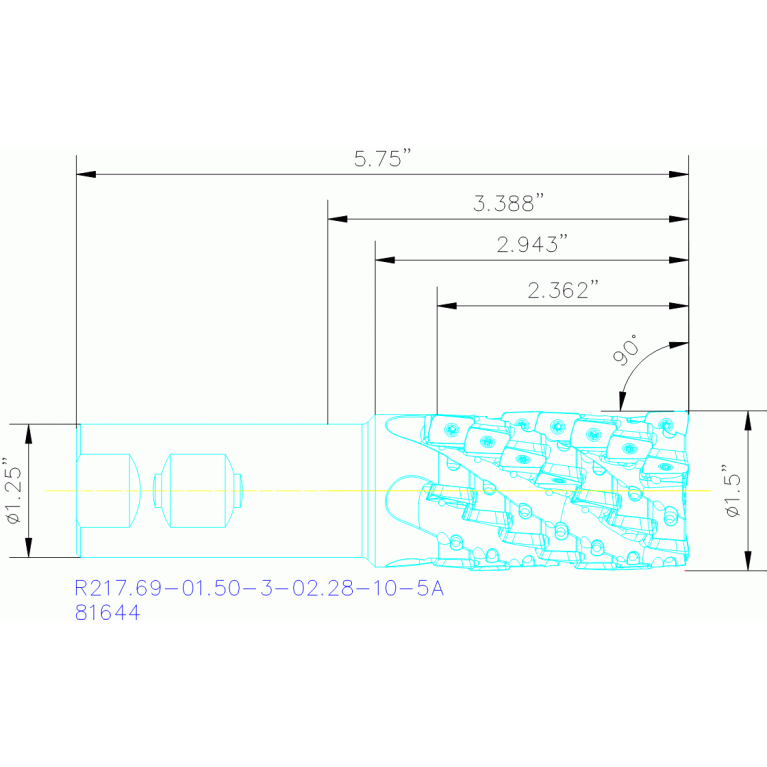

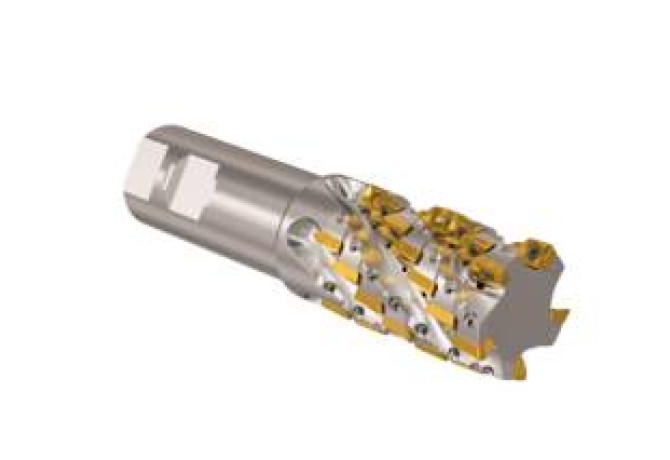

Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

R217.69-01.50-3-02.28-10-5A

Seco

Артикул: 02865306

В наличии

В корзину

Описание

Характеристики

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

15 Degree

A2B Clearance angle major Pos. B

15 Degree

APMX Depth of cut maximum

60 mm

B1A Cutting edge length Pos. A

9.7 mm

B1B Cutting edge length Pos. B

10 mm

BLDA Tool style code Position A

99

BLDB Tool style code Position B

99

C1A Insert thickness Pos. A

3.8 mm

C1B Insert thickness Pos. B

3.77 mm

CCONMS Connection count machine side

2

CICT Cutting item count

35

COMPC Company code

SO - SECO Tools

D1A Corner radius Pos. A

0.2 mm

D1B Corner radius Pos. B

0.4 mm

D6A Wiper edge length Pos. A

1.3 mm

D6B Wiper edge length Pos. B

1.08 mm

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

ZYL12501025

FamilyProducts

R217.69-01.50-3-02.28-10-5A

GAMF Rake angle radial

-8.5 Degree

GAMP Rake angle axial

6 Degree

HAND Cutting direction

R - Right

ID Technical product number

02865306

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISO

ZYL10S1250h$06

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

XOEX10T304F

LOC-02 ISO

SO$$XO10T3**3RB****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SO-XO 10T308R

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

2 Inch

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03 ISO

ZYL10S1250h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501025

LPR Protruding length

88 mm

LS Shank length

68.1 mm

LU Usable length

88 mm

Name Identifying order number

R217.69-01.50-3-02.28-10-5A

OAL Overall length

146.05 mm

RMPX Ramping angle maximum

1.5 Degree

RPMX Rotational speed maximum

18600 1/min

Working process

No working processes available

WT Weight of item

0.8 kg

ZEFP Peripheral effective cutting edge count

5
