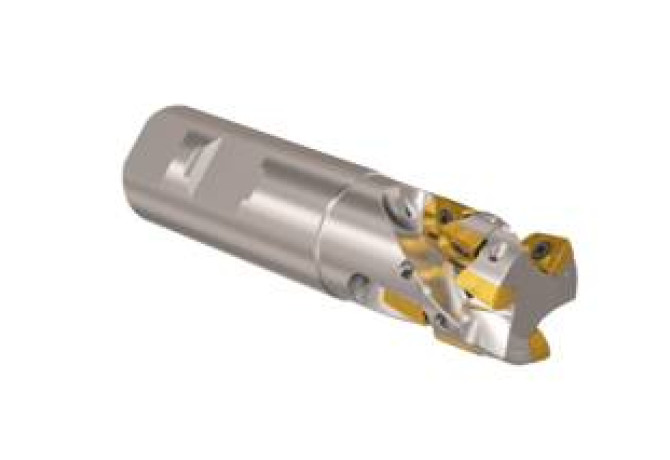

Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R217.69-01.00-3-01.00-10-3A

R217.69-01.00-3-01.00-10-3A

R217.69-01.00-3-01.00-10-3A R217.69-01.00-3-01.00-10-3A R217.69-01.00-3-01.00-10-3A R217.69-01.00-3-01.00-10-3A

R217.69-01.00-3-01.00-10-3A

Seco
Артикул: 02865300
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
26 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
3.8 mm
CCONMS Connection count machine side
2
CICT Cutting item count
9
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
1.3 mm
DC Cutting diameter
25.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL10001025
FamilyProducts
R217.69-01.00-3-01.00-10-3A
GAMF Rake angle radial
-7.5 Degree
GAMP Rake angle axial
7 Degree
HAND Cutting direction
R - Right
ID Technical product number
02865300
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL10S1000h$06
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 ISO
SO$$XO10T3**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-XO 10T308R
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
ZYL10S1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001025
LPR Protruding length
47.6 mm

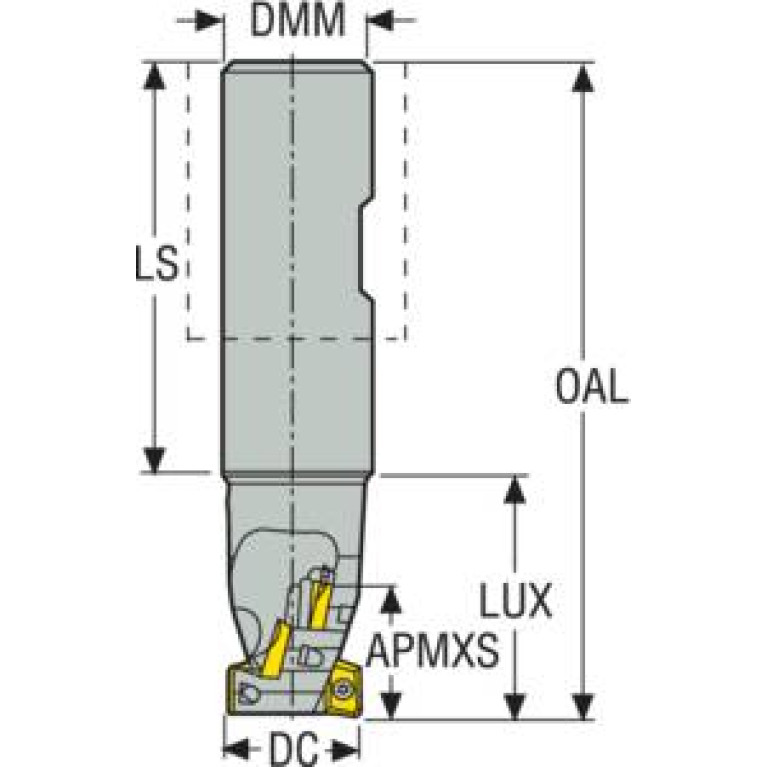

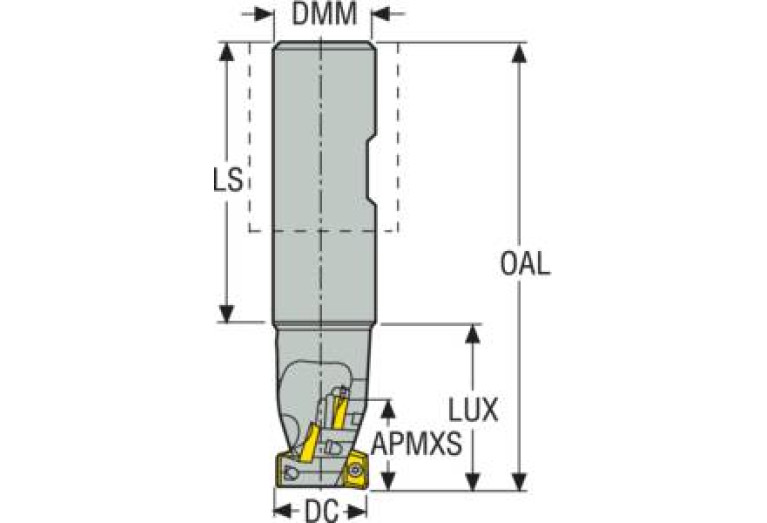

LS Shank length
57.97 mm
LU Usable length
43.63 mm
Name Identifying order number
R217.69-01.00-3-01.00-10-3A

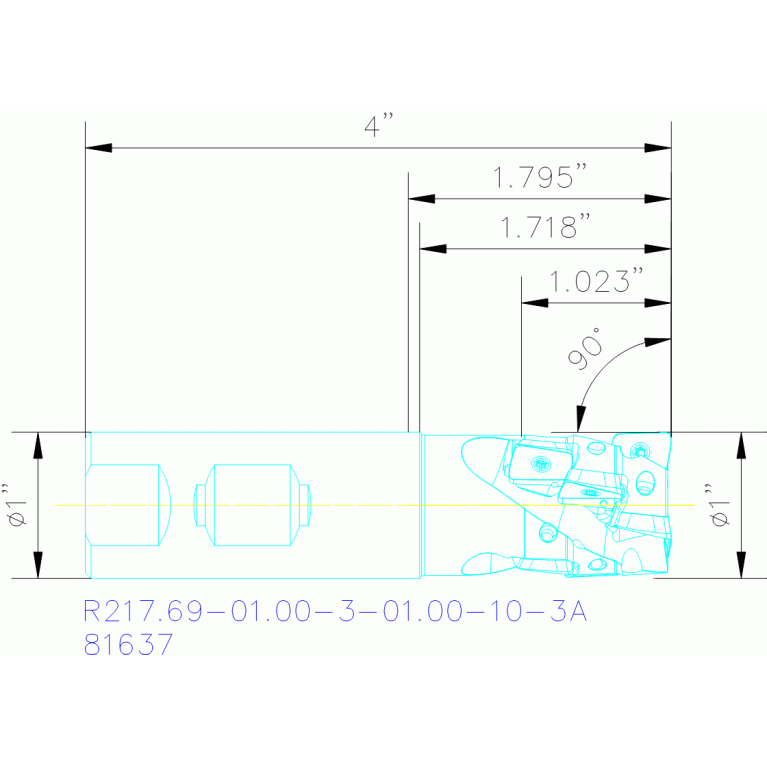

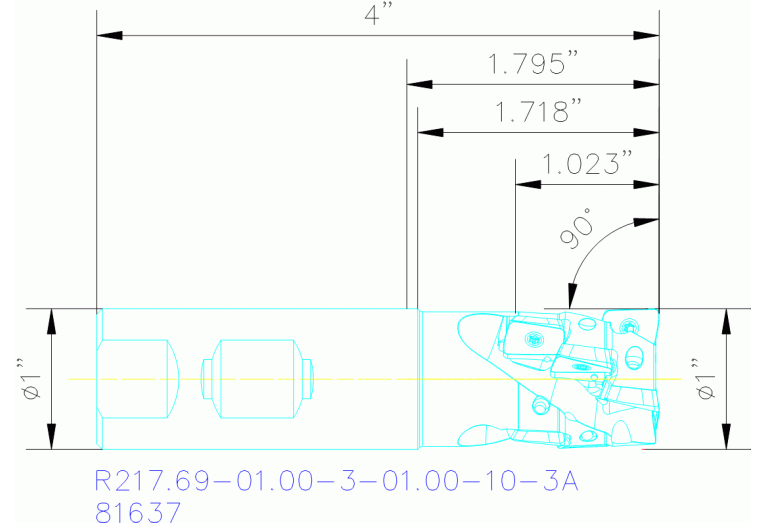

OAL Overall length
101.6 mm
RMPX Ramping angle maximum
3 Degree
RPMX Rotational speed maximum
23500 1/min
Working process
No working processes available
WT Weight of item
0.314 kg
ZEFP Peripheral effective cutting edge count
3
