Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R215.59-BT50050072-12.3K

R215.59-BT50050072-12.3K

Артикул: 00008459

В наличии

В корзину

Описание

Характеристики

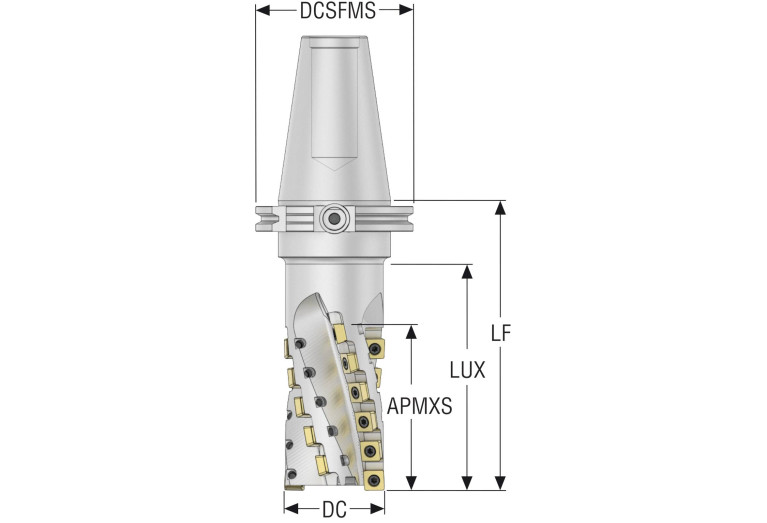

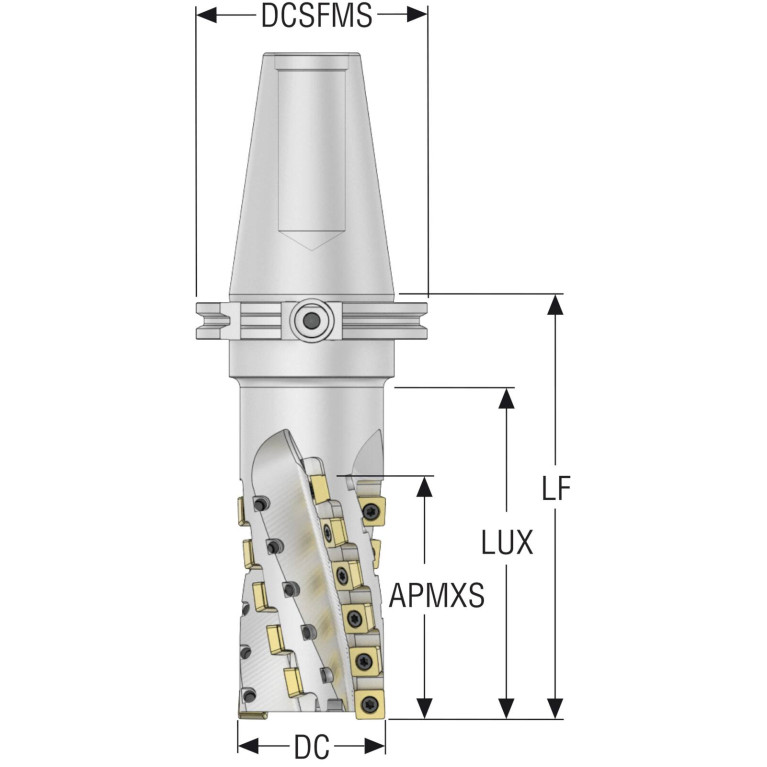

APMX Depth of cut maximum

73 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SKG05002285

FamilyProducts

R215.59-BT50050072-12.3K

GAMF Rake angle radial

-7 Degree

GAMP Rake angle axial

-14 Degree

HAND Cutting direction

R - Right

ID Technical product number

00008459

Interface codes

J6 /

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LOC-02 BI Block index

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-AC1506 3R

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05002285

LU Usable length

103 mm

MILTTY Mill tool type ISO

J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°

Name Identifying order number

R215.59-BT50050072-12.3K

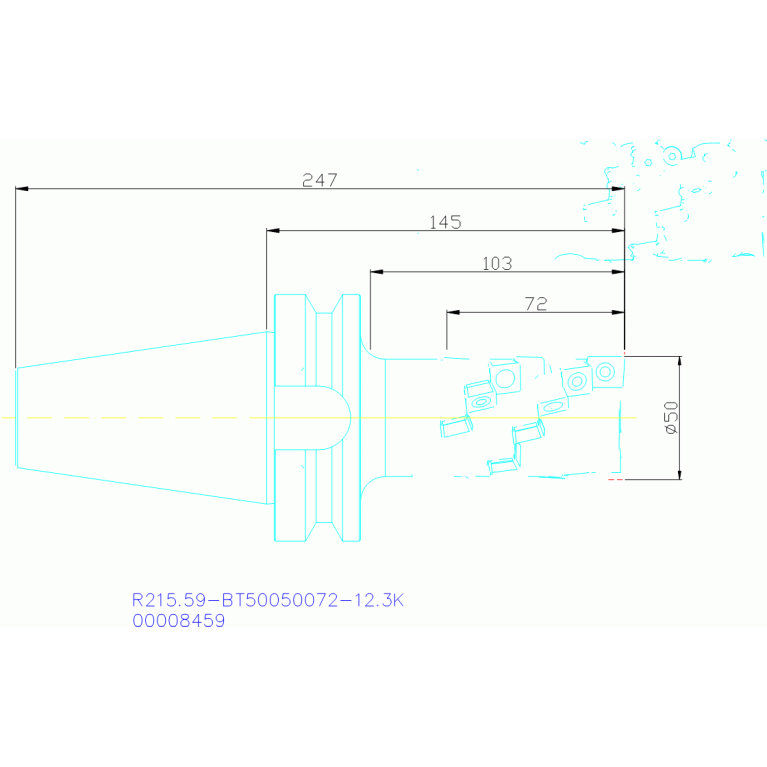

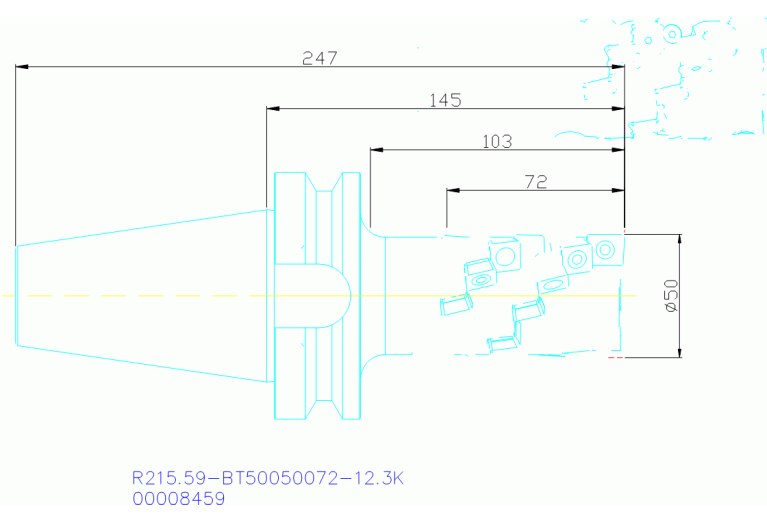

OAL Overall length

247 mm

RPMX Rotational speed maximum

8300 1/min

Working process

No working processes available

WT Weight of item

4.84 kg

ZEFP Peripheral effective cutting edge count
