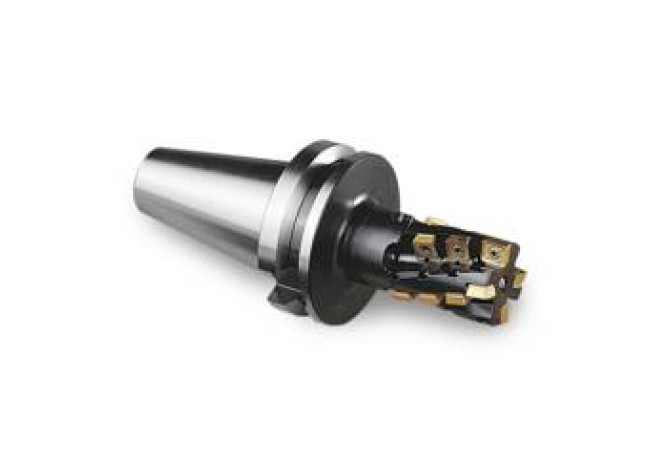

Главная Каталог продукции Toolunited 17 307-07 - Non-centre cutting multiple rows end mill R215.59-BT50.050.059-12.4A

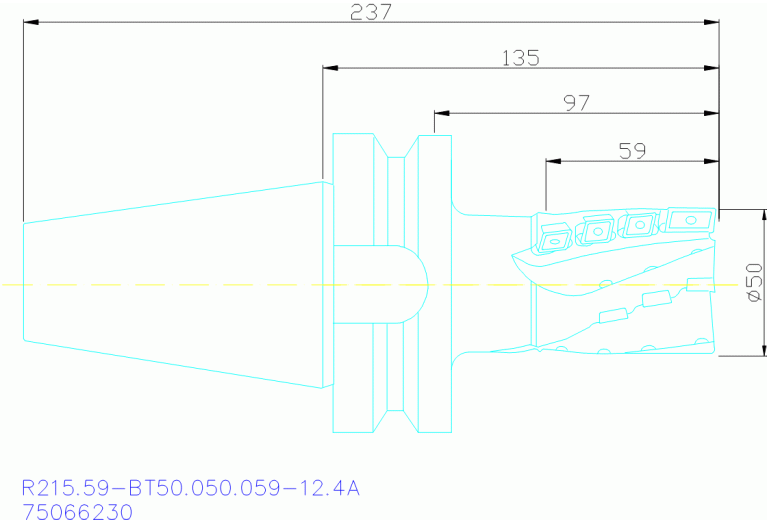

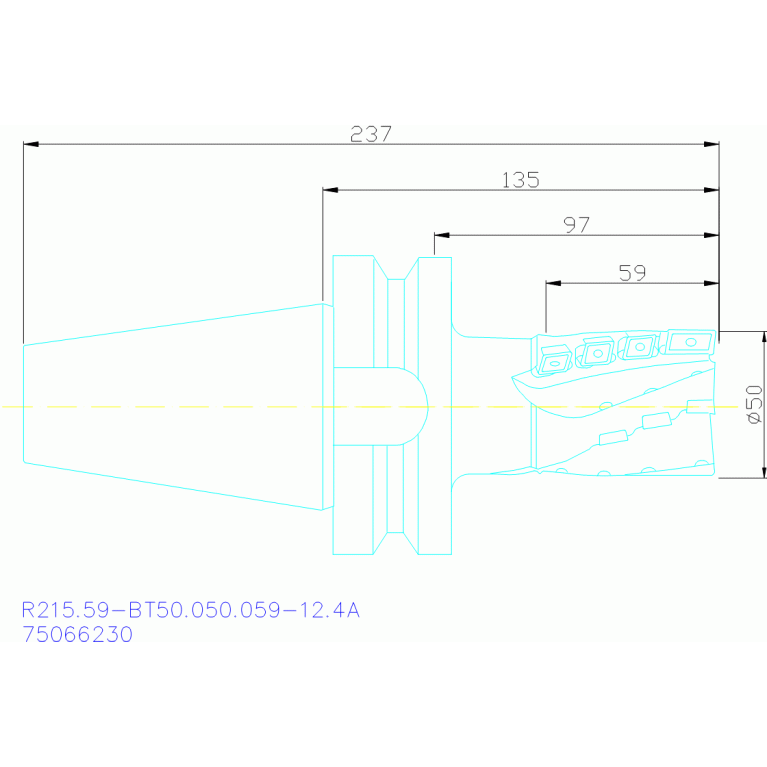

R215.59-BT50.050.059-12.4A

Артикул: 75066230

В наличии

В корзину

Описание

Характеристики

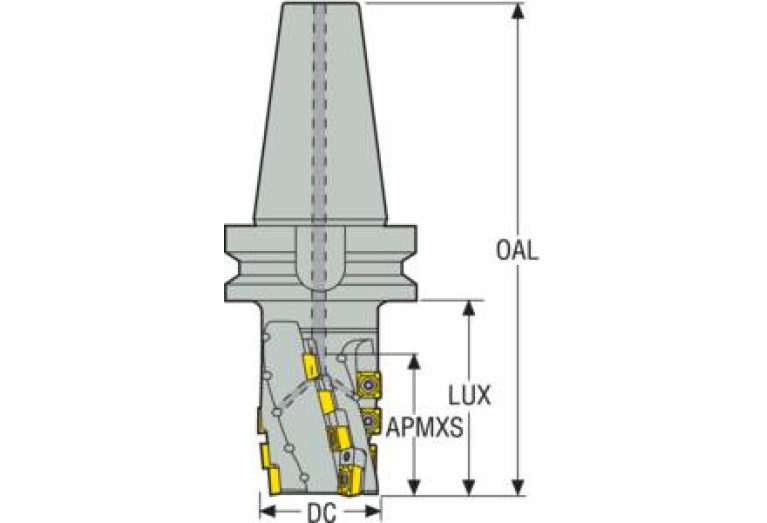

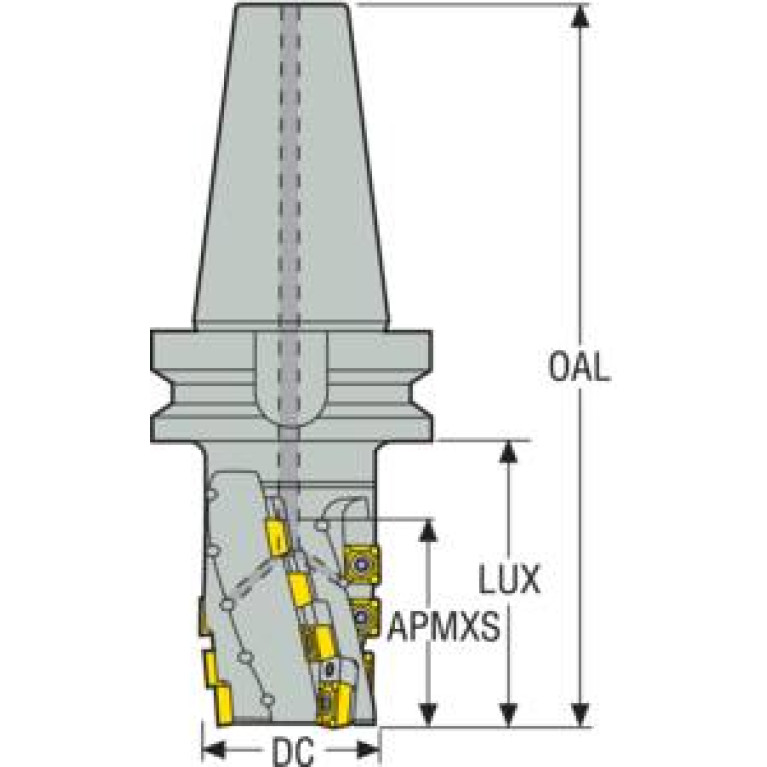

APMX Depth of cut maximum

59 mm

CCONMS Connection count machine side

CICT Cutting item count

COMPC Company code

SO - SECO Tools

DC Cutting diameter

50 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

SKG05005185

FamilyProducts

R215.59-BT50.050.059-12.4A

GAMF Rake angle radial

-8 Degree

GAMP Rake angle axial

-14 Degree

HAND Cutting direction

R - Right

ID Technical product number

75066230

Interface codes

J6 / J61

ISO

SKG51C0500$$$$

ISYC Subclass

307-07 - Non-centre cutting multiple rows end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

135 mm

LOC-02 BI Block index

LOC-02 MIID Master insert identification

SC3-120612

LOC-02 ISO

SO$$SC1206**3RB****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SC3-120612

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SKG steep taper shank

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SKG51C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SKG05005185

LPR Protruding length

135 mm

LU Usable length

97 mm

Name Identifying order number

R215.59-BT50.050.059-12.4A

NameAnsi Identifying order number inch alternative

R215.59BT50.050.05912.

OAL Overall length

237 mm

RPMX Rotational speed maximum

8300 1/min

Working process

No working processes available

WT Weight of item

4.44 kg

ZEFP Peripheral effective cutting edge count
