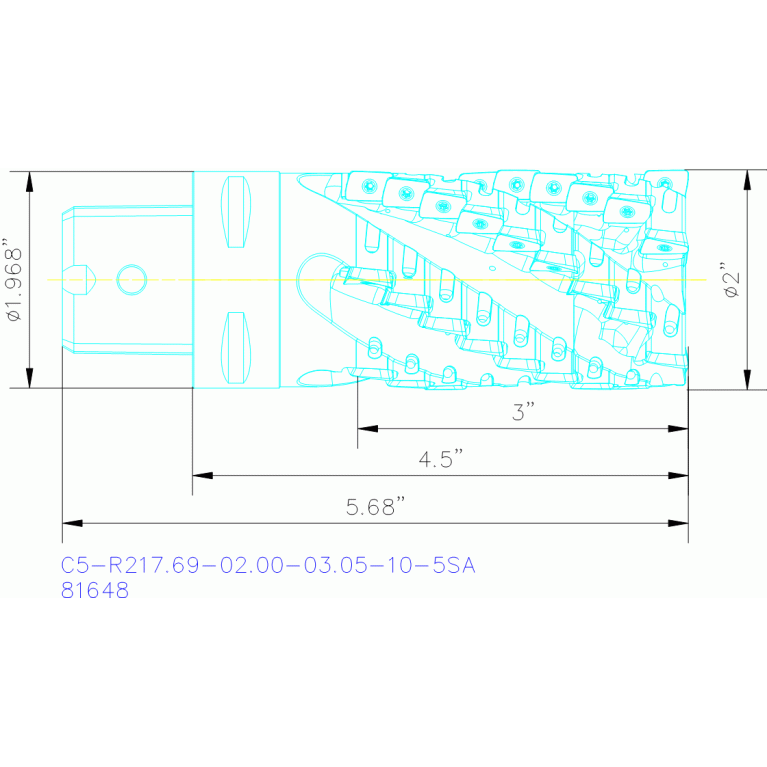

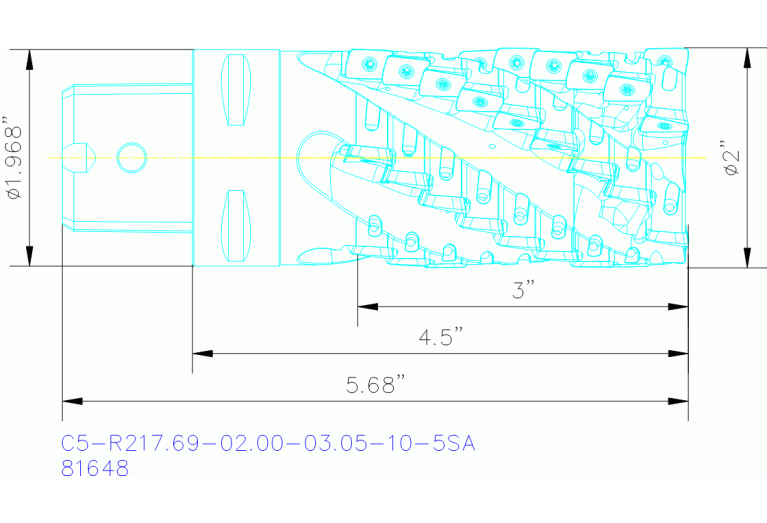

C5-R217.69-02.00-03.05-10-5SA

C5-R217.69-02.00-03.05-10-5SA C5-R217.69-02.00-03.05-10-5SA C5-R217.69-02.00-03.05-10-5SA C5-R217.69-02.00-03.05-10-5SA

C5-R217.69-02.00-03.05-10-5SA

Seco
Артикул: 02865310
В наличии
В корзину
Описание
Характеристики

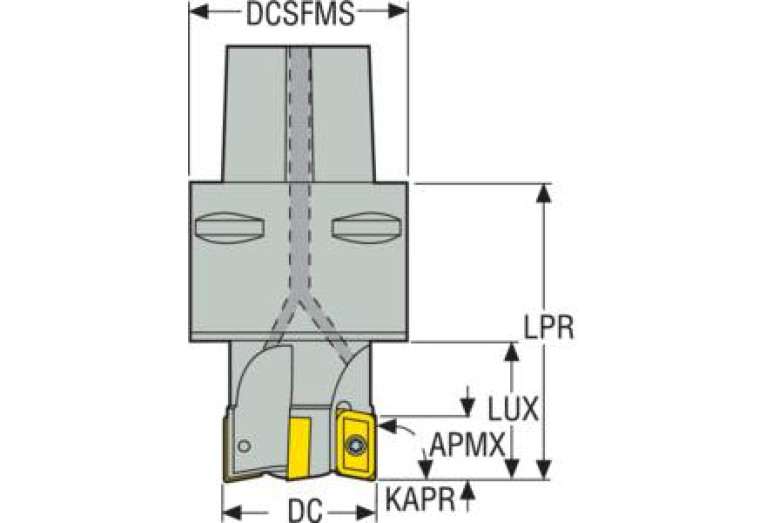

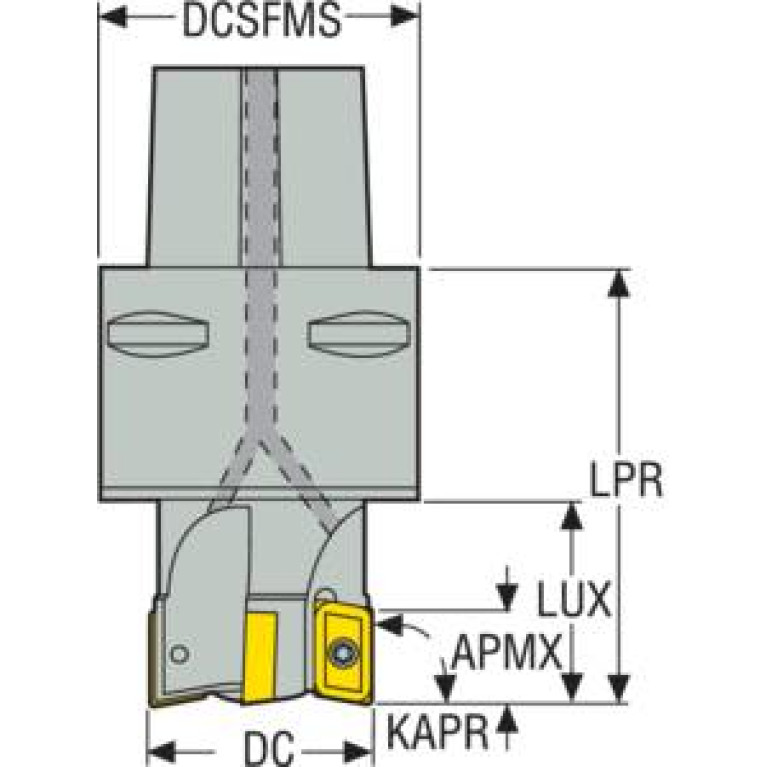

A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
15 Degree
A2B Clearance angle major Pos. B
15 Degree
APMX Depth of cut maximum
77.13 mm
B1A Cutting edge length Pos. A
9.7 mm
B1B Cutting edge length Pos. B
10 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
3.8 mm
C1B Insert thickness Pos. B
3.77 mm
CCONMS Connection count machine side
2
CICT Cutting item count
45
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.2 mm
D1B Corner radius Pos. B
0.4 mm
D6A Wiper edge length Pos. A
1.3 mm
D6B Wiper edge length Pos. B
1.08 mm
DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185
FamilyProducts
C5-R217.69-02.00-03.05-10-5SA
GAMF Rake angle radial
-7 Degree
GAMP Rake angle axial
6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02865310
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
CCS01C0500$$$$
ISYC Subclass
307-07 - Non-centre cutting multiple rows end mill
KAPR Tool cutting edge angle
90 Degree
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
XOEX10T304F
LOC-02 ISO
SO$$XO10T3**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-XO 10T308R
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LU Usable length
114.3 mm
Name Identifying order number
C5-R217.69-02.00-03.05-10-5SA
OAL Overall length
144.3 mm
RMPX Ramping angle maximum
1 Degree
RPMX Rotational speed maximum
16600 1/min
Working process
No working processes available
WT Weight of item
1.4 kg
ZEFP Peripheral effective cutting edge count
5
