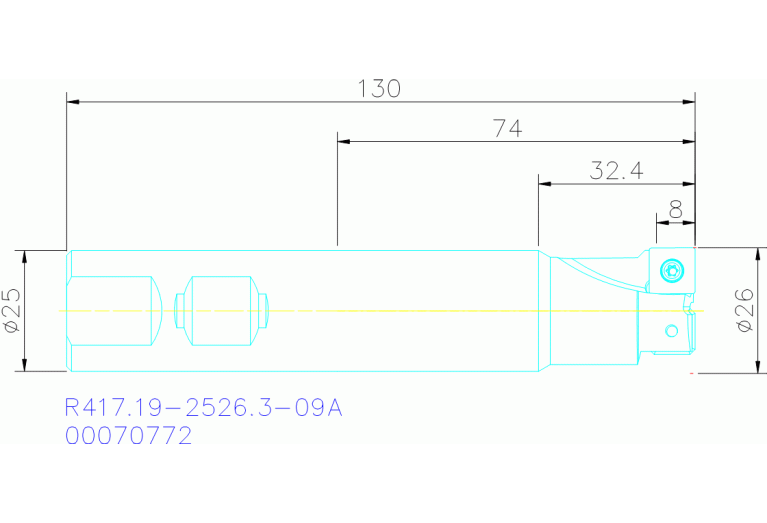

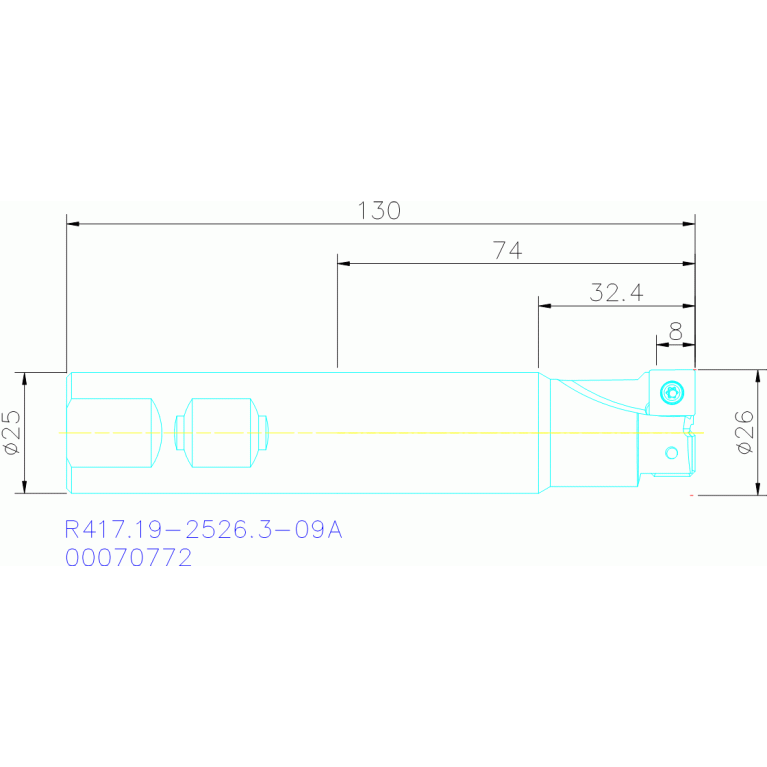

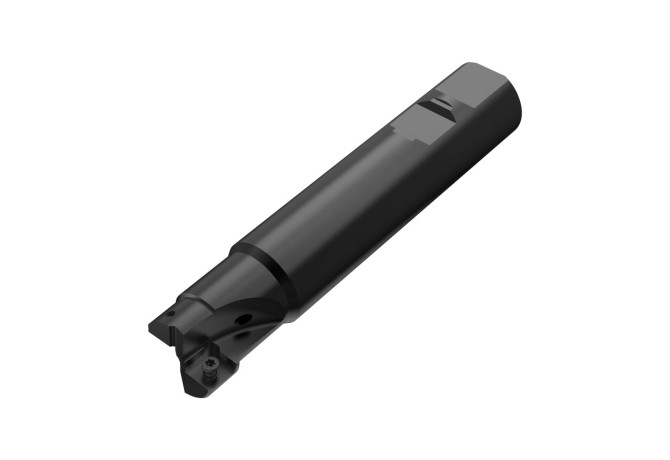

R417.19-2526.3-09A

R417.19-2526.3-09A R417.19-2526.3-09A R417.19-2526.3-09A R417.19-2526.3-09A

R417.19-2526.3-09A

Seco
Артикул: 00070772
В наличии
В корзину
Описание
Характеристики

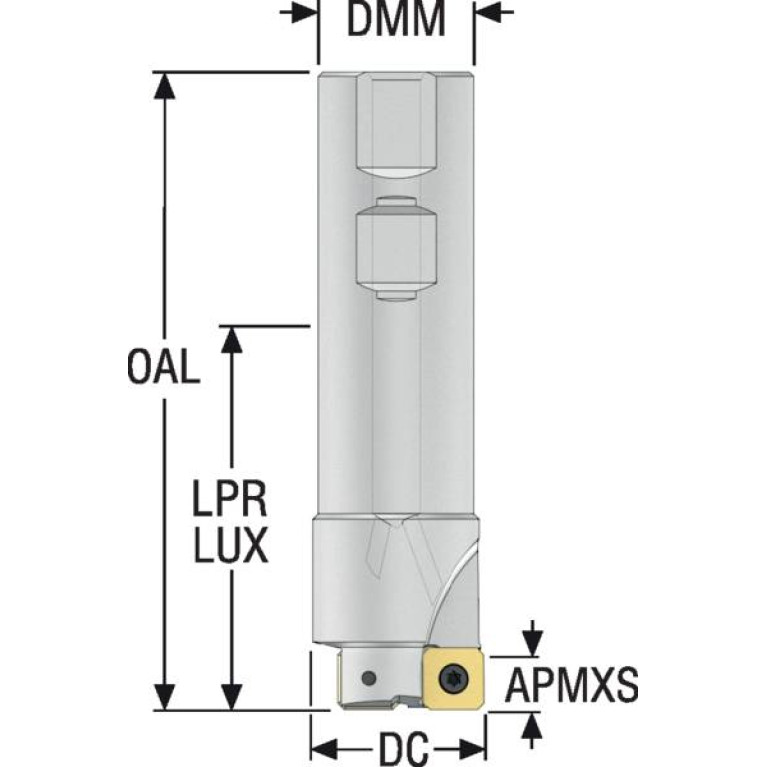

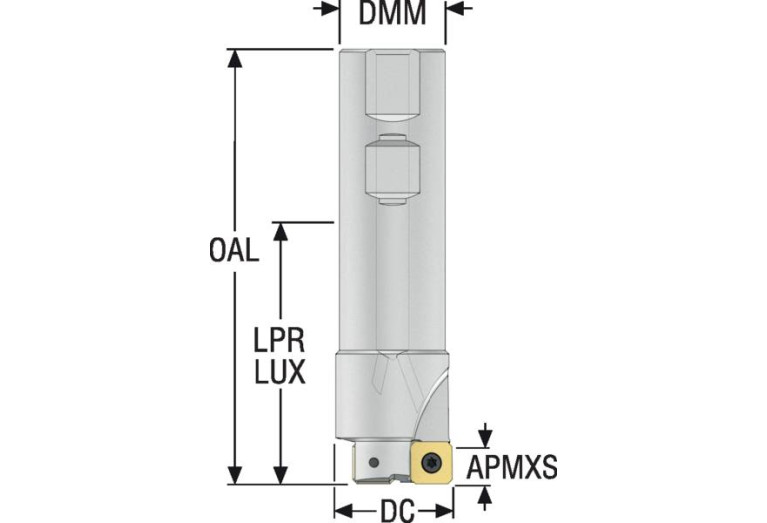

APMX Depth of cut maximum
8 mm
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
26 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02501015
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R417.19-2526.3-09A
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
5 Degree
HAND Cutting direction
R - Right
ID Technical product number
00070772
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
74 mm
LS Shank length
98 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
R417.19-2526.3-09A
OAL Overall length
130 mm
RPMX Rotational speed maximum
21200 1/min
Working process
No working processes available
WT Weight of item
0.431 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
