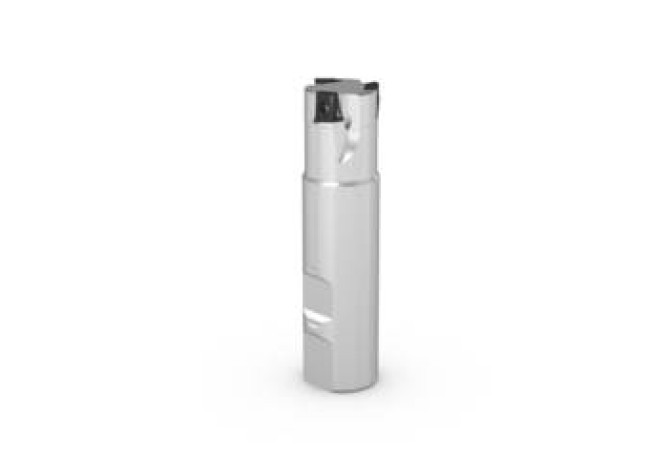

Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill R217.94-01.25-3-08-5A

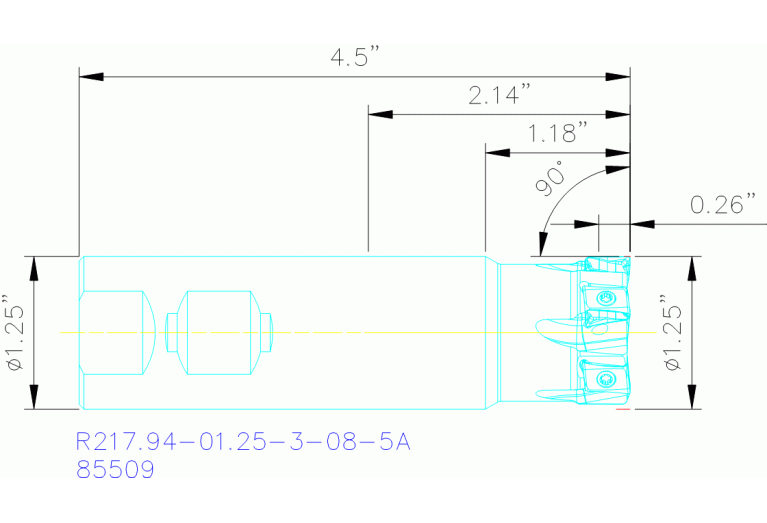

R217.94-01.25-3-08-5A

R217.94-01.25-3-08-5A R217.94-01.25-3-08-5A R217.94-01.25-3-08-5A R217.94-01.25-3-08-5A

R217.94-01.25-3-08-5A

Seco
Артикул: 02887528
В наличии
В корзину
Описание
Характеристики

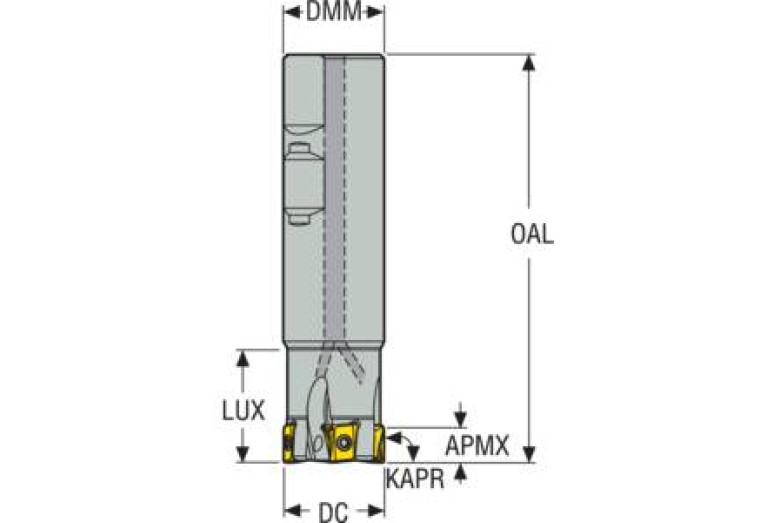

A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
8 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
6.67 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.4 mm
D6A Wiper edge length Pos. A
1.29 mm
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL12501025
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R217.94-01.25-3-08-5A
GAMF Rake angle radial
-24.5 Degree
GAMP Rake angle axial
-5.25 Degree
HAND Cutting direction
R - Right
ID Technical product number
02887528
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL10S1250h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501025
LPR Protruding length
54.3 mm
LS Shank length
84.3 mm
LU Usable length
28.2 mm
Name Identifying order number
R217.94-01.25-3-08-5A
OAL Overall length
114.3 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
14600 1/min
Working process
No working processes available
WT Weight of item
0.7 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
