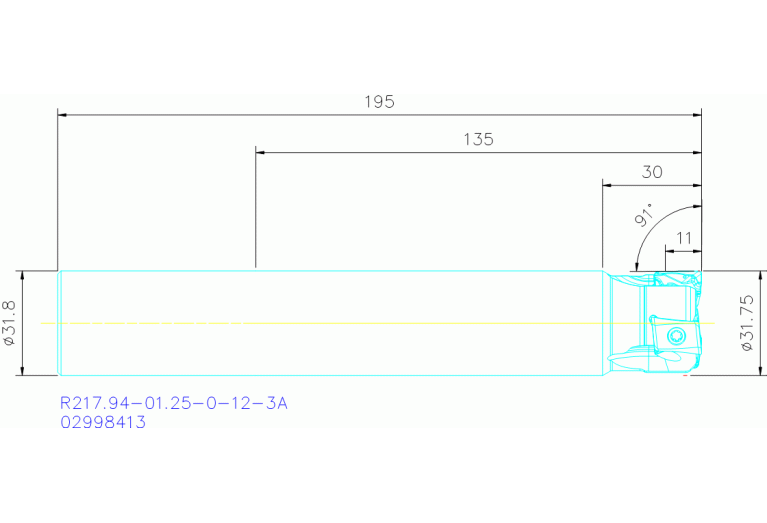

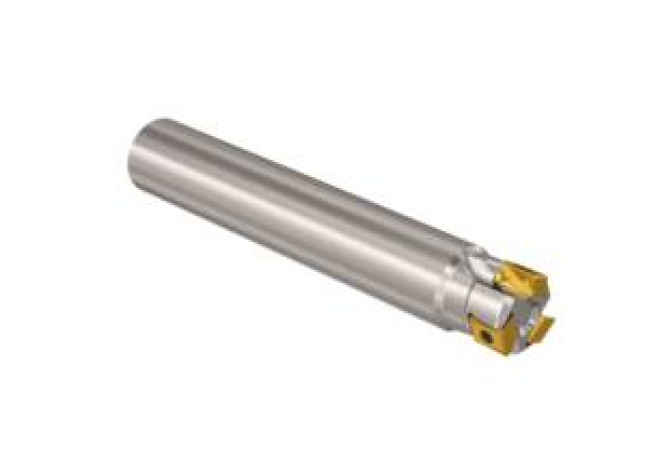

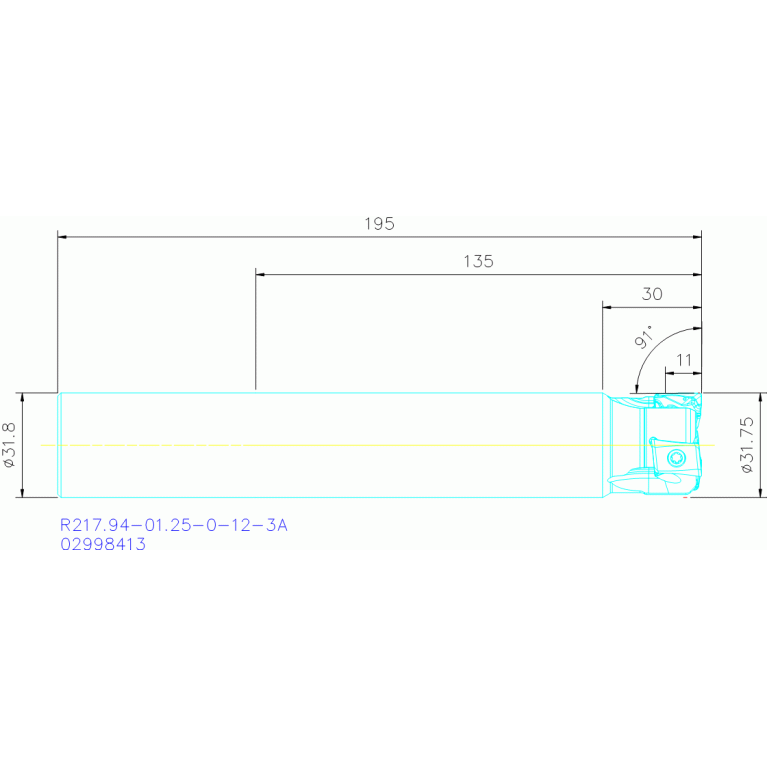

R217.94-01.25-0-12-3A
R217.94-01.25-0-12-3A
Артикул:
02998413
В наличии
Характеристики

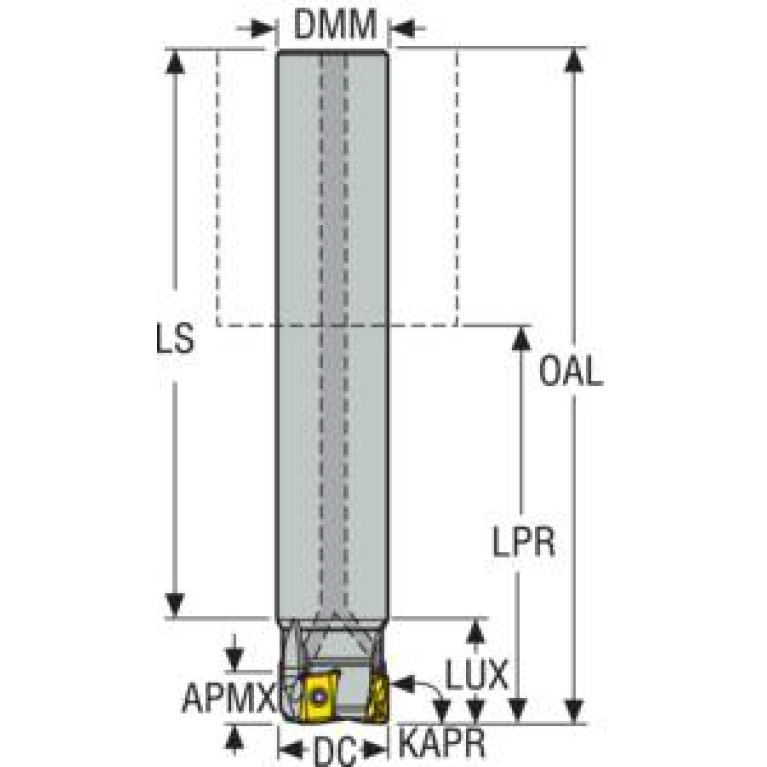

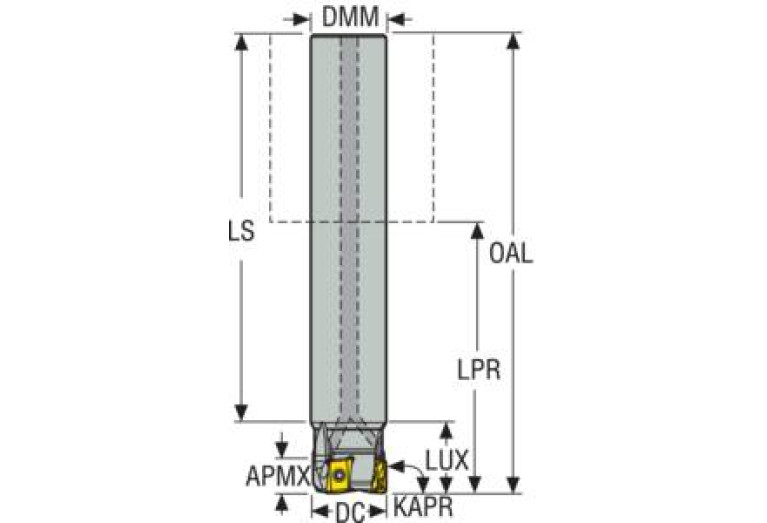

A1A Cutting edge angle major Pos. A
90 Degree
APMX Depth of cut maximum
12 mm
BLDA Tool style code Position A
4
C1A Insert thickness Pos. A
10.26 mm
CCONMS Connection count machine side
2
CICT Cutting item count
3
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
2.47 mm
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL12500125
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
R217.94-01.25-0-12-3A
GAMF Rake angle radial
-24 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02998413
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL01S1250h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
195 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL01S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12500125
LPR Protruding length
135 mm
LS Shank length
165 mm
LU Usable length
30 mm
Name Identifying order number
R217.94-01.25-0-12-3A
OAL Overall length
195 mm
RMPX Ramping angle maximum
0 Degree
RPMX Rotational speed maximum
12400 1/min
Working process
No working processes available
WT Weight of item
1.07 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
