Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill R217.69-01.25-3-18-2AN

R217.69-01.25-3-18-2AN

R217.69-01.25-3-18-2AN R217.69-01.25-3-18-2AN R217.69-01.25-3-18-2AN R217.69-01.25-3-18-2AN

R217.69-01.25-3-18-2AN

Seco
Артикул: 02694943
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
17 mm
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
6.4 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
COMPC Company code
SO - SECO Tools
D6A Wiper edge length Pos. A
2.4 mm
DC Cutting diameter
31.75 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
ZYL12501025
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.69-01.25-3-18-2AN
GAMF Rake angle radial
-9.7 Degree
GAMP Rake angle axial
4.7 Degree
HAND Cutting direction
R - Right
ID Technical product number
02694943
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
ZYL10S1250h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1250
LOC-03 DCONMS Diameter
31.75 mm
LOC-03 ISO
ZYL10S1250h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL12501025
LPR Protruding length
50 mm

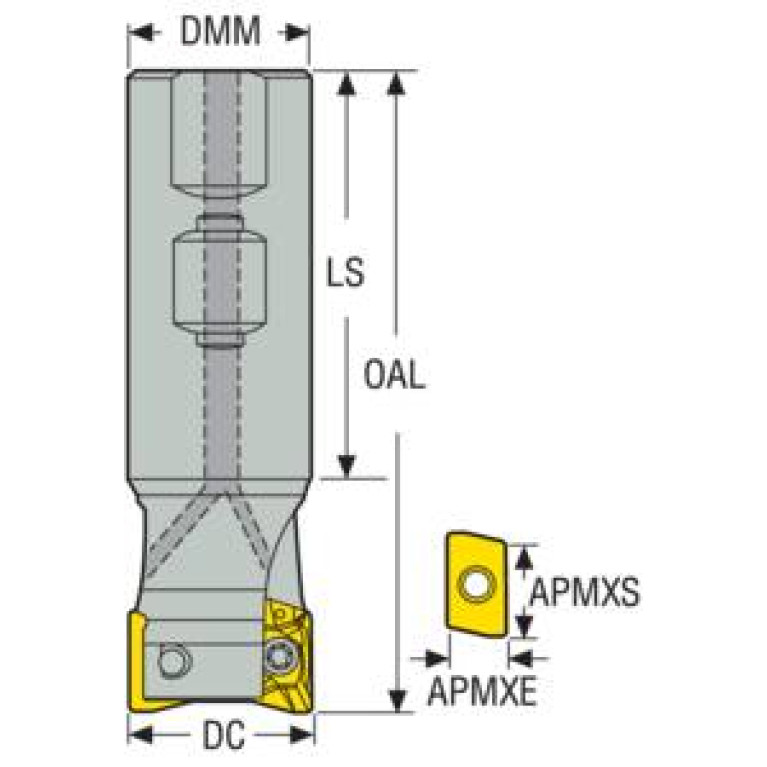

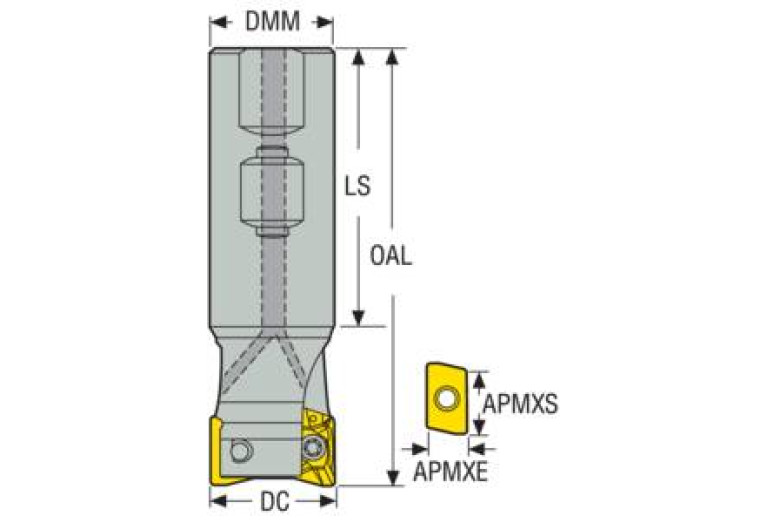

LS Shank length
70 mm
LU Usable length
40 mm
Name Identifying order number
R217.69-01.25-3-18-2AN

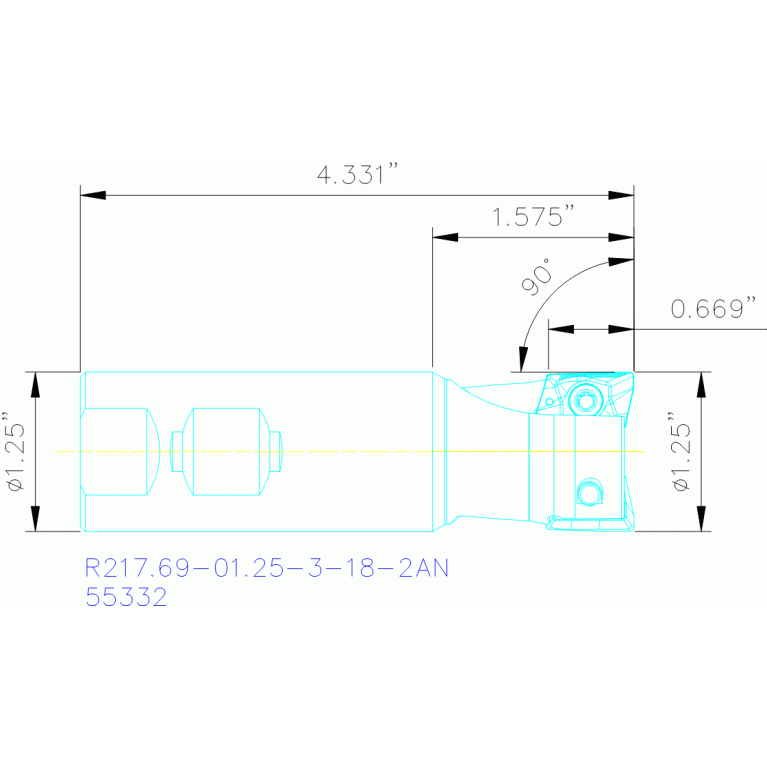

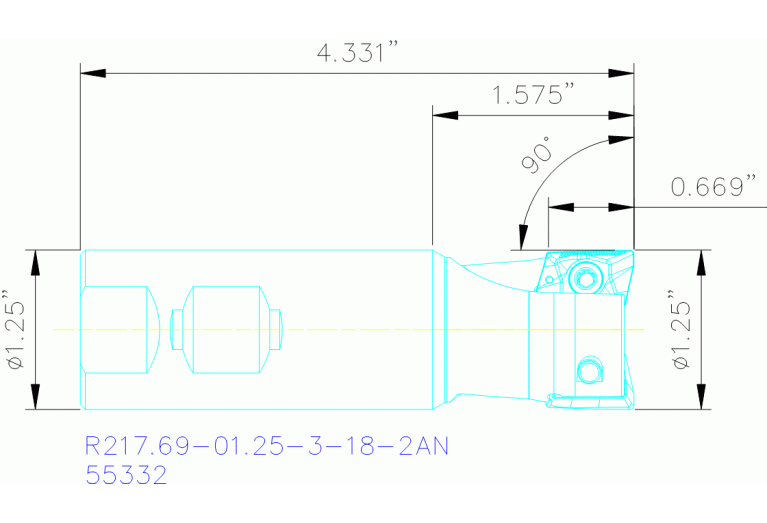

OAL Overall length
110 mm
RMPX Ramping angle maximum
7 Degree
RPMX Rotational speed maximum
11100 1/min
Working process
No working processes available
WT Weight of item
0.45 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
