Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill R217.21-1.50-0-R160.3HA

R217.21-1.50-0-R160.3HA

R217.21-1.50-0-R160.3HA R217.21-1.50-0-R160.3HA R217.21-1.50-0-R160.3HA

R217.21-1.50-0-R160.3HA

Seco
Артикул: 02553733
В наличии
В корзину
Описание
Характеристики

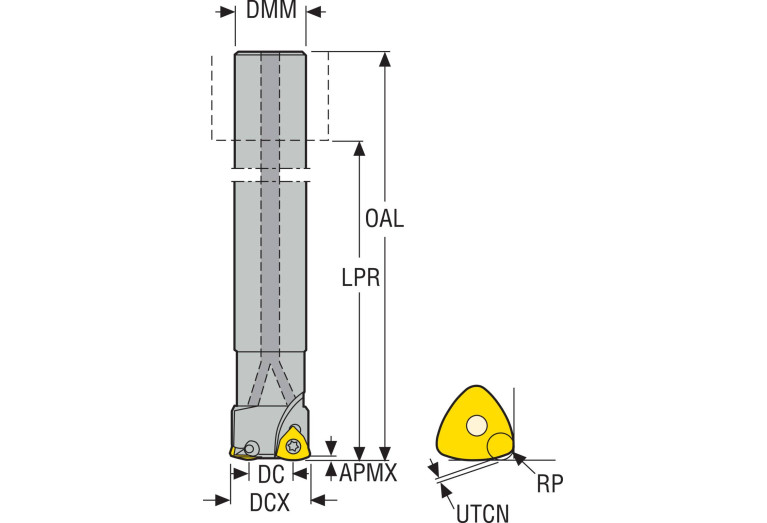

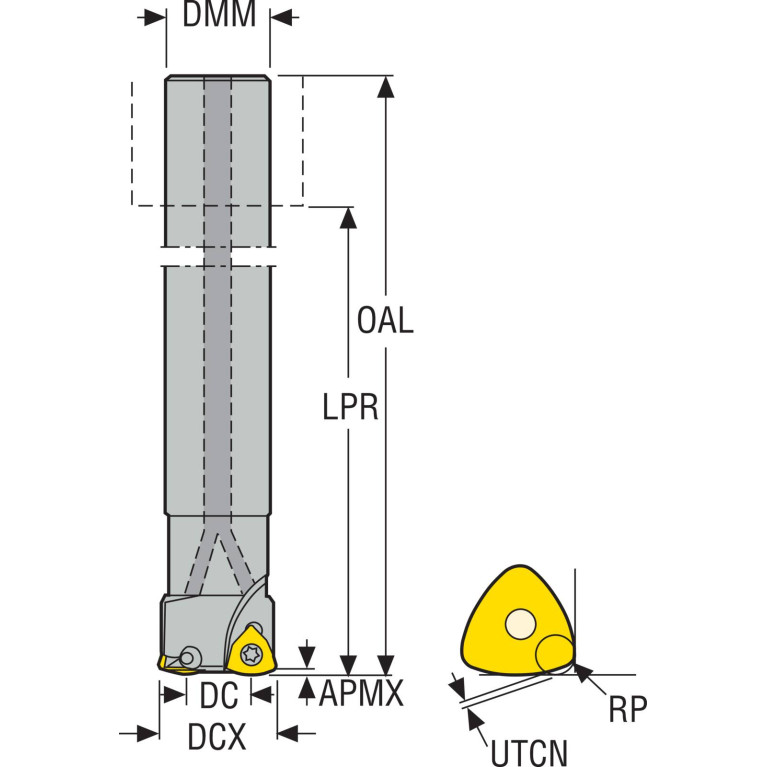

APMX Depth of cut maximum
2.02 mm
CCONMS Connection count machine side
1
CICT Cutting item count
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
15.01 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL15000135
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
R217.21-1.50-0-R160.3HA
GAMF Rake angle radial
-5 Degree
GAMP Rake angle axial
6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02553733
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LF Functional length
203.2 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL15000135
LPR Protruding length
134.87 mm
LS Shank length
150 mm
LU Usable length
53 mm
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number

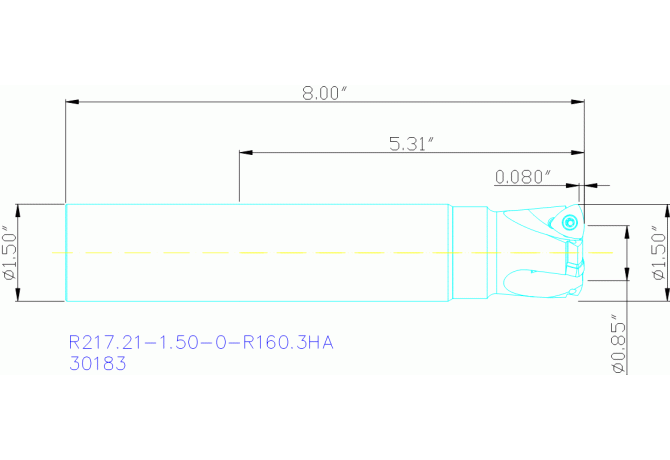

R217.21-1.50-0-R160.3HA
OAL Overall length
203.2 mm
RPMX Rotational speed maximum
17600 1/min
Working process
No working processes available
WT Weight of item
1.54 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
