Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill P290 EPW D20-2-M10-12

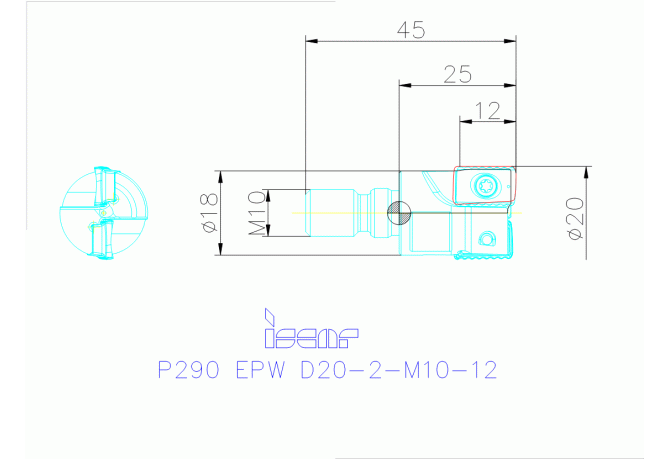

P290 EPW D20-2-M10-12

Артикул: 3181274

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

20 mm

DCP Data chip provision

0 - Without data chip

DIN

SAI01000285

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Endmills with FLEXFIT Threaded Adaptation Carrying 12 and 18 mm Long Edged Inserts

HAND Cutting direction

R - Right

ID Technical product number

3181274

Interface codes

J6 / J61

ISO

SAI02C0100$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

18 mm

LOC-03 ISO

SAI02C0100$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01000285

Name Identifying order number

P290 EPW D20-2-M10-12

OAL Overall length

45 mm

RMPX Ramping angle maximum

2 Degree

THSZMS Connection thread nominal size machine side

M10

Working process

No working processes available

WT Weight of item

0.04 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
