Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill M1D100E1802C100L800

M1D100E1802C100L800

M1D100E1802C100L800 M1D100E1802C100L800

M1D100E1802C100L800

Kennametal
Артикул: 2267534
В наличии
В корзину
Описание
Характеристики

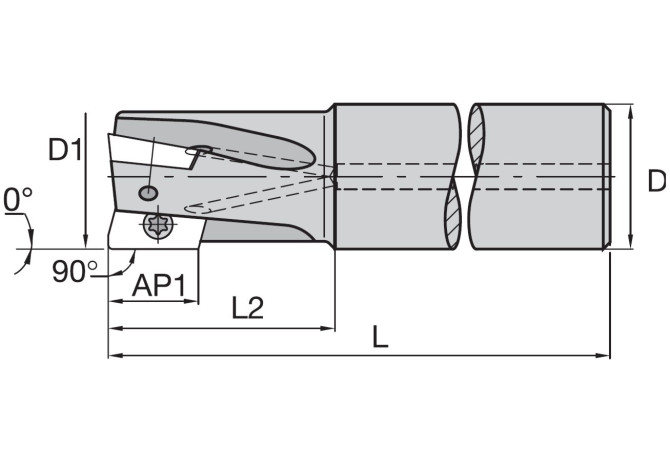

APMX Depth of cut maximum
18.034 mm
BD Body diameter
24.4094 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
KH - Kennametal
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
25.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
8/27/2014
DIN
ZYL10000135
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
90° Lead Mill - cyl. shank, long, inch
GAMF Rake angle radial
12 Degree
GAMP Rake angle axial
-8 Degree
HAND Cutting direction
R - Right
ID Technical product number
2267534
Interface codes
J6 /
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
203.2 mm
LH Head length
95.25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10000135
LPR Protruding length
95.25 mm
LS Shank length
107.95 mm
MILTTY Mill tool type ISO
E - Disc mill - one side cutting
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
M1D100E1802C100L800
OAL Overall length
203.2 mm
RMPX Ramping angle maximum
16.5 Degree
RPMX Rotational speed maximum
37000 1/min
Working process
No working processes available
WT Weight of item
0.6758 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
