Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill HM390 ETP D54-6-L50-C5-10

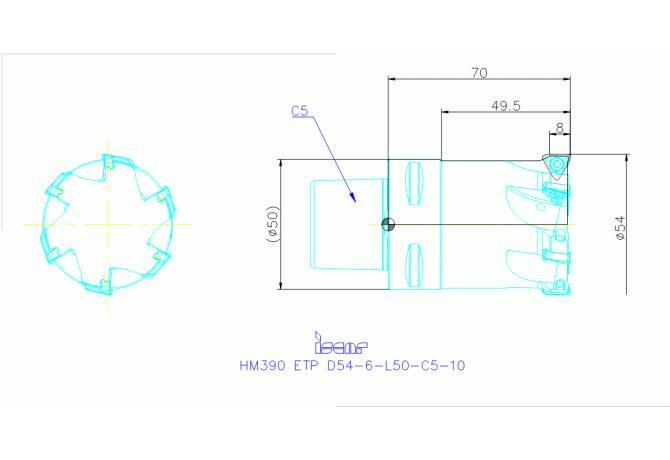

HM390 ETP D54-6-L50-C5-10

HM390 ETP D54-6-L50-C5-10

HM390 ETP D54-6-L50-C5-10

HM390 ETP D54-6-L50-C5-10

HM390 ETP D54-6-L50-C5-10

Iscar

Артикул: 3139871

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

60 Degree

A2A Clearance angle major Pos. A

11 Degree

APMX Depth of cut maximum

8 mm

B1A Cutting edge length Pos. A

12.99 mm

B3A Inscribed circle diameter Pos. A

7.5 mm

BLDA Tool style code Position A

1

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

3.85 mm

CCONMS Connection count machine side

2

CICT Cutting item count

6

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

D4A Cutting edge angle major Pos. A

90 Degree

D6A Wiper edge length Pos. A

0.7 mm

DC Cutting diameter

54 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

CCS05000295

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

6

FamilyProducts

90\S\0 Endmills Carrying HM390 TPKT 1003 Triangular Inserts with 3 Helical Cutti

HAND Cutting direction

R - Right

ID Technical product number

3139871

Interface codes

J6 / J61

ISO

CCS02C0500$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LF Functional length

70 mm

LOC-03 CCFMS Connection code form

02

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

CCS02C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000295

LPR Protruding length

70 mm

LU Usable length

49.5 mm

Name Identifying order number

HM390 ETP D54-6-L50-C5-10

OAL Overall length

100 mm

RMPX Ramping angle maximum

1 Degree

Working process

No working processes available

WT Weight of item

1.05 kg

ZEFF Face effective cutting edge count

6

ZEFP Peripheral effective cutting edge count

6
