Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill HM390 ETD D050-4-C32-19

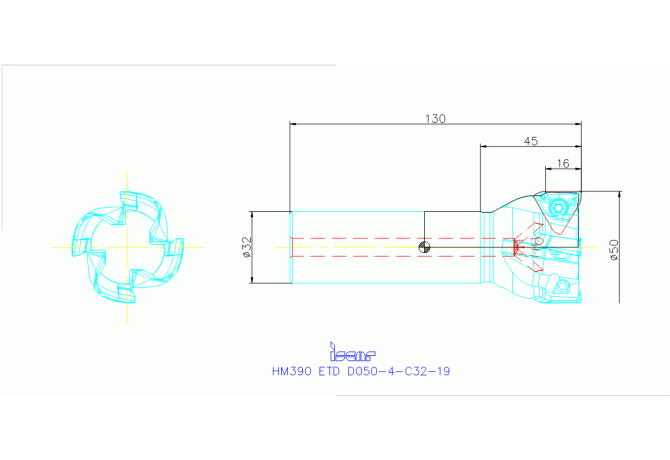

HM390 ETD D050-4-C32-19

HM390 ETD D050-4-C32-19 HM390 ETD D050-4-C32-19

HM390 ETD D050-4-C32-19

Iscar
Артикул: 3106717
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
16 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DIN
ZYL03200115
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
90\S\0 Endmills Carrying HM390 TDKT 1907 Triangular Inserts with 3 Helical Cutti
HAND Cutting direction
R - Right
ID Technical product number
3106717
Interface codes
J6 / J61
ISO
ZYL01G3200h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
130 mm
LH Head length
45 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G3200h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03200115
LPR Protruding length
45 mm
Name Identifying order number
HM390 ETD D050-4-C32-19
OAL Overall length
130 mm
RMPX Ramping angle maximum
1.5 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.81 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
