Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill HM390 ETC D18-2-W20-07

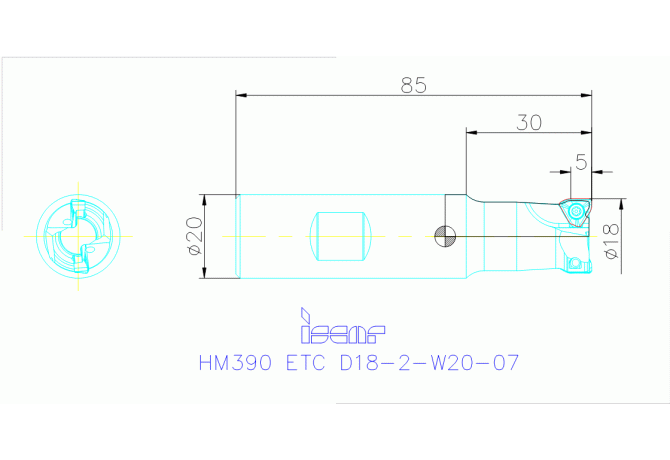

HM390 ETC D18-2-W20-07

HM390 ETC D18-2-W20-07

HM390 ETC D18-2-W20-07

HM390 ETC D18-2-W20-07

HM390 ETC D18-2-W20-07

Iscar

Артикул: 3107303

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

60 Degree

A2A Clearance angle major Pos. A

7 Degree

APMX Depth of cut maximum

5 mm

B1A Cutting edge length Pos. A

7.8 mm

B3A Inscribed circle diameter Pos. A

5.8 mm

BLDA Tool style code Position A

1

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

3.15 mm

CCONMS Connection count machine side

2

CICT Cutting item count

2

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.5 mm

D4A Cutting edge angle major Pos. A

90 Degree

D6A Wiper edge length Pos. A

0.8 mm

DC Cutting diameter

18 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

2/2/2018

DIN

ZYL02001015

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

2

FamilyProducts

90\S\0 Endmills Carrying HM390 TCKT 0703 Triangular Inserts with 3 Helical Cutti

HAND Cutting direction

R - Right

ID Technical product number

3107303

Interface codes

J6 / J61

ISO

ZYL10G2000h$06

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LH Head length

30 mm

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G2000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02001015

LPR Protruding length

30 mm

Name Identifying order number

HM390 ETC D18-2-W20-07

OAL Overall length

85 mm

RMPX Ramping angle maximum

1.4 Degree

TCDCONMS ISO-tolerance class shank diameter

h6

Working process

No working processes available

WT Weight of item

0.16 kg

ZEFF Face effective cutting edge count

2

ZEFP Peripheral effective cutting edge count

2
