Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill H690 E90AX D40-5-W32-10

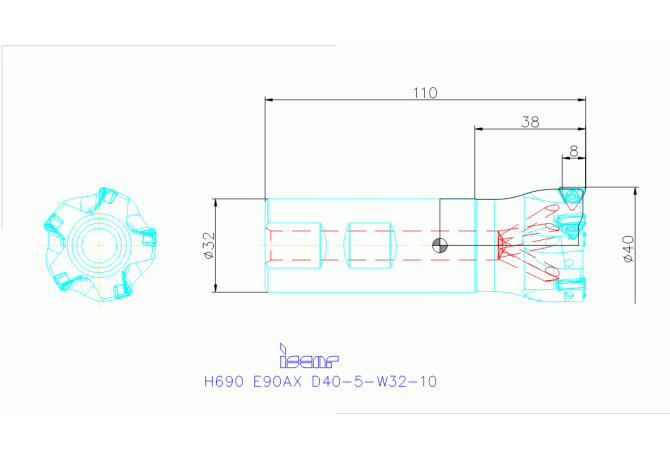

H690 E90AX D40-5-W32-10

Артикул: 3106670

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

2 - With Coolant exit, radial

DC Cutting diameter

40 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL03201015

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

90° Endmills Carrying H690 TNKX 1005..Triangular Inserts with 6 Helical Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3106670

Interface codes

J6 / J61

ISO

ZYL10G3200h$06

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL10G3200h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL03201015

LU Usable length

38 mm

Name Identifying order number

H690 E90AX D40-5-W32-10

OAL Overall length

110 mm

RMPX Ramping angle maximum

1.1 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.63 kg

ZEFF Face effective cutting edge count
