Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill FHM90 E90A-D10-1-C10

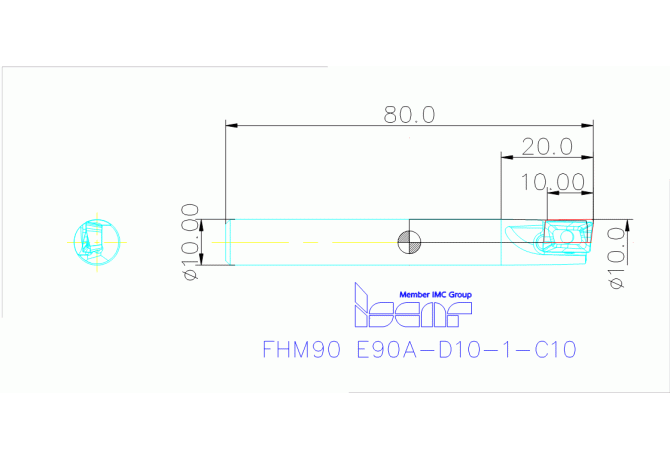

FHM90 E90A-D10-1-C10

FHM90 E90A-D10-1-C10 FHM90 E90A-D10-1-C10

FHM90 E90A-D10-1-C10

Iscar
Артикул: 3331045
В наличии
В корзину
Описание
Характеристики
APMX Depth of cut maximum
10 mm
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CICT Cutting item count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01000105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
1
FamilyProducts
Endmills for FPKT 1003... Inserts
HAND Cutting direction
R - Right
ID Technical product number
3331045
Interface codes
J6 / J61
ISO
ZYL01G1000h$06
ISYC Subclass
307-01 - Non-centre cutting single row end mill
KAPR Tool cutting edge angle
90 Degree
LF Functional length
80 mm
LH Head length
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
h$06
LOC-03 ISO
ZYL01G1000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01000105
LPR Protruding length
40 mm
LU Usable length
13.8 mm
Name Identifying order number
FHM90 E90A-D10-1-C10
OAL Overall length
80 mm
RMPX Ramping angle maximum
5 Degree
RPMX Rotational speed maximum
131850 1/min
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
No working processes available
WT Weight of item
0.04 kg
ZEFF Face effective cutting edge count
1
ZEFP Peripheral effective cutting edge count
1
