Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill FF EWXD1.25-4-2.5W1.25-05

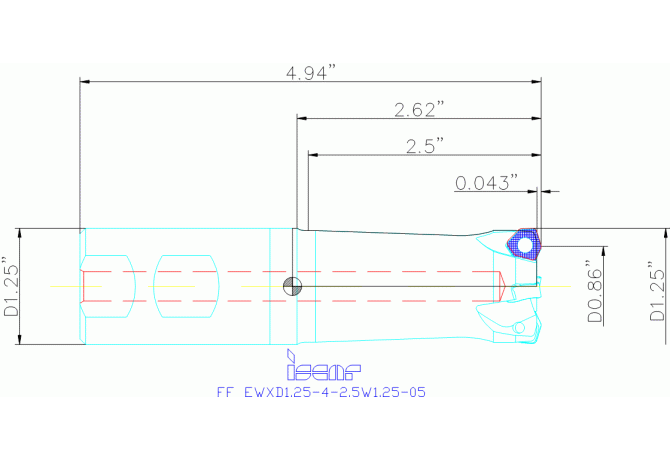

FF EWXD1.25-4-2.5W1.25-05

FF EWXD1.25-4-2.5W1.25-05

FF EWXD1.25-4-2.5W1.25-05

FF EWXD1.25-4-2.5W1.25-05

FF EWXD1.25-4-2.5W1.25-05

Iscar

Артикул: 3105549

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

80 Degree

A2A Clearance angle major Pos. A

0 Degree

APMX Depth of cut maximum

1.0922 mm

B1A Cutting edge length Pos. A

5.5 mm

B3A Inscribed circle diameter Pos. A

8.33 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.2 mm

CCONMS Connection count machine side

1

CICT Cutting item count

4

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

1.2 mm

DC Cutting diameter

21.844 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

10/10/2016

DIN

ZYL12501035

DN Neck diameter

30.48 mm

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

4

FamilyProducts

Fast Feed Endmills Carrying Double-Sided Inserts with 6 Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3105549

Interface codes

J6 /

ISYC Subclass

307-01 - Non-centre cutting single row end mill

LOC-03 CCFMS Connection code form

10

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

3 Inch with coolant

LOC-03 CZCMS Connection size code

1250

LOC-03 DCONMS Diameter

31.75 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL12501035

LPR Protruding length

66.548 mm

LU Usable length

63.5 mm

Name Identifying order number

FF EWXD1.25-4-2.5W1.25-05

OAL Overall length

125.73 mm

RMPX Ramping angle maximum

4 Degree

Working process

FPL - Face milling

WT Weight of item

35.4076 kg

ZEFP Peripheral effective cutting edge count

4
