Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill FF EWX D0.62-2-MMT10-04

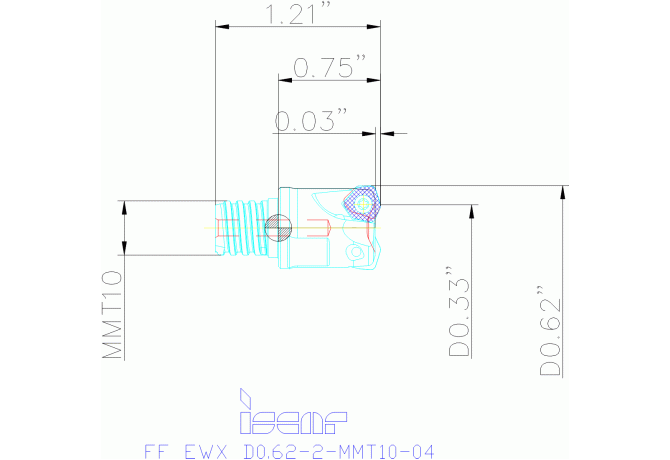

FF EWX D0.62-2-MMT10-04

FF EWX D0.62-2-MMT10-04 FF EWX D0.62-2-MMT10-04

FF EWX D0.62-2-MMT10-04

Iscar
Артикул: 3105633
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
80 Degree
A2A Clearance angle major Pos. A
0 Degree
APMX Depth of cut maximum
0.762 mm
B1A Cutting edge length Pos. A
4.13 mm
B3A Inscribed circle diameter Pos. A
6.25 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
3.1 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.96 mm
DC Cutting diameter
8.4836 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
10/10/2016
DIN
SAI01000115
DN Neck diameter
15.1892 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Fast Feed Endmills with MULTI-MASTER Threaded Connection Carrying Double-Sided I
HAND Cutting direction
R - Right
ID Technical product number
3105633
Interface codes
J6 / J61
ISO
SAI01G1000$$$$
ISYC Subclass
307-01 - Non-centre cutting single row end mill
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAI Screw mounting ISCAR
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
15.24 mm
LOC-03 ISO
SAI01G1000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAI01000115
LPR Protruding length
19.05 mm
Name Identifying order number
FF EWX D0.62-2-MMT10-04
OAL Overall length
30.734 mm
RMPX Ramping angle maximum
5 Degree
Working process
FPL - Face milling
WT Weight of item
1.3462 kg
ZEFP Peripheral effective cutting edge count
2
