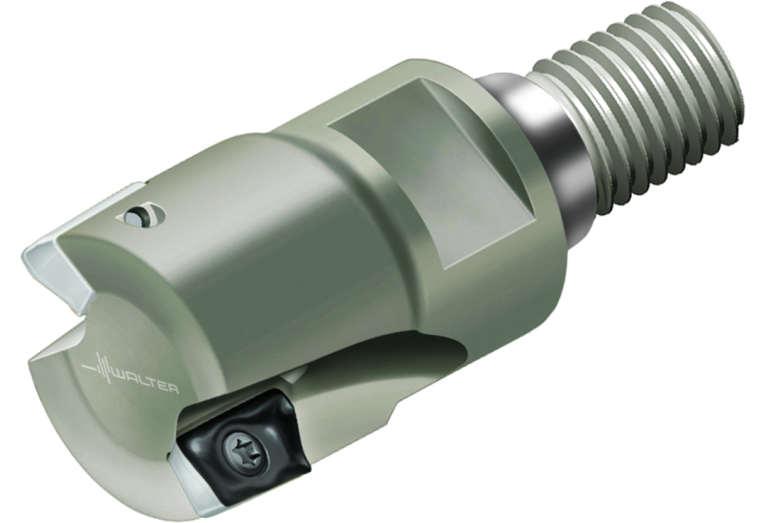

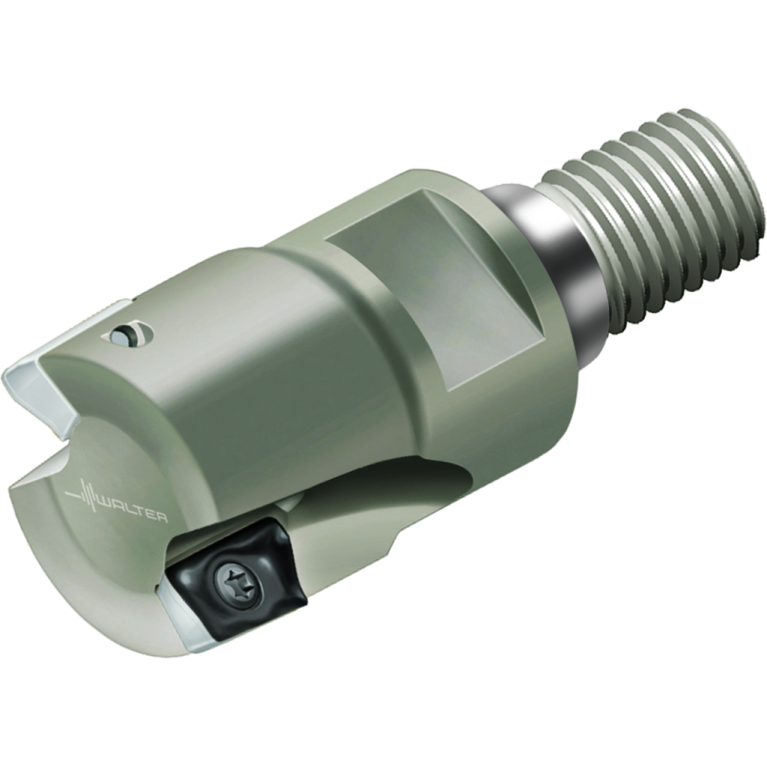

Главная Каталог продукции Toolunited 17 307-01 - Non-centre cutting single row end mill F4042R.UT22.026.Z02.10

F4042R.UT22.026.Z02.10

Артикул: 5535422

В наличии

В корзину

Описание

Характеристики

ADJBY Adjustment property

0 - Adjustment not possible

APMX Depth of cut maximum

10 mm

AZ Plunge depth maximum

0.6 mm

BD Body diameter

24.45 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

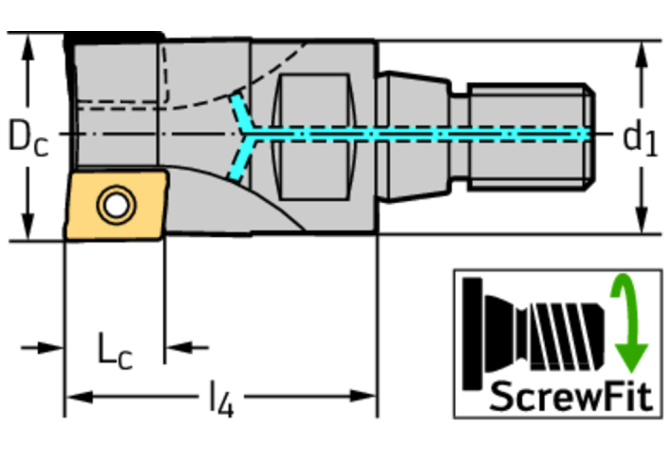

DC Cutting diameter

25.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

SAW01400195

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042R

HAND Cutting direction

R - Right

ID Technical product number

5535422

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

ISO

SAW01C0140$$$$

ISYC Subclass

307-01 - Non-centre cutting single row end mill

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

SAW Screw mounting WALTER

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0140

LOC-03 DCONMS Diameter

14.5 mm

LOC-03 ISO

SAW01C0140$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAW01400195

LPR Protruding length

35 mm

LU Usable length

35 mm

Name Identifying order number

F4042R.UT22.026.Z02.10

OAL Overall length

53 mm

RMPX Ramping angle maximum

1.47 Degree

RPMX Rotational speed maximum

31400 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.12 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
