Главная Каталог продукции Toolunited 17 307-13 - Die and mold end mill BLP D40-M16

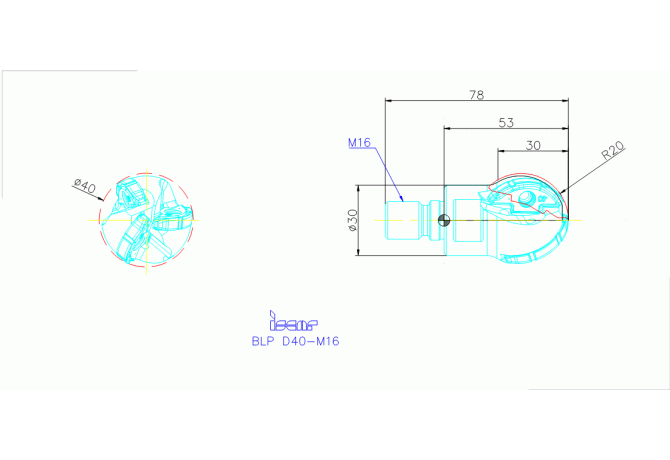

BLP D40-M16

Артикул: 3106903

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

30 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

DIN

SAI01600295

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Three Flute Fully Effective 240° Ball Nose Endmills with FLEXFIT Threaded Adaptation

HAND Cutting direction

R - Right

ID Technical product number

3106903

Interface codes

J6 / J61

ISO

SAI02C0160$$$$

ISYC Subclass

307-13 - Die and mold end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Connection size code

0160

LOC-03 DCONMS Diameter

30 mm

LOC-03 ISO

SAI02C0160$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI01600295

Name Identifying order number

BLP D40-M16

OAL Overall length

78 mm

THSZMS Connection thread nominal size machine side

M16

Working process

No working processes available

WT Weight of item

0.25 kg

ZEFF Face effective cutting edge count
