Главная Каталог продукции Toolunited 17 307-13 - Die and mold end mill 212592 8

212592 8

Артикул: 212592 8

В наличии

В корзину

Описание

Характеристики

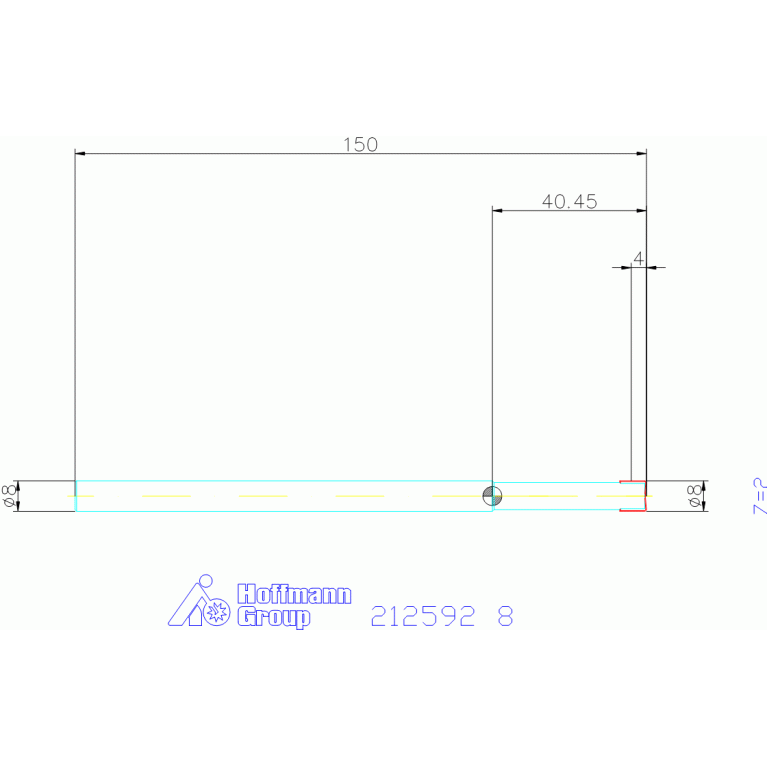

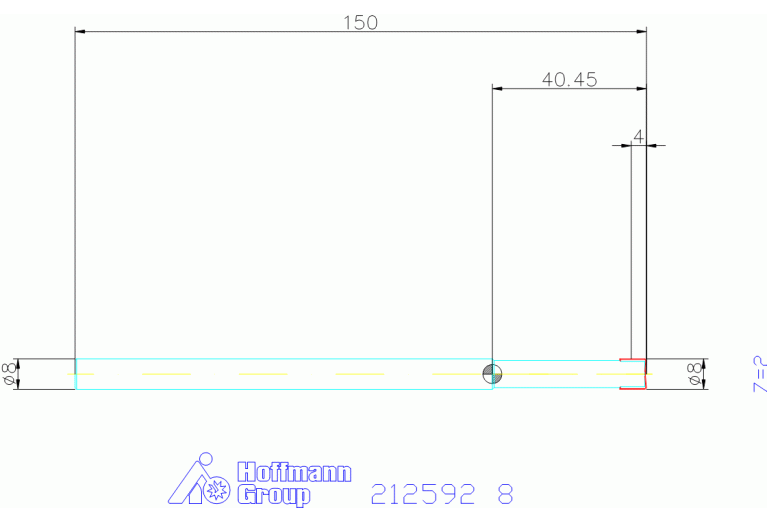

APMX Depth of cut maximum

4 mm

BD Body diameter

7.1 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

1/11/2017

DIN

ZYL00801005

DN Neck diameter

7.1 mm

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

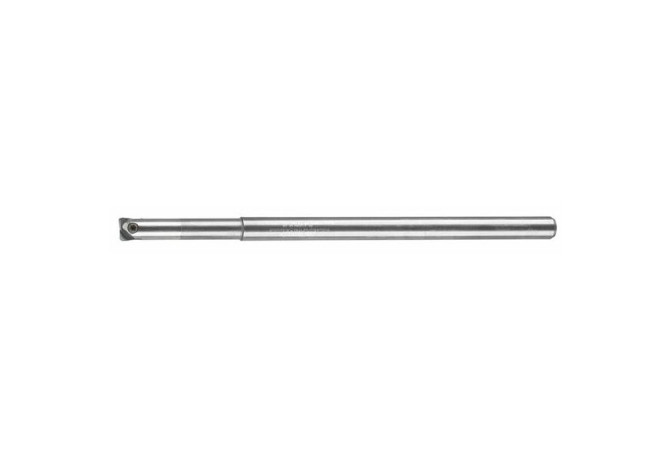

Solid carbide copy milling cutter extra long

GAMF Rake angle radial

0 Degree

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

307-13 - Die and mold end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0080

LOC-03 DCONMS Diameter

8 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00801005

LPR Protruding length

40.45 mm

LS Shank length

110 mm

LU Usable length

4 mm

Name Identifying order number

212592 8

OAL Overall length

150 mm

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.099 kg

ZEFF Face effective cutting edge count
