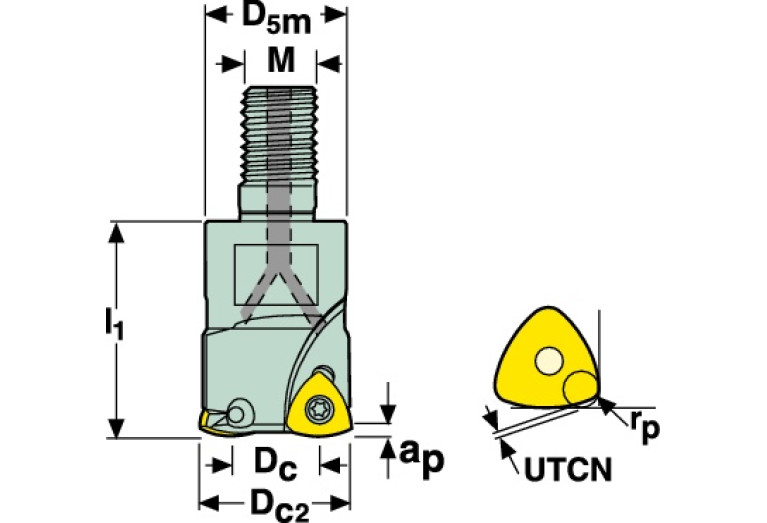

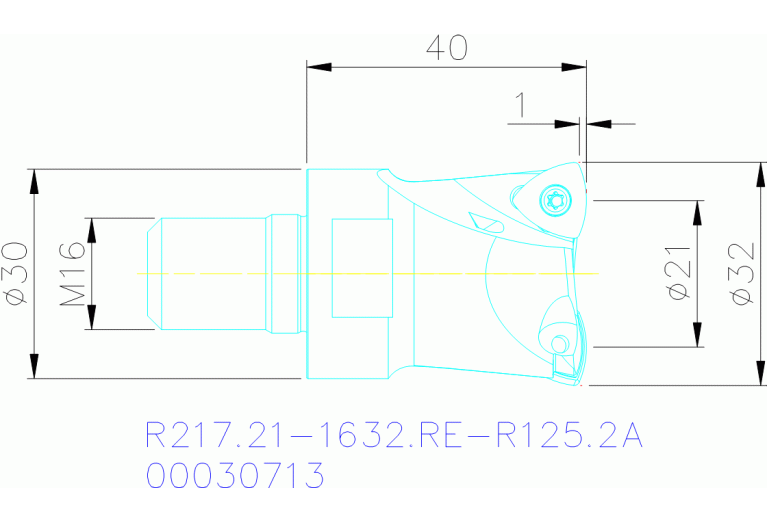

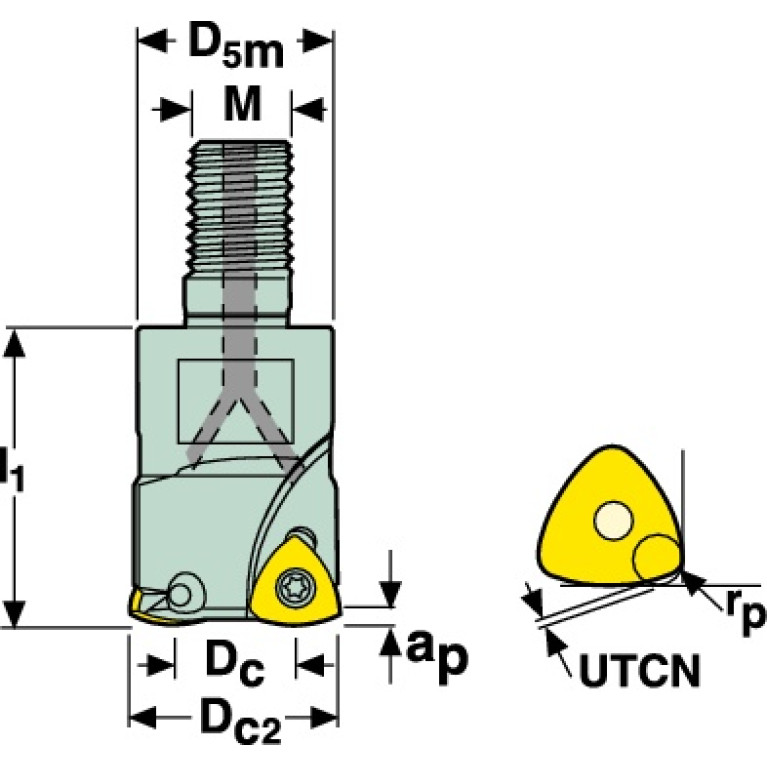

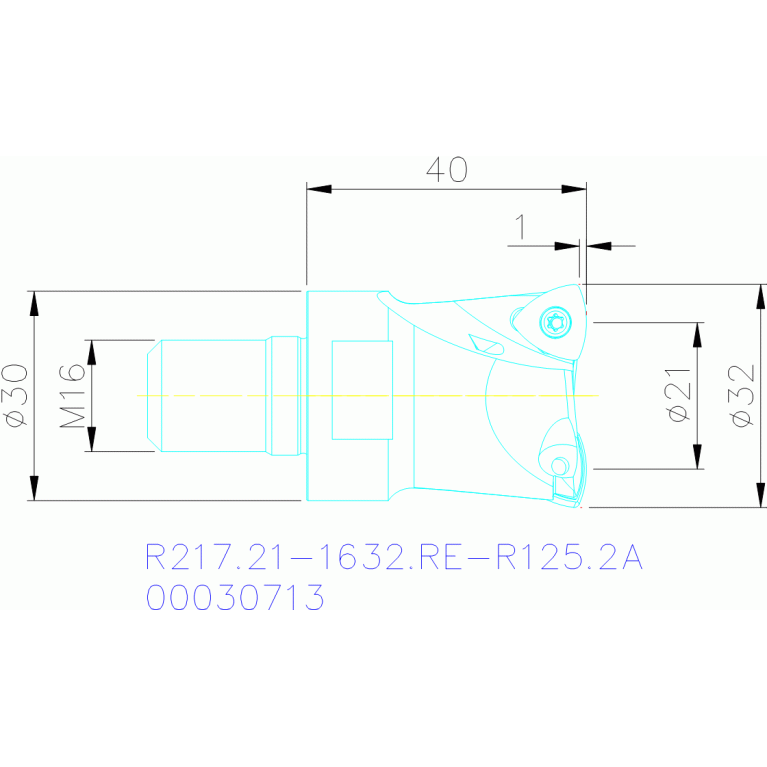

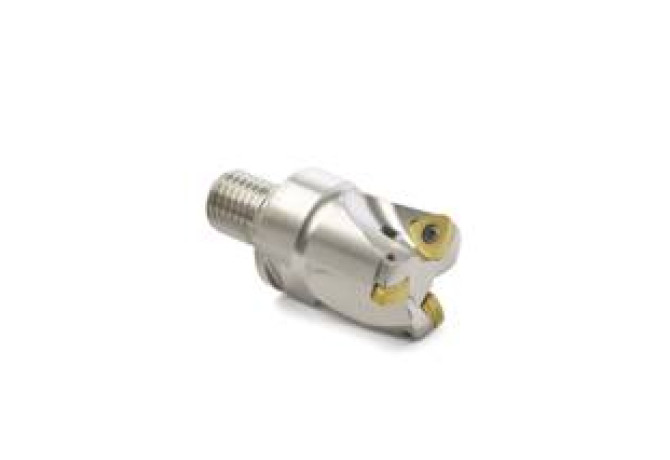

Главная Каталог продукции Toolunited 17 307-00 - End mill for indexable inserts unspecified R217.21-1632.RE-R125.2A

R217.21-1632.RE-R125.2A

R217.21-1632.RE-R125.2A R217.21-1632.RE-R125.2A R217.21-1632.RE-R125.2A

R217.21-1632.RE-R125.2A

Seco
Артикул: 00030713
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
12 Degree
A2B Clearance angle major Pos. B
12 Degree
APMX Depth of cut maximum
1 mm
B3A Inscribed circle diameter Pos. A
8.9 mm
B3B Inscribed circle diameter Pos. B
8.9 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
3.97 mm
CCONMS Connection count machine side
3
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
21.16 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
32 mm
Delivery state valid from
3/14/2020
DIN
SAD01600105
FamilyProducts
R217.21-1632.RE-R125.2A
GAMF Rake angle radial
-3 Degree
GAMP Rake angle axial
6 Degree
HAND Cutting direction
R - Right
ID Technical product number
00030713
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
SCM01G3000$$$$
ISYC Subclass
307-00 - End mill for indexable inserts unspecified
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
218.19-125-T3-E06
LOC-01 ISO
SO$$218 19125T3**N
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SO-218 19-125T3
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
218.19-125-T3-E06
LOC-02 ISO
SO$$218 19125T3**N
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO-218 19-125T3
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 ISO
SCM01G3000$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01600105
MIID Master insert identification
218.19-125-T3-E06
Name Identifying order number
R217.21-1632.RE-R125.2A
RMPX Ramping angle maximum
3.67 Degree
RPMX Rotational speed maximum
19700 1/min
THSZMS Connection thread nominal size machine side
M16
Working process
No working processes available
WT Weight of item
0.2 kg
ZEFP Peripheral effective cutting edge count
2
Номер таблицы (BI) / Block index (BI)
1
