Главная Каталог продукции Toolunited 17 307-05 - Single row rounded end mill R217.29-2025.0-05.2.120

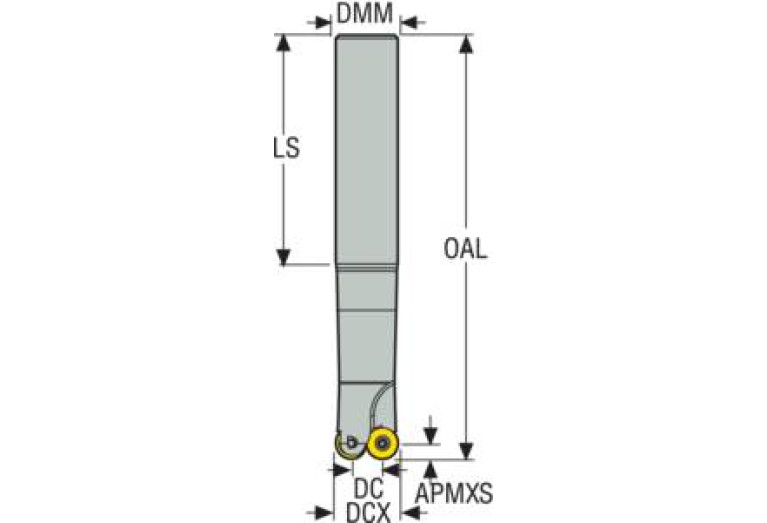

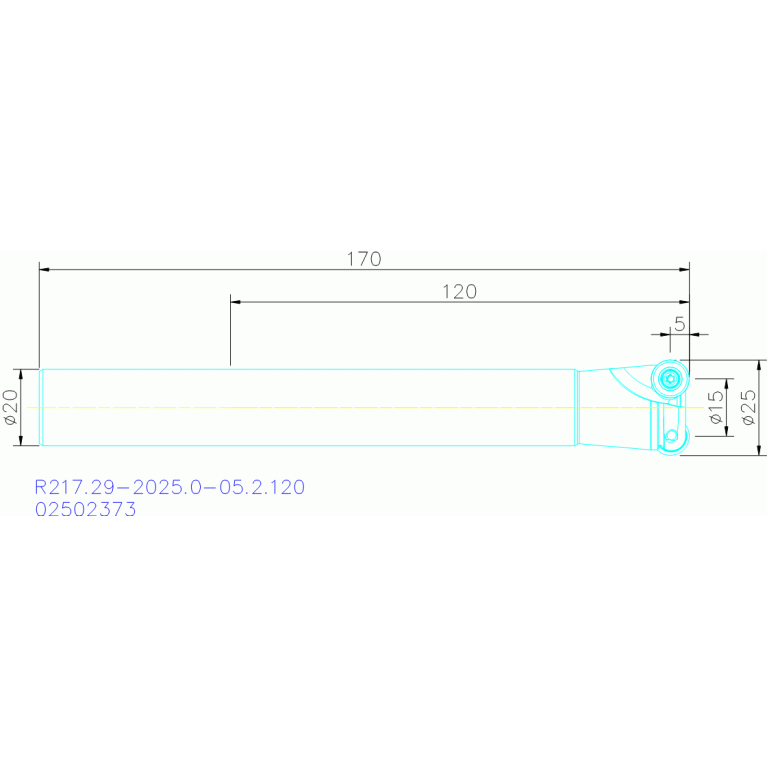

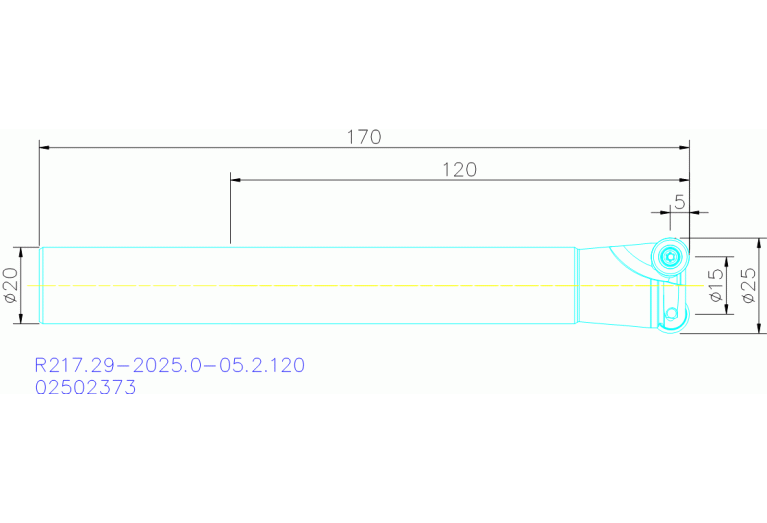

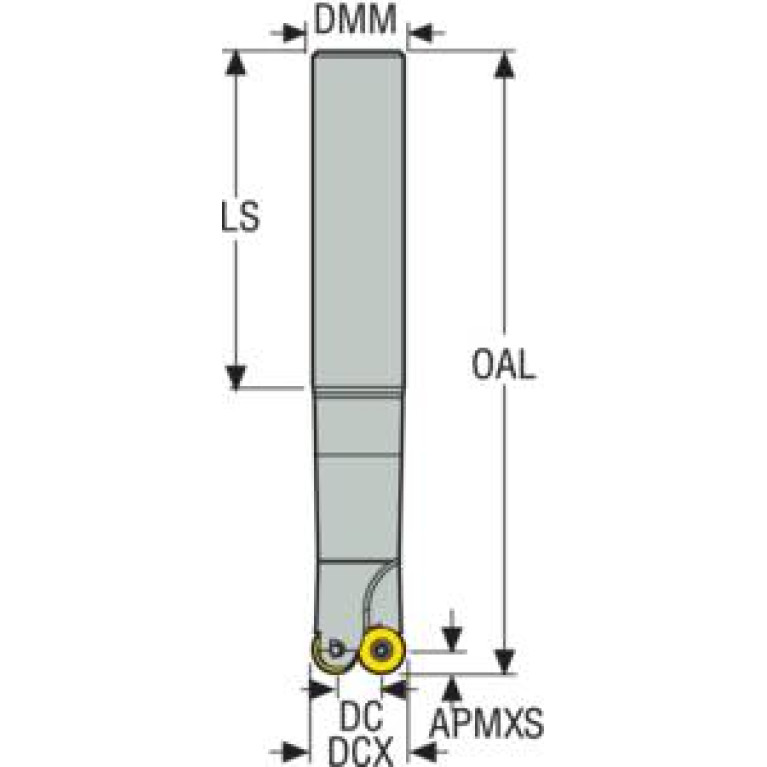

R217.29-2025.0-05.2.120

R217.29-2025.0-05.2.120 R217.29-2025.0-05.2.120 R217.29-2025.0-05.2.120 R217.29-2025.0-05.2.120

R217.29-2025.0-05.2.120

Seco
Артикул: 02502373
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
5 mm
B3A Inscribed circle diameter Pos. A
10 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.97 mm
CCONMS Connection count machine side
2
CICT Cutting item count
2
COMPC Company code
SO - SECO Tools
DC Cutting diameter
15 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
25 mm
Delivery state valid from
3/14/2020
DIN
ZYL02000105
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
R217.29-2025.0-05.2.120
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
4 Degree
HAND Cutting direction
R - Right
ID Technical product number
02502373
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
ZYL01G2000h$06
ISYC Subclass
307-05 - Single row rounded end mill
LF Functional length
170 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0200
LOC-03 DCONMS Diameter
20 mm
LOC-03 ISO
ZYL01G2000h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02000105
LPR Protruding length
120 mm
LS Shank length
140 mm
LU Usable length
120 mm
Name Identifying order number
R217.29-2025.0-05.2.120
OAL Overall length
170 mm
RMPX Ramping angle maximum
17.25 Degree
RPMX Rotational speed maximum
24400 1/min
Working process
No working processes available
WT Weight of item
0.405 kg
