Главная Каталог продукции Toolunited 17 307-05 - Single row rounded end mill H400 ER D25-2-060-C25-12

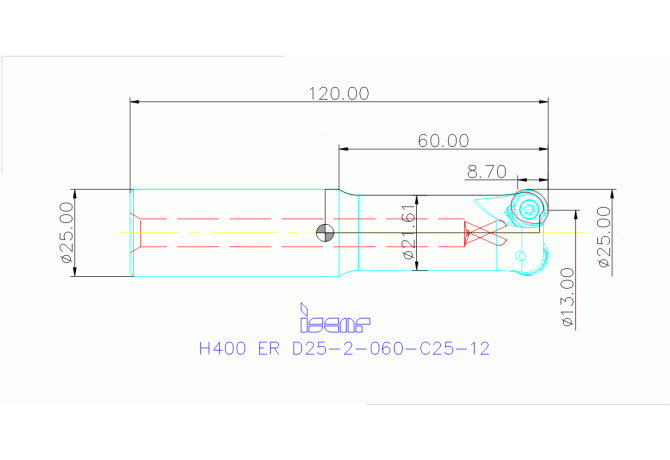

H400 ER D25-2-060-C25-12

Артикул: 3106112

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

8.7 mm

BD Body diameter

21.6 mm

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IS - Iscar

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DC Cutting diameter

13 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

25 mm

DIN

ZYL02500115

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Endmills Carrying Double-Sided Inserts with Four 6 mm Radius Cutting Edges

HAND Cutting direction

R - Right

ID Technical product number

3106112

Interface codes

J6 / J61

ISO

ZYL01G2500h$06

ISYC Subclass

307-05 - Single row rounded end mill

LF Functional length

120 mm

LH Head length

60 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03 TCDCONCDMS Connection tolerance class coded

h$06

LOC-03 ISO

ZYL01G2500h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500115

LPR Protruding length

64 mm

Name Identifying order number

H400 ER D25-2-060-C25-12

OAL Overall length

120 mm

RMPX Ramping angle maximum

5.6 Degree

TCDCONMS ISO-tolerance class shank diameter

Working process

No working processes available

WT Weight of item

0.34 kg

ZEFF Face effective cutting edge count
