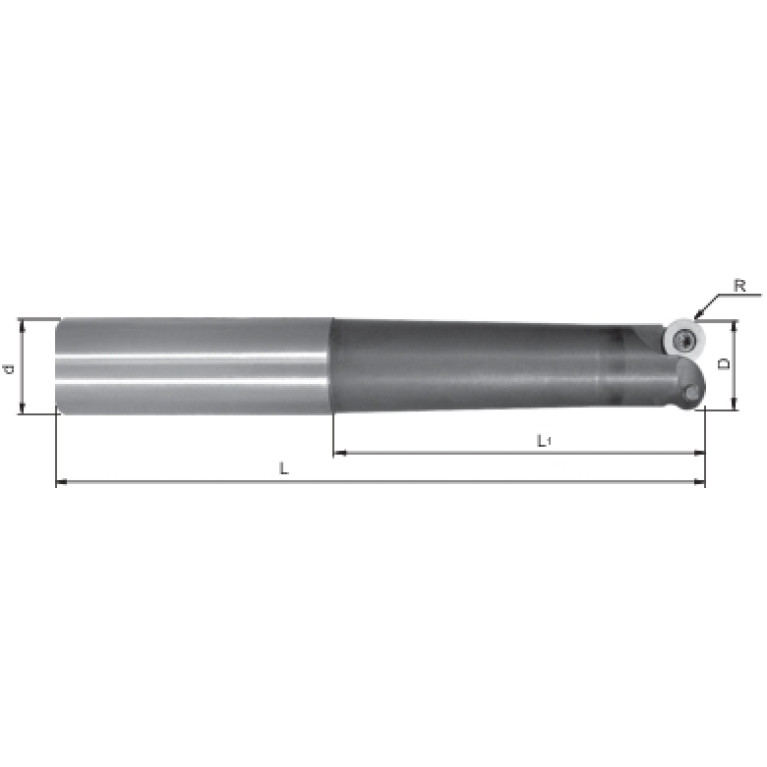

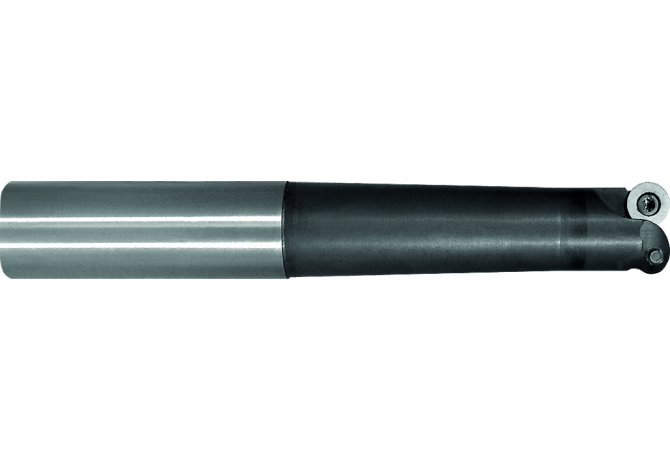

Главная Каталог продукции Toolunited 17 307-05 - Single row rounded end mill FMR03-015-G25-XL-RD0702-02

FMR03-015-G25-XL-RD0702-02

Артикул: FMR03-015-G25-XL-RD0702-02

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

15 Degree

APMX Depth of cut maximum

3.5 mm

B3A Inscribed circle diameter Pos. A

7 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

2.38 mm

CCONMS Connection count machine side

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

8 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

15 mm

Delivery state

LH - Stocked

DIN

ZYL02500105

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Face mill

HAND Cutting direction

R - Right

ID Identifying order number

FMR03-015-G25-XL-RD0702-02

Interface codes

J6 /

ISYC Subclass

307-05 - Single row rounded end mill

LF Functional length

176 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0250

LOC-03 DCONMS Diameter

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02500105

LS Shank length

56 mm

OAL Overall length

176 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FFO - Die milling,FPL - Face milling,FPR - Profile milling,FRU - Round moulding,FSE - Counter-sinking,FZI - Circular milling

ZEFF Face effective cutting edge count
