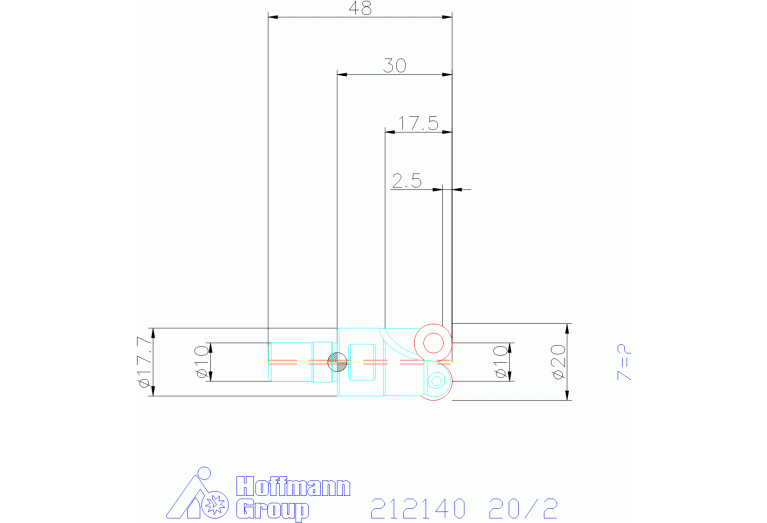

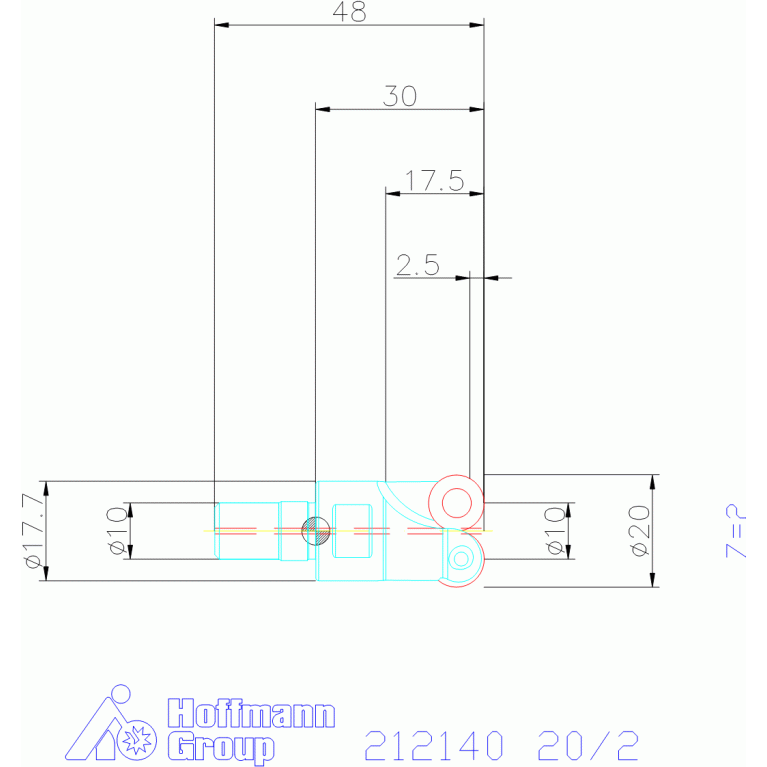

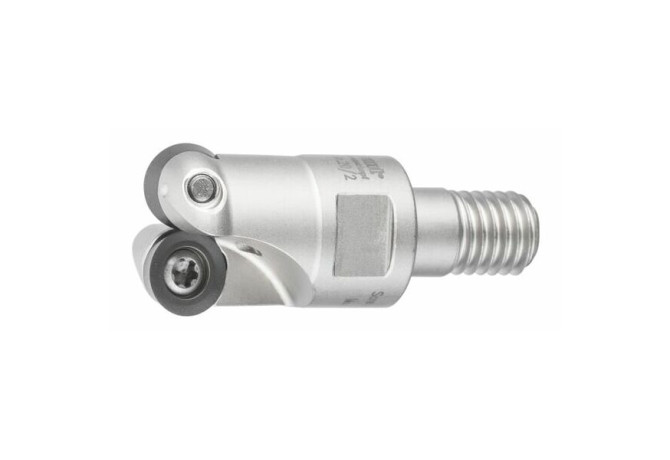

Главная Каталог продукции Toolunited 17 307-05 - Single row rounded end mill 212140 20/2

212140 20/2

212140 20/2 212140 20/2 212140 20/2

212140 20/2

Hoffmann Group
Артикул: 212140 20/2
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
APMX Depth of cut maximum
5 mm
AZ Plunge depth maximum
0.36 mm
B3A Inscribed circle diameter Pos. A
10 mm
BD Body diameter
18.7 mm
BLDA Tool style code Position A
10
CCONMS Connection count machine side
1
CICT Cutting item count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
10 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
20 mm
Delivery state valid from
1/11/2017
DIN
SAD01000115
DN Neck diameter
17.7 mm
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
2
FamilyProducts
Copy milling cutter 7° positive
GAMF Rake angle radial
7 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
307-05 - Single row rounded end mill
LH Head length
30 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SAD Screw mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0100
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SAD01000115
LPR Protruding length
30 mm
LS Shank length
18 mm
LU Usable length
30 mm
Name Identifying order number
212140 20/2
OAL Overall length
48 mm
RMPX Ramping angle maximum
2 Degree
THSZMS Connection thread nominal size machine side
M10x1.5
Working process
FPL - Face milling
WT Weight of item
0.046 kg
ZEFF Face effective cutting edge count
2
