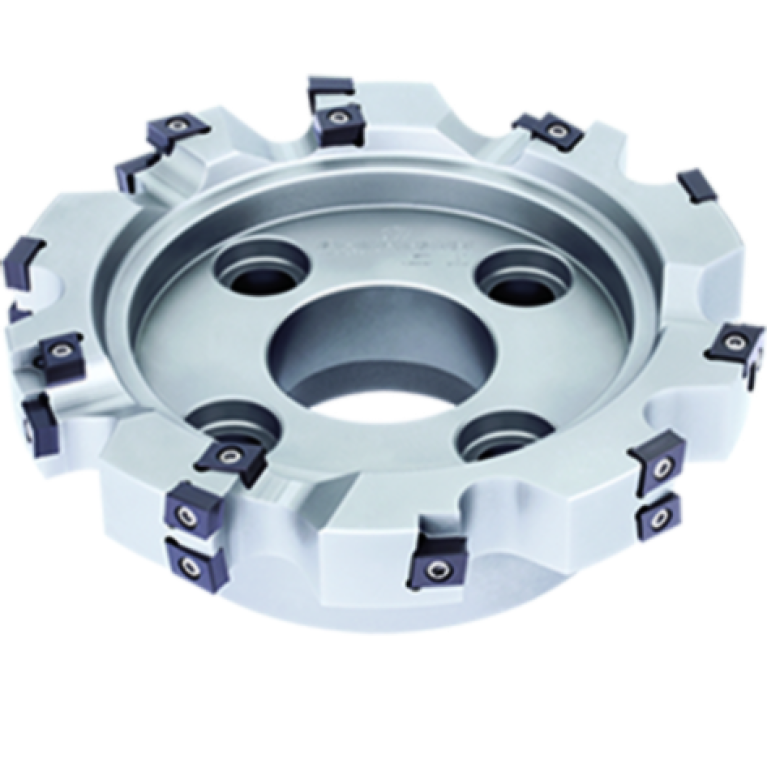

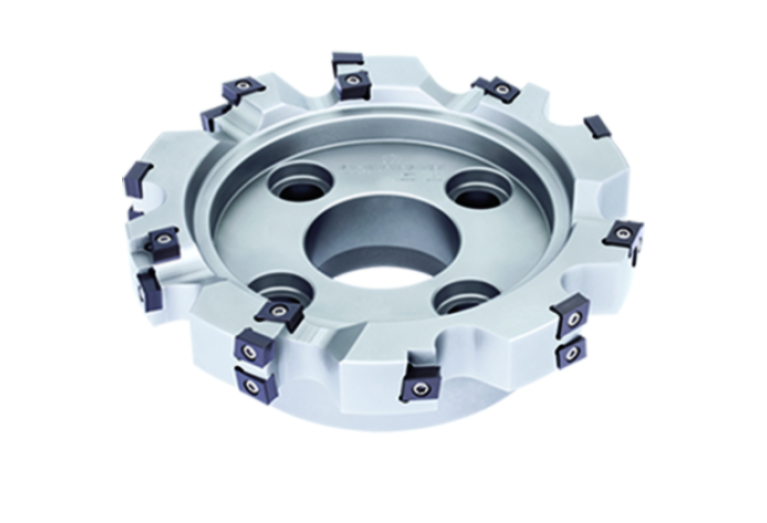

Главная Каталог продукции Toolunited 17 308-04 - Shell milling cutter XMP01-080*18-B27-CNE1210-08

XMP01-080*18-B27-CNE1210-08

XMP01-080*18-B27-CNE1210-08 XMP01-080*18-B27-CNE1210-08 XMP01-080*18-B27-CNE1210-08

XMP01-080*18-B27-CNE1210-08

ZCC Cutting Tools
Артикул: XMP01-080*18-B27-CNE1210-08
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
B1A Cutting edge length Pos. A
10 mm
B1B Cutting edge length Pos. B
10 mm
B2A Insert width Pos. A
6.35 mm
B2B Insert width Pos. B
6.35 mm
BI Block index
1
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
CCONMS Connection count machine side
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CWN Cutting width minimum
15 mm
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm

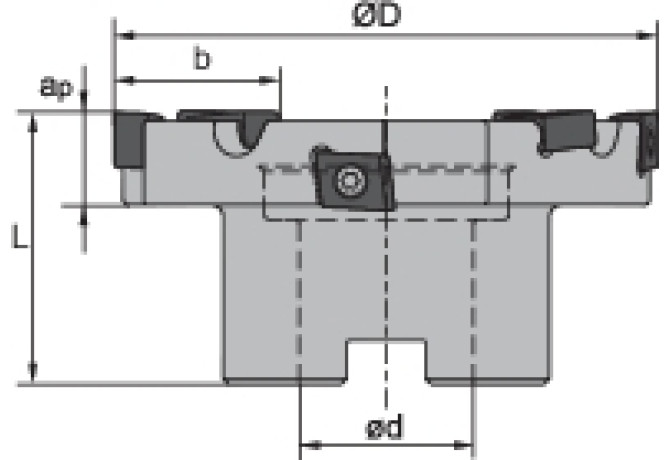

DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
6.7 kg
DIN
FDA02701200
FamilyProducts
Bore mill
HAND Cutting direction
R - Right
ID Identifying order number
XMP01-080*18-B27-CNE1210-08
Interface codes
J6 /
ISYC Subclass
308-04 - Shell milling cutter
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
CNE121006
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
ZCC-CNE121006
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
CNE121006
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
ZCC-CNE121006
LOC-03 CCFMS Form
12
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02701200
MIID Master insert identification
CNE121006
OAL Overall length
50 mm
Working process
FDR - Rotary milling, turn milling,FPL - Face milling,FRU - Round moulding,FZI - Circular milling
WT Weight of item
0.67 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
