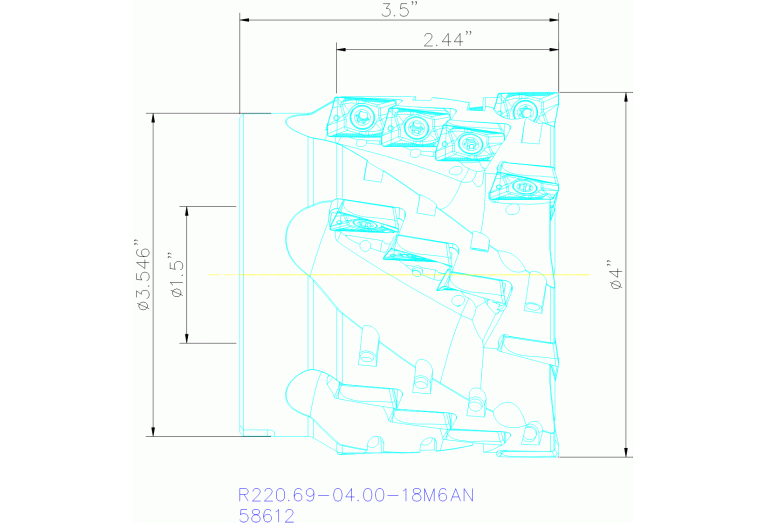

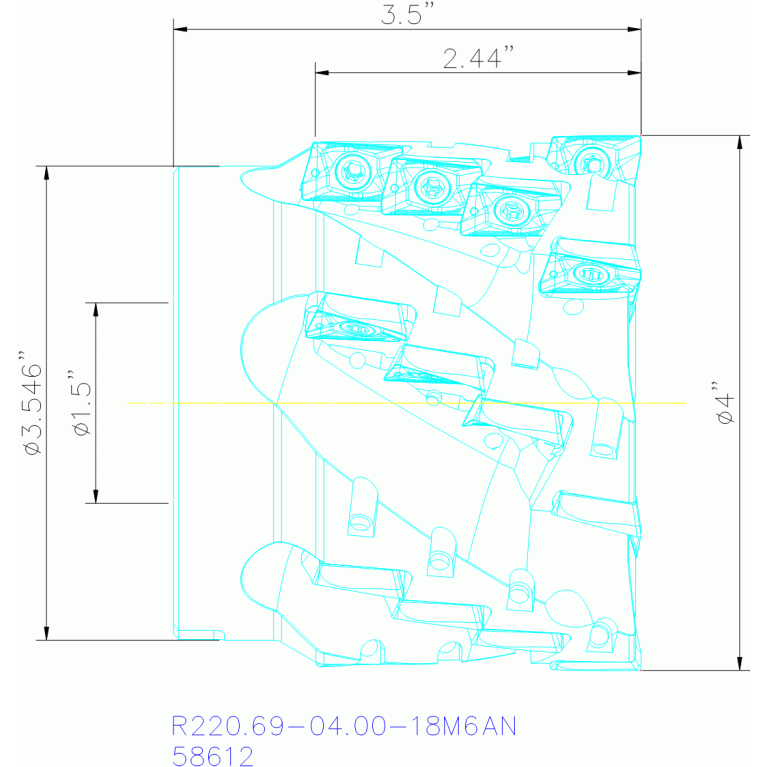

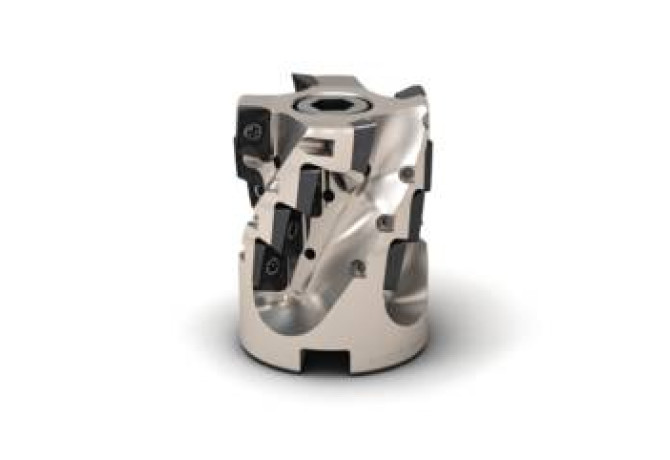

Главная Каталог продукции Toolunited 17 308-04 - Shell milling cutter R220.69-04.00-18M6AN

R220.69-04.00-18M6AN

R220.69-04.00-18M6AN R220.69-04.00-18M6AN R220.69-04.00-18M6AN R220.69-04.00-18M6AN

R220.69-04.00-18M6AN

Seco
Артикул: 02710943
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
15 Degree
BI Block index
1
BLDA Tool style code Position A
99
C1A Insert thickness Pos. A
6.35 mm
CCONMS Connection count machine side
2
COMPC Company code
SO - SECO Tools
CWN Cutting width minimum
62 mm
D1A Corner radius Pos. A
0.4 mm
D6A Wiper edge length Pos. A
2.4 mm

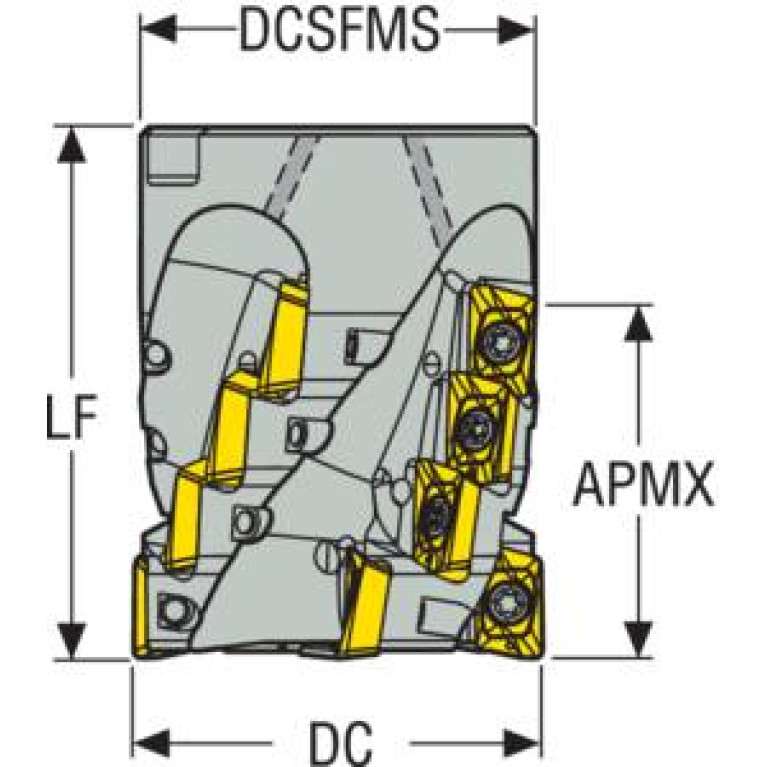

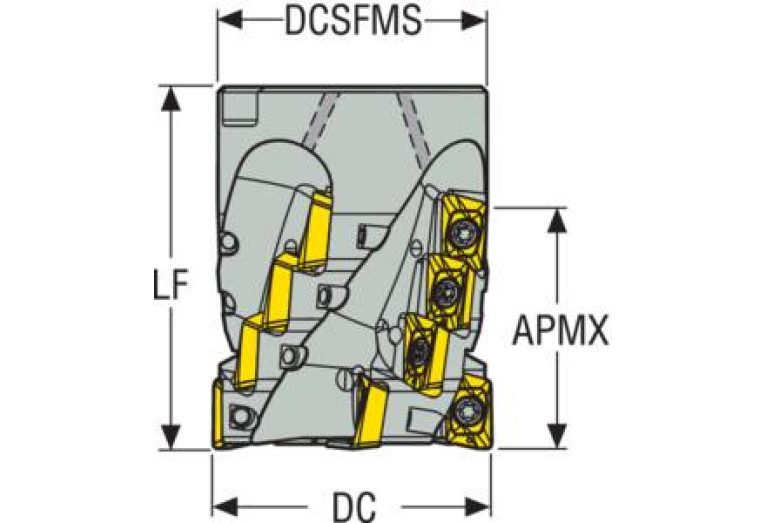

DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
90 mm
DIN
FDA15002220
FamilyProducts
R220.69-04.00-18M6AN
GAMF Rake angle radial
-4 Degree
GAMP Rake angle axial
6.5 Degree
HAND Cutting direction
R - Right
ID Technical product number
02710943
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA22S1500H$07
ISYC Subclass
308-04 - Shell milling cutter
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
XOEX180604FR-E10
LOC-01 ISO
SO$$XO1806**3RB****
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
SO-SO XO 1806 R
LOC-02 BI Block index
2
LOC-02 ISO
SO$$XO1806**3RB****
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
SO-SO XO 180612R
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 ISO
FDA22S1500H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002220
MIID Master insert identification
XOEX180604FR-E10
Name Identifying order number
R220.69-04.00-18M6AN
NameAnsi Identifying order number inch alternative
R220.69-04.00-18-M6AN
RPMX Rotational speed maximum
6300 1/min
Working process
No working processes available
WT Weight of item
3.5 kg
ZEFP Peripheral effective cutting edge count
6
