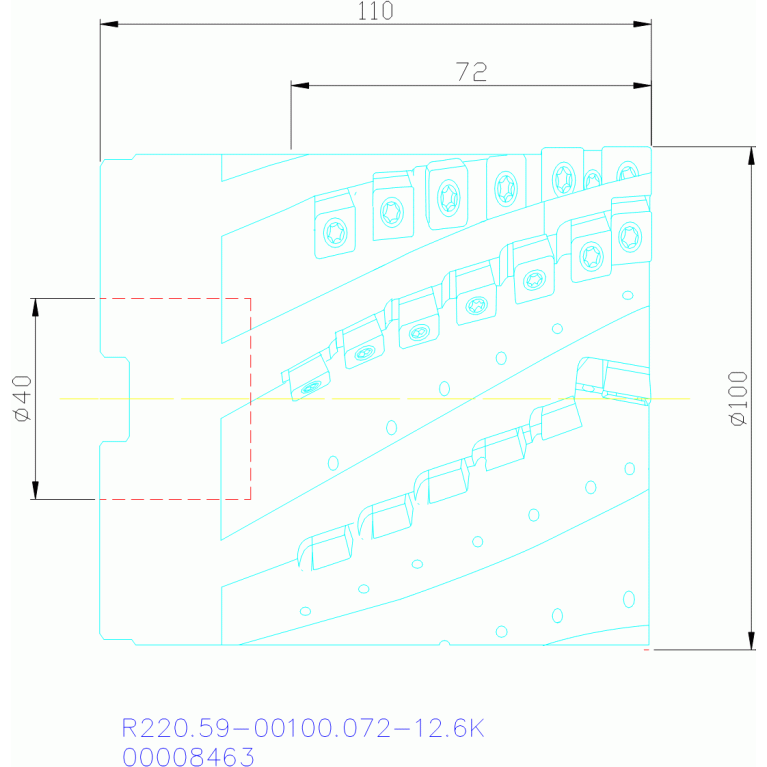

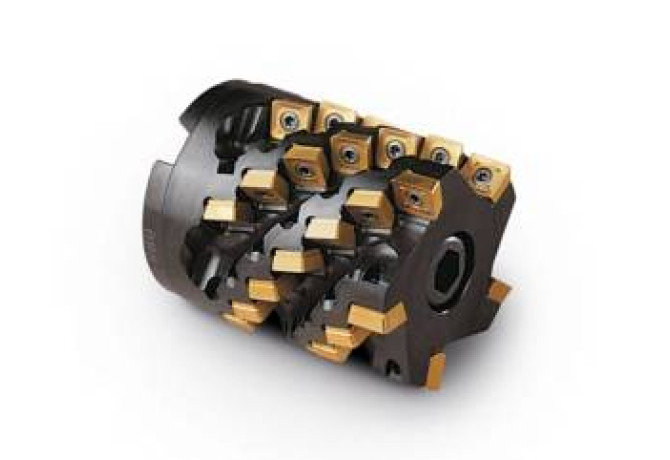

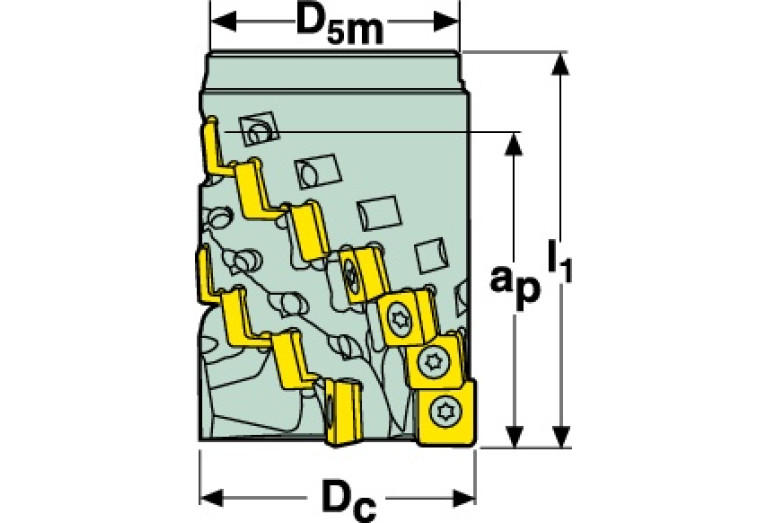

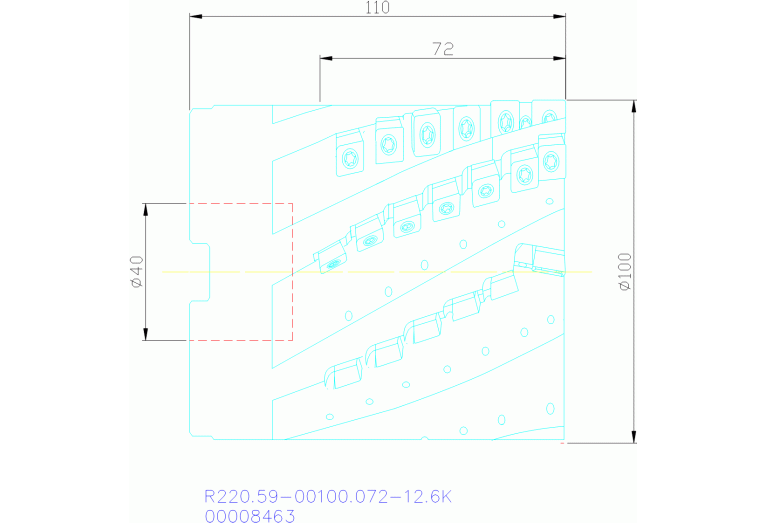

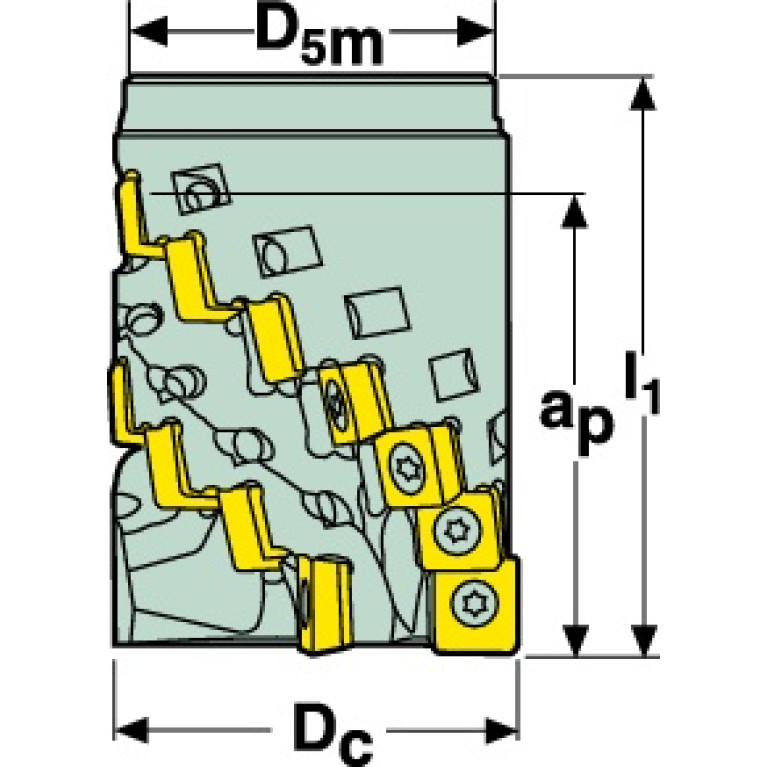

Главная Каталог продукции Toolunited 17 308-04 - Shell milling cutter R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

R220.59-00100.072-12.6K

Seco

Артикул: 00008463

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

86 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

7 Degree

A2B Clearance angle major Pos. B

7 Degree

B1A Cutting edge length Pos. A

15.249 mm

B1B Cutting edge length Pos. B

12.673 mm

B3B Inscribed circle diameter Pos. B

12.673 mm

BI Block index

1

BLDA Tool style code Position A

5

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

6.35 mm

C1B Insert thickness Pos. B

6.35 mm

CCONMS Connection count machine side

3

COMPC Company code

SO - SECO Tools

CWN Cutting width minimum

72 mm

D1A Corner radius Pos. A

2.4 mm

D1B Corner radius Pos. B

1.2 mm

DC Cutting diameter

100 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DHUB Hub diameter

95.5 mm

DIN

FDA04002200

FamilyProducts

R220.59-00100.072-12.6K

GAMF Rake angle radial

-14 Degree

GAMP Rake angle axial

-7 Degree

HAND Cutting direction

R - Right

ID Technical product number

00008463

Interface codes

J6 / J61

ISISO A Indicator for ISO cutting plate Pos.A

1

ISISO B Indicator for ISO cutting plate Pos.B

1

ISO

FDA22G4000H$07

ISYC Subclass

308-04 - Shell milling cutter

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

ACET150624R-M10

LOC-01 ISO

SO$$AC1506**3RB****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

SO-AC3-1506R

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SCET120612R-M10

LOC-02 ISO

SO$$AC1506**3RB****

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

SO-SC3-120612

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

FDA22G4000H$07

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA04002200

MIID Master insert identification

ACET150624R-M10

Name Identifying order number

R220.59-00100.072-12.6K

RPMX Rotational speed maximum

5800 1/min

Working process

No working processes available

WT Weight of item

4.2 kg

ZEFP Peripheral effective cutting edge count

6
