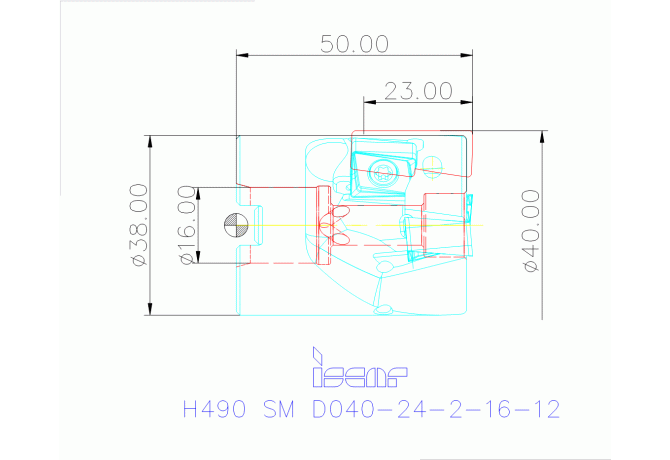

H490 SM D040-24-2-16-12

H490 SM D040-24-2-16-12 H490 SM D040-24-2-16-12

H490 SM D040-24-2-16-12

Iscar
Артикул: 3106257
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
B1A Cutting edge length Pos. A
13.7 mm
B1B Cutting edge length Pos. B
13.7 mm
B2A Insert width Pos. A
10 mm
B2B Insert width Pos. B
10 mm
B3A Inscribed circle diameter Pos. A
10 mm
B3B Inscribed circle diameter Pos. B
10 mm
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
9.15 mm
C1B Insert thickness Pos. B
9.15 mm
CCONMS Connection count machine side
2
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
D4A Cutting edge angle major Pos. A
90 Degree
D4B Cutting edge angle major Pos. B
90 Degree
D6A Wiper edge length Pos. A
3.5 mm
D6B Wiper edge length Pos. B
3.5 mm
DC Cutting diameter
40 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
2/2/2018
DHUB Hub diameter
38 mm
DIN
FDA01600210
FamilyProducts
Extended Flute Shell Mills Using H490 ANKX 12.. Double-Sided Rectangular Inserts
HAND Cutting direction
R - Right
ID Technical product number
3106257
Interface codes
J6 / J61
ISO
FDA02G1600H$07
ISYC Subclass
308-04 - Shell milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
H490 ANKX 1205PNTR-RM
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-AN1205PN3R
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G1600H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01600210
Name Identifying order number
H490 SM D040-24-2-16-12
OAL Overall length
50 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
0.25 kg
ZEFF Face effective cutting edge count
2
ZEFP Peripheral effective cutting edge count
2
