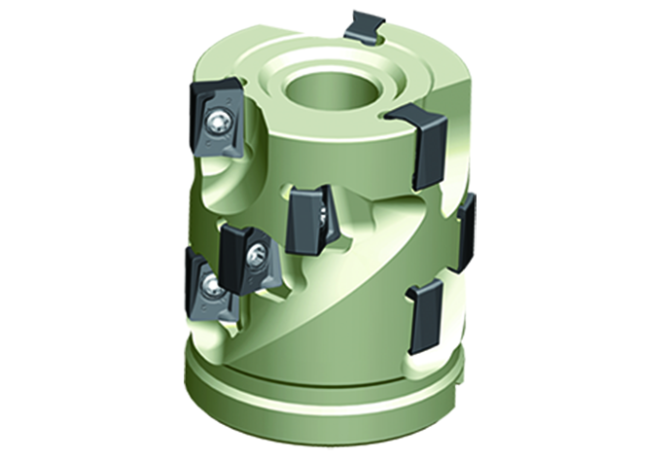

Главная Каталог продукции Toolunited 17 308-04 - Shell milling cutter EMP13-080x53-A32-AN15-04

EMP13-080x53-A32-AN15-04

Артикул: EMP13-080x53-A32-AN15-04

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

85 Degree

A1B Cutting edge angle major Pos. B

85 Degree

A2A Clearance angle major Pos. A

0 Degree

A2B Clearance angle major Pos. B

0 Degree

B1A Cutting edge length Pos. A

15.43 mm

B1B Cutting edge length Pos. B

15.43 mm

B2A Insert width Pos. A

11 mm

B2B Insert width Pos. B

11 mm

B3A Inscribed circle diameter Pos. A

11 mm

B3B Inscribed circle diameter Pos. B

11 mm

BLDA Tool style code Position A

BLDB Tool style code Position B

C1A Insert thickness Pos. A

7.3 mm

C1B Insert thickness Pos. B

7.3 mm

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CWN Cutting width minimum

53 mm

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

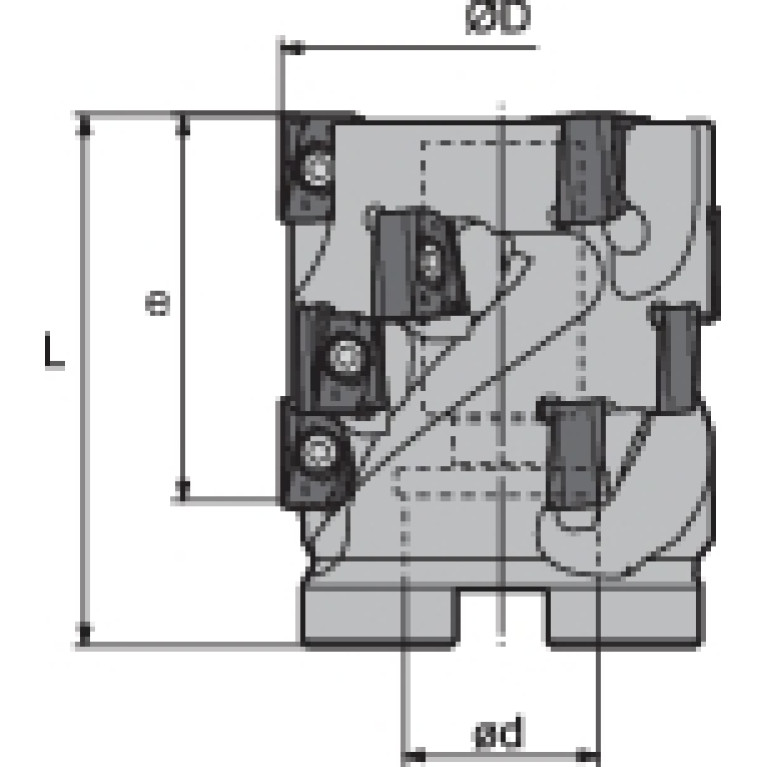

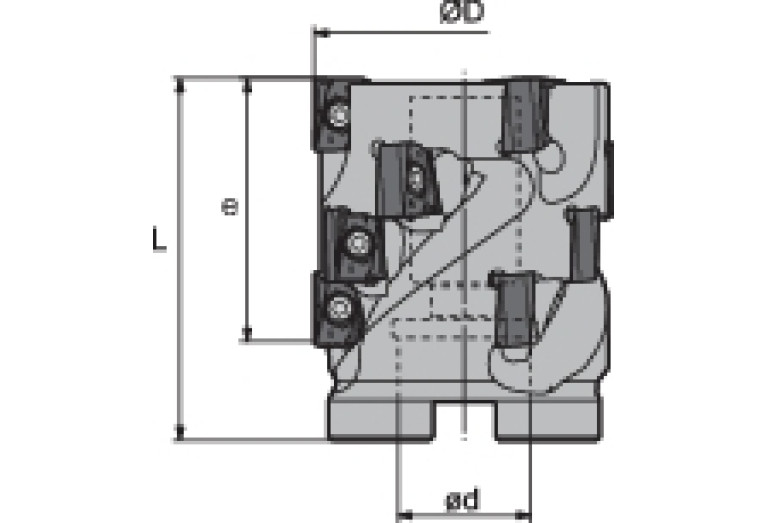

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

FDA03202200

FamilyProducts

Square shoulder mill

HAND Cutting direction

R - Right

ID Identifying order number

EMP13-080x53-A32-AN15-04

Interface codes

J6 /

ISYC Subclass

308-04 - Shell milling cutter

LOC-02 BI Block index

LOC-02 MIID Master insert identification

ANGX150608PNR-GM

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

ZCC-AN1506

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202200

OAL Overall length

75 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FRU - Round moulding

WT Weight of item

1.82 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
