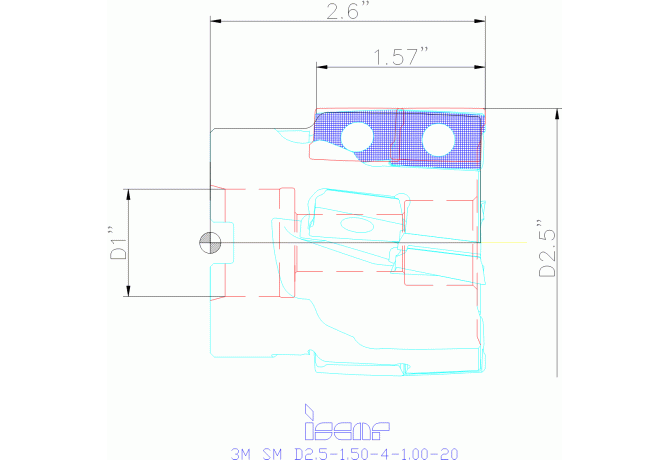

3M SM D2.5-1.50-4-1.00-20

3M SM D2.5-1.50-4-1.00-20 3M SM D2.5-1.50-4-1.00-20

3M SM D2.5-1.50-4-1.00-20

Iscar
Артикул: 3101534
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
B1A Cutting edge length Pos. A
22.4 mm
B1B Cutting edge length Pos. B
22.4 mm
B2A Insert width Pos. A
13.5 mm
B2B Insert width Pos. B
13.5 mm
B3A Inscribed circle diameter Pos. A
13.5 mm
B3B Inscribed circle diameter Pos. B
13.5 mm
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
6.8 mm
C1B Insert thickness Pos. B
6.8 mm
CCONMS Connection count machine side
3
CICT Cutting item count
8
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
1 mm
D1B Corner radius Pos. B
1 mm
D4A Cutting edge angle major Pos. A
90 Degree
D4B Cutting edge angle major Pos. B
90 Degree
D6A Wiper edge length Pos. A
3.34 mm
D6B Wiper edge length Pos. B
3.34 mm
DC Cutting diameter
63.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
53.975 mm
DIN
FDA10000220
FamilyProducts
Heavy Duty Extended Flute Shell Mills Carrying 3M AXKT 1304.../2006... Inserts
HAND Cutting direction
R - Right
ID Technical product number
3101534
Interface codes
J6 /
ISYC Subclass
308-04 - Shell milling cutter
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
3M AXKT 2006PDTR-RM
LOC-02 ISO
IS$$433921078794960
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-AX2006PD3R
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000220
Name Identifying order number
3M SM D2.5-1.50-4-1.00-20
OAL Overall length
66.04 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
44.704 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
