Главная Каталог продукции Toolunited 17 308-08 - Full-side angular slot milling cutter T440 SM-D050-28-3-27-13

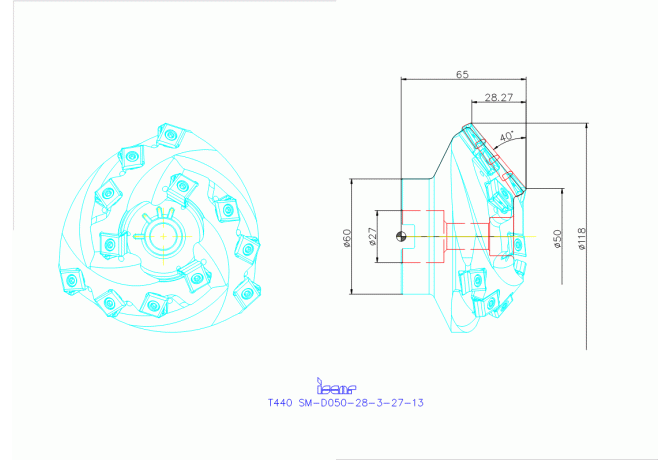

T440 SM-D050-28-3-27-13

T440 SM-D050-28-3-27-13 T440 SM-D050-28-3-27-13

T440 SM-D050-28-3-27-13

Iscar
Артикул: 3139923
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
0 Degree
A2B Clearance angle major Pos. B
0 Degree
B1A Cutting edge length Pos. A
13.74 mm
B1B Cutting edge length Pos. B
13.74 mm
B2A Insert width Pos. A
6.65 mm
B2B Insert width Pos. B
6.65 mm
B3A Inscribed circle diameter Pos. A
6.65 mm
B3B Inscribed circle diameter Pos. B
6.65 mm
BI Block index
1
BLDA Tool style code Position A
4
BLDB Tool style code Position B
4
C1A Insert thickness Pos. A
13.05 mm
C1B Insert thickness Pos. B
13.05 mm
CCONMS Connection count machine side
1
CDX Cutting depth maximum
28.88 mm
CICT Cutting item count
12
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter
50 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
118.8 mm
Delivery state valid from
2/2/2017
DHUB Hub diameter
60 mm
DIN
FDA02702210
FamilyProducts
Conical Extended Flute Shell Mill
HAND Cutting direction
R - Right
ID Technical product number
3139923
Interface codes
J6 /
ISYC Subclass
308-08 - Full-side angular slot milling cutter
KAPR Tool cutting edge angle
40 Degree
LOC-01 BI Block index
1
LOC-01 MIID Master insert identification
T490 LNMT 1306 PNTR
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
IS-LN1306PN3R
LOC-02 BI Block index
2
LOC-02 MIID Master insert identification
T490 LNMT 1306 PNTR
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-02-DIN
IS-LN1306PN3R
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702210
MIID Master insert identification
T490 LNMT 1306 PNTR
Name Identifying order number
T440 SM-D050-28-3-27-13
OAL Overall length
65 mm
Working process
No working processes available
WT Weight of item
1.991 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
