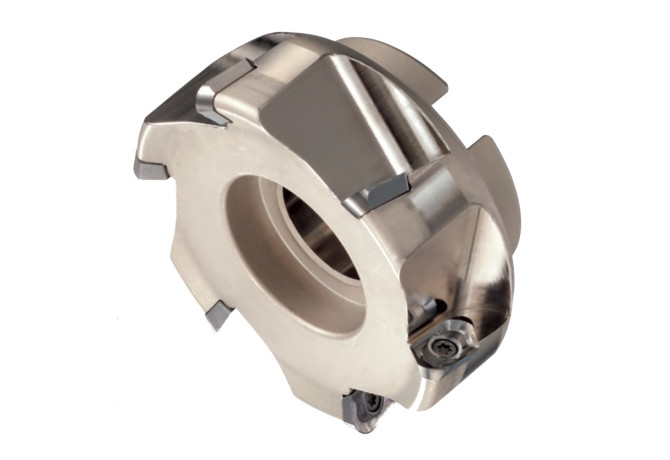

WAX42500-4.0

WAX42500-4.0 WAX42500-4.0 WAX42500-4.0

WAX42500-4.0

Sumitomo
Артикул: WAX42500-4.0
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
2
CICT Cutting item count
3
CNSC Coolant entry style code
2 - With Coolant entry, radial
COMPC Company code
SU - Sumitomo
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter
63.5 mm
DCCB Counterbore diameter connection bore
16.002 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/3/2012
DIN
FDA10000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
3
FamilyProducts
corner mill WAX 4000 inch
GAMF Rake angle radial
6 Degree
GAMP Rake angle axial
6 Degree
HAND Cutting direction
R - Right
ID Technical product number
WAX42500-4.0
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LCCB Counterbore depth connection bore
19.9898 mm
LOC-03 CCFMS Form
02
LOC-03 CCSMS Style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Type
FDA Milling arbor mounting
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000230
MILTTY Mill tool type ISO
J - Face and side and mill (one more then one indexable insert pro cutting edeg) 90°
Name Identifying order number
WAX42500-4.0
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
5 Degree
RPMX Rotational speed maximum
18000 1/min
Working process
FEC - Square shoulder milling
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
