Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter TPA15R160M50.8-10N

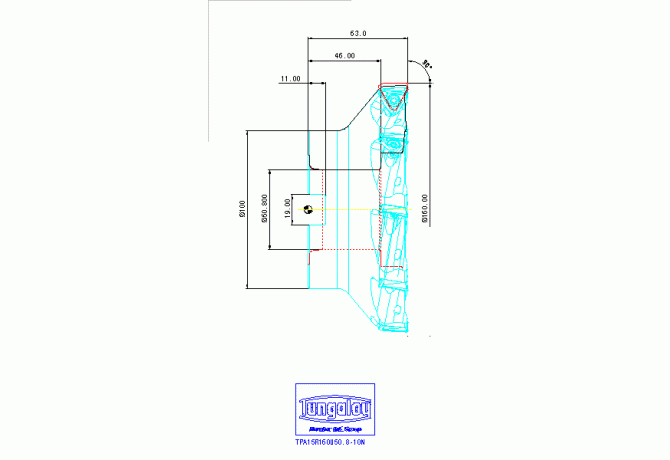

TPA15R160M50.8-10N

TPA15R160M50.8-10N

TPA15R160M50.8-10N

TPA15R160M50.8-10N

TPA15R160M50.8-10N

Tungaloy

Артикул: 6996235

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

60 Degree

A2A Clearance angle major Pos. A

10 Degree

B1A Cutting edge length Pos. A

15.7 mm

B3A Inscribed circle diameter Pos. A

12.7 mm

BLDA Tool style code Position A

1

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

6 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

15 mm

CICT Cutting item count

10

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

TT - Tungaloy

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.8 mm

D4A Cutting edge angle major Pos. A

90 Degree

D6A Wiper edge length Pos. A

1.9 mm

DC Cutting diameter

160 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

9/20/2016

DHUB Hub diameter

100 mm

DIN

FDA20001220

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

10

FamilyProducts

High precision shoulder square mill

HAND Cutting direction

R - Right

ID Technical product number

6996235

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

46 mm

LOC-03 CCFMS Form

12

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

2000

LOC-03 DCONMS Diameter

50.8 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA20001220

Name Identifying order number

TPA15R160M50.8-10N

OAL Overall length

63 mm

Working process

FEC - Square shoulder milling

WT Weight of item

4.4 kg

ZEFP Peripheral effective cutting edge count

10
