Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter R220.68-03.00-T16C-5

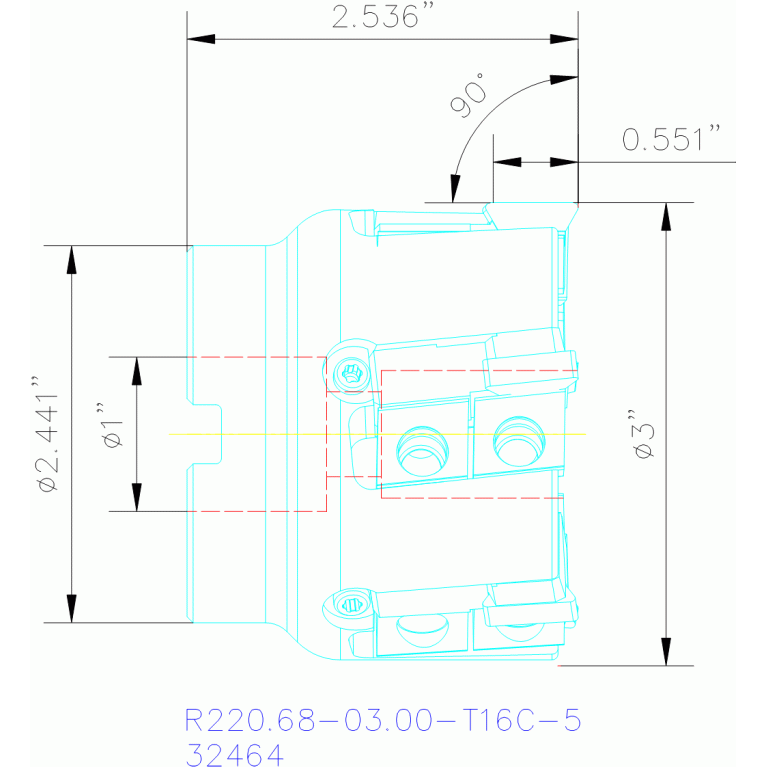

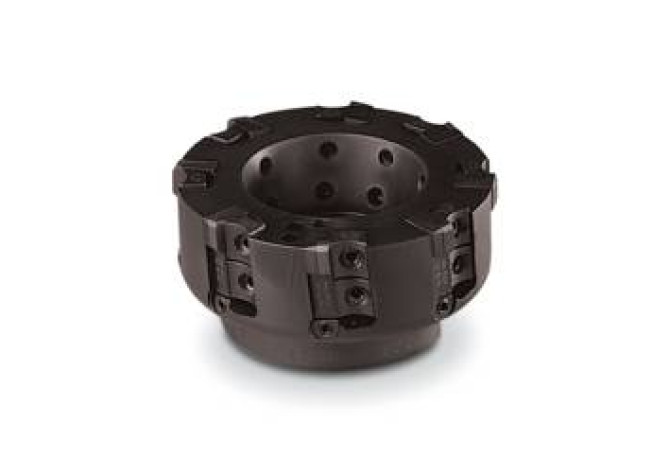

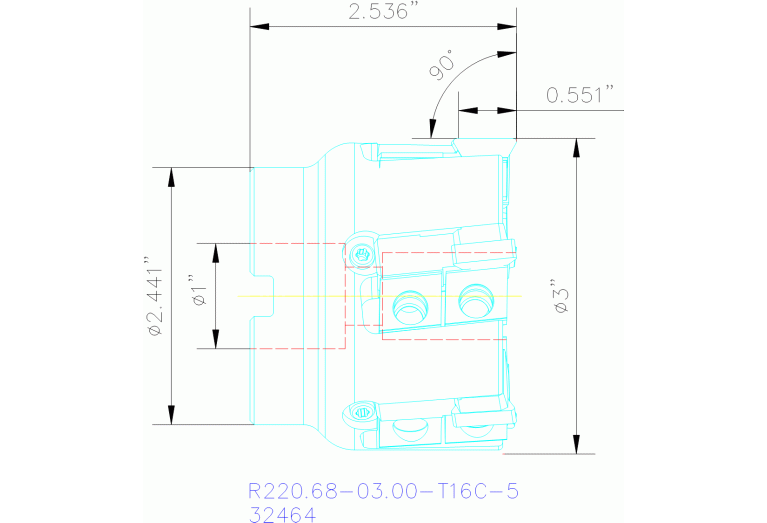

R220.68-03.00-T16C-5

R220.68-03.00-T16C-5 R220.68-03.00-T16C-5 R220.68-03.00-T16C-5 R220.68-03.00-T16C-5

R220.68-03.00-T16C-5

Seco
Артикул: 02571876
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
60 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
16.498 mm
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
1
C1A Insert thickness Pos. A
4.76 mm
CCONMS Connection count machine side
2
CDX Cutting depth maximum
14 mm
CICT Cutting item count
5
COMPC Company code
SO - SECO Tools
D1A Corner radius Pos. A
0.8 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
1.9 mm

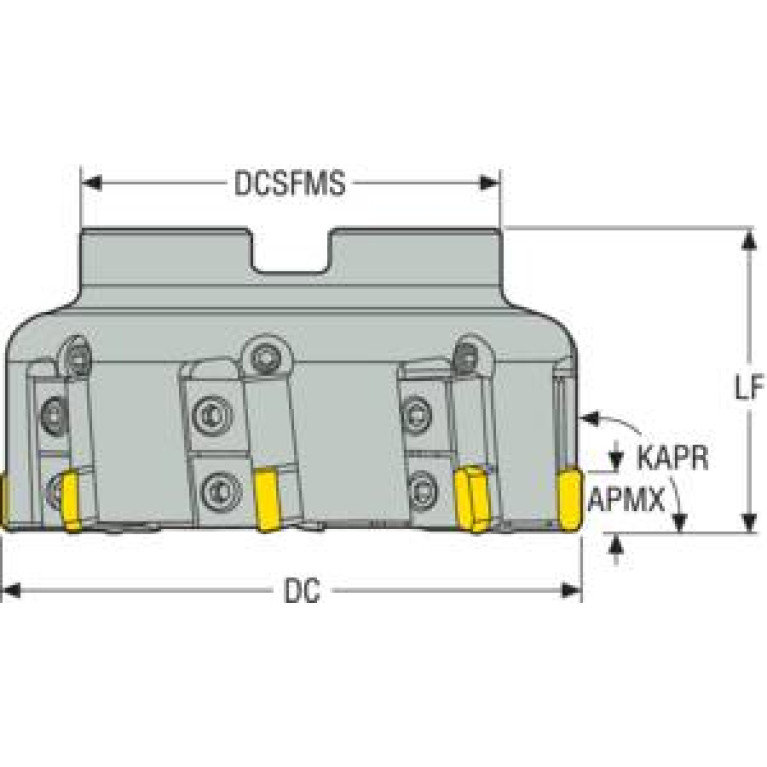

DC Cutting diameter
76.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DHUB Hub diameter
62 mm
DIN
FDA10002220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R220.68-03.00-T16C-5
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02571876
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
1
ISO
FDA22S1000H$07
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA22S1000H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
Name Identifying order number
R220.68-03.00-T16C-5
RPMX Rotational speed maximum
9600 1/min
Working process
No working processes available
WT Weight of item
1.5 kg
ZEFF Face effective cutting edge count
5
