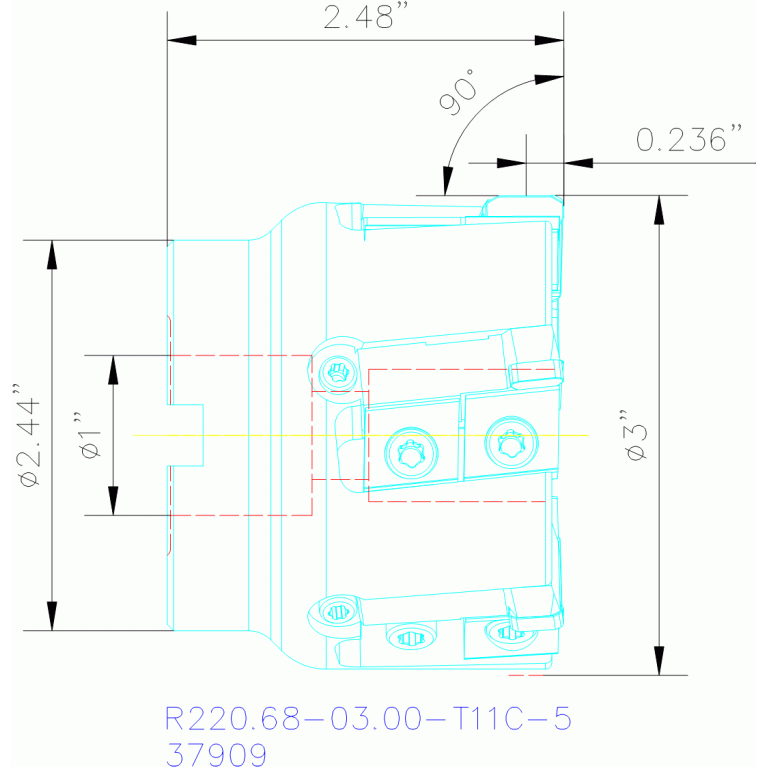

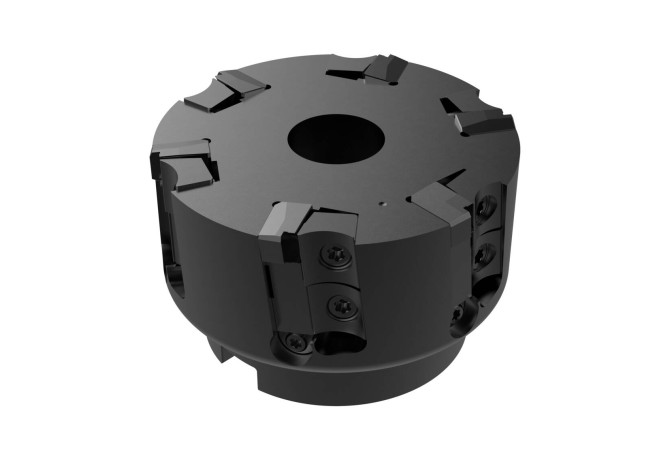

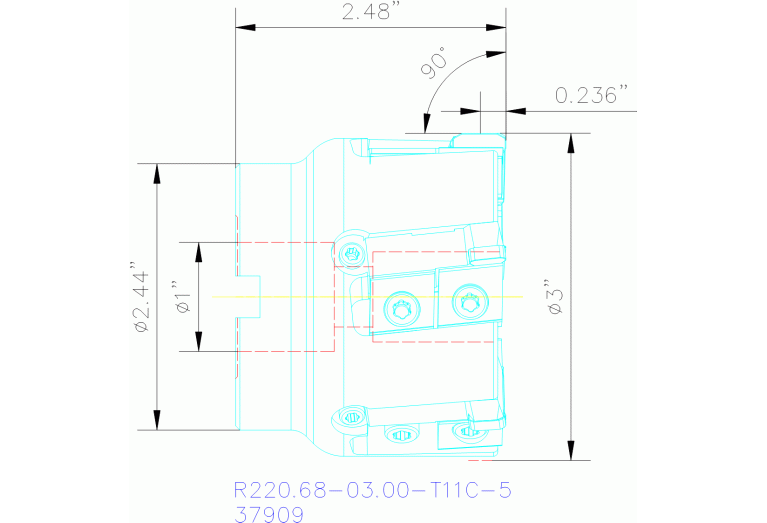

Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter R220.68-03.00-T11C-5

R220.68-03.00-T11C-5

R220.68-03.00-T11C-5 R220.68-03.00-T11C-5 R220.68-03.00-T11C-5 R220.68-03.00-T11C-5

R220.68-03.00-T11C-5

Seco
Артикул: 02611345
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
3 mm
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit

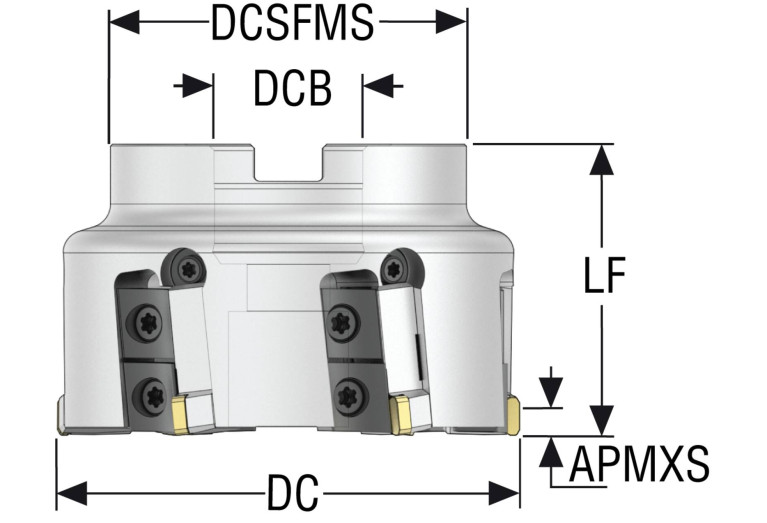

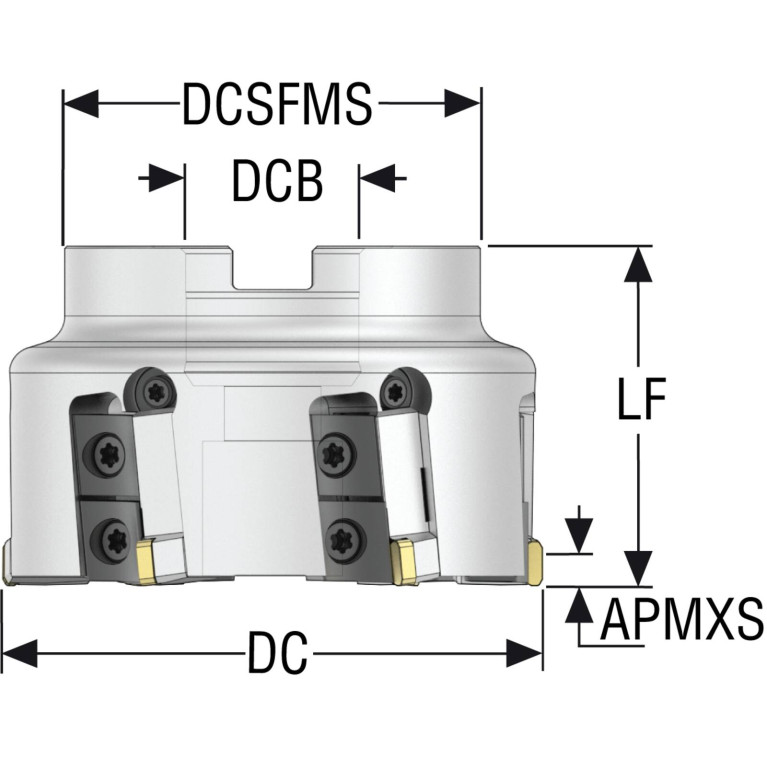

DC Cutting diameter
76.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DHUB Hub diameter
62 mm
DIN
FDA10002220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
R220.68-03.00-T11C-5
GAMF Rake angle radial
-6 Degree
GAMP Rake angle axial
-6 Degree
ID Technical product number
02611345
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10002220
Name Identifying order number
R220.68-03.00-T11C-5
OAL Overall length
63 mm
RPMX Rotational speed maximum
9600 1/min
Working process
No working processes available
WT Weight of item
1.759 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
