Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter HTP D1.50-4-.50-R-LN10

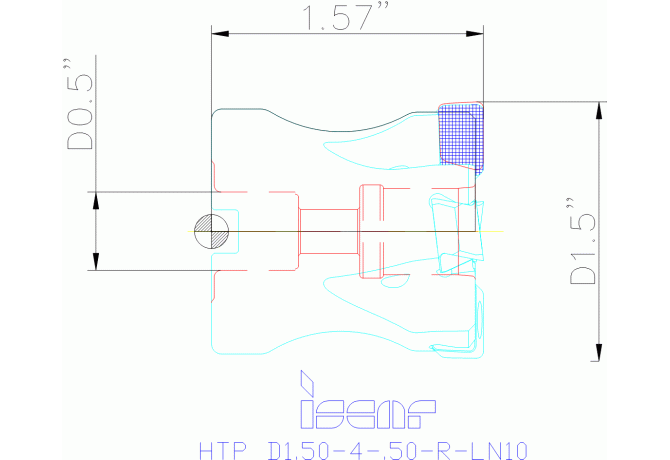

HTP D1.50-4-.50-R-LN10

HTP D1.50-4-.50-R-LN10 HTP D1.50-4-.50-R-LN10

HTP D1.50-4-.50-R-LN10

Iscar
Артикул: 3105161
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
10.5 mm
B2A Insert width Pos. A
6.5 mm
B3A Inscribed circle diameter Pos. A
6.5 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
10.13 mm
CCONMS Connection count machine side
1
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
1 mm
DC Cutting diameter
38.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
36.068 mm
DIN
FDA05000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Shell Mill Plungers Carrying Tangentially Clamped Inserts with 4 Cutting Edges
HAND Cutting direction
R - Right
ID Technical product number
3105161
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03 DCONMS Diameter
12.7 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA05000230
Name Identifying order number
HTP D1.50-4-.50-R-LN10
OAL Overall length
39.878 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
10.414 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
