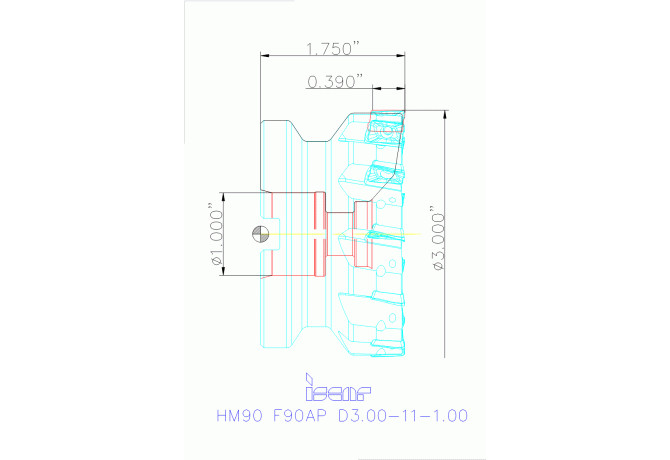

HM90 F90AP D3.00-11-1.00

HM90 F90AP D3.00-11-1.00 HM90 F90AP D3.00-11-1.00

HM90 F90AP D3.00-11-1.00

Iscar
Артикул: 3102087
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
11 Degree
B1A Cutting edge length Pos. A
10.95 mm
B2A Insert width Pos. A
6.7 mm
B3A Inscribed circle diameter Pos. A
6.7 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
3.55 mm
CCONMS Connection count machine side
3
CICT Cutting item count
11
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.5 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
1.2 mm
DC Cutting diameter
76.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
70.104 mm
DIN
FDA10000220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
11
FamilyProducts
90\S\0 Face Mills Carrying HM90 APKT 1003... Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102087
Interface codes
J6 /
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000220
Name Identifying order number
HM90 F90AP D3.00-11-1.00
OAL Overall length
44.45 mm
RMPX Ramping angle maximum
0.9 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
53.594 kg
ZEFF Face effective cutting edge count
11
ZEFP Peripheral effective cutting edge count
11
