Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter H490 F90AX D4.0-5-1.5-17

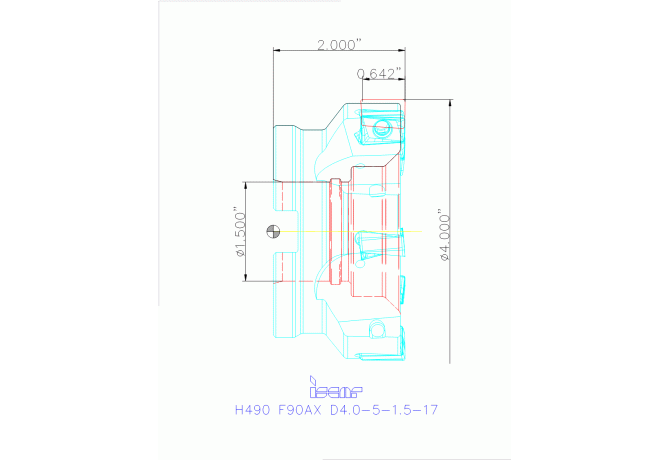

H490 F90AX D4.0-5-1.5-17

H490 F90AX D4.0-5-1.5-17 H490 F90AX D4.0-5-1.5-17

H490 F90AX D4.0-5-1.5-17

Iscar
Артикул: 3104625
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
16.7 mm
B2A Insert width Pos. A
11.2 mm
B3A Inscribed circle diameter Pos. A
11.2 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
10.4 mm
CCONMS Connection count machine side
2
CICT Cutting item count
5
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.4 mm
D4A Cutting edge angle major Pos. A
90 Degree
D6A Wiper edge length Pos. A
4.7 mm
DC Cutting diameter
101.6 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
81.534 mm
DIN
FDA15000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
90\S\0 Face Mills Carrying H490 ANKX 17.. Double-Sided Rectangular Inserts with
HAND Cutting direction
R - Right
ID Technical product number
3104625
Interface codes
J6 / J61
ISO
FDA02G3810H$07
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1500
LOC-03 DCONMS Diameter
38.1 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
FDA02G3810H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15000230
Name Identifying order number
H490 F90AX D4.0-5-1.5-17
OAL Overall length
50.8 mm
RMPX Ramping angle maximum
1 Degree
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
FEC - Square shoulder milling
WT Weight of item
77.724 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
