Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter FMAX-100B18R

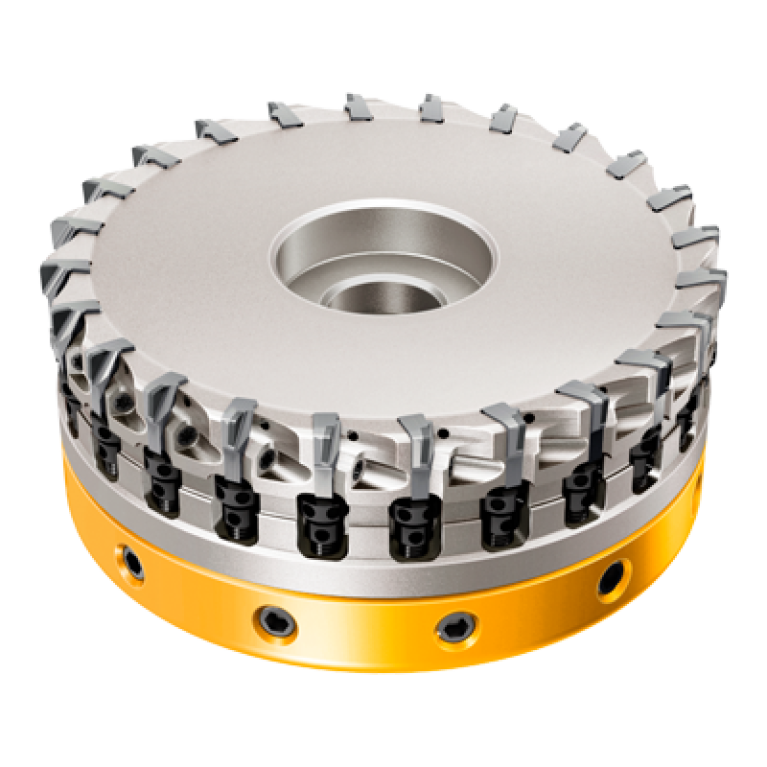

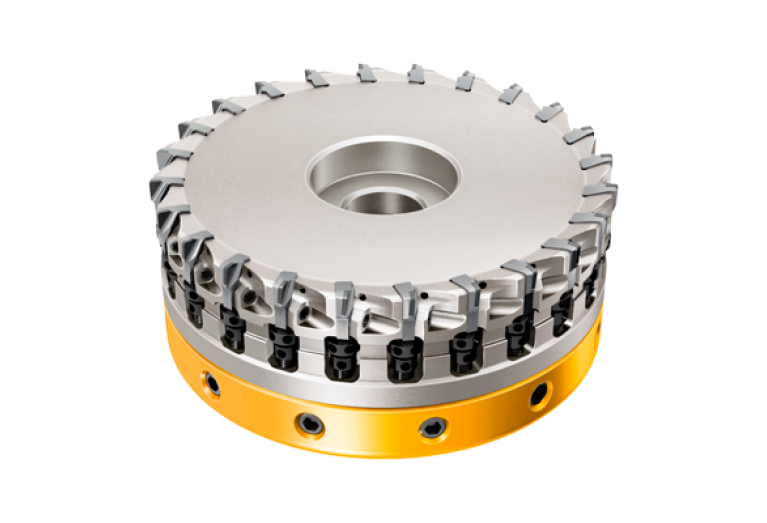

FMAX-100B18R

FMAX-100B18R

Mitsubishi Materials

Артикул: 10541265

В наличии

В корзину

Описание

Характеристики

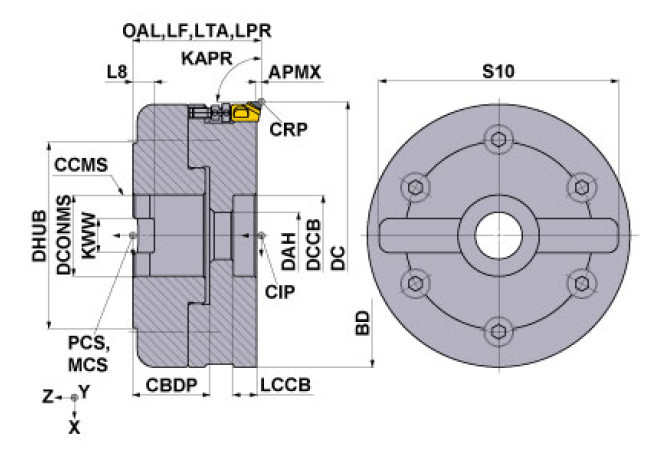

A2A Clearance angle major Pos. A

10 Degree

B2A Insert width Pos. A

9 mm

BD Body diameter

79 mm

BLDA Tool style code Position A

99

C1A Insert thickness Pos. A

4.2 mm

CCONMS Connection count machine side

1

CDX Cutting depth maximum

2 mm

CICT Cutting item count

18

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

MI - Mitsubishi Materials

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

0.1 mm

D6A Wiper edge length Pos. A

2 mm

DC Cutting diameter

100 mm

DCCB Counterbore diameter connection bore

32 mm

Delivery state valid from

4/1/2022

DIN

FDA03202200

F23 Number of mounting layers

1

F24 Cutting item count per mounting layer

18

FamilyProducts

face mills

GAMF Rake angle radial

0 Degree

GAMP Rake angle axial

5 Degree

HAND Cutting direction

R - Right

ID Technical product number

10541265

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LCCB Counterbore depth connection bore

9 mm

LOC-03 CCFMS Connection code form

22

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0320

LOC-03 DCONMS Diameter

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA03202200

MILTTY Mill tool type ISO

A - Face milling cutter shoulder cutter peripheral

Name Identifying order number

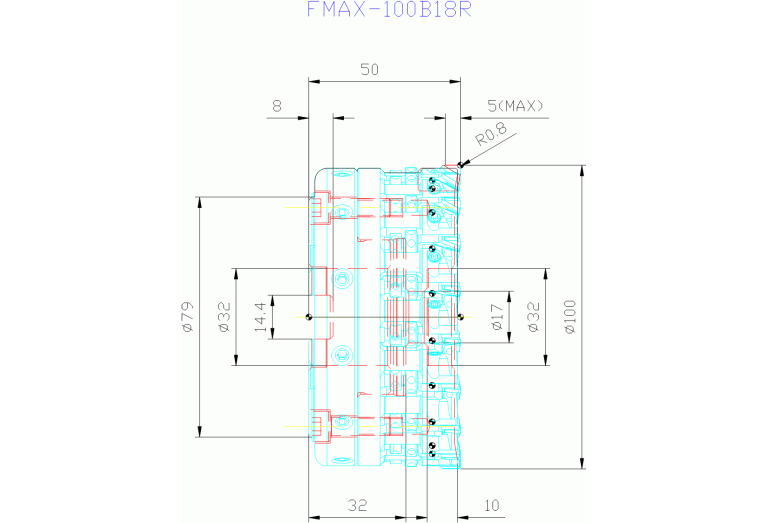

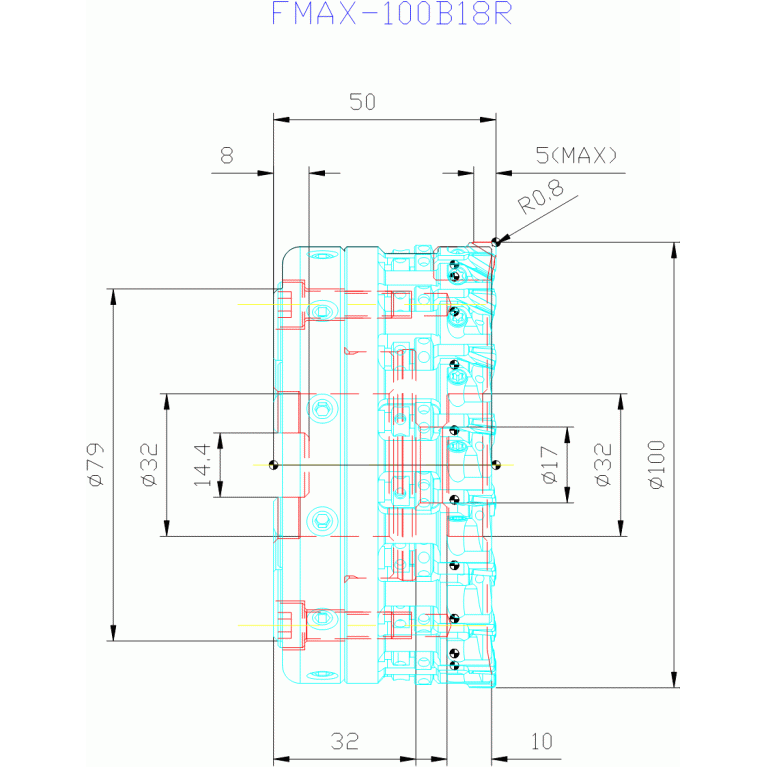

FMAX-100B18R

OAL Overall length

50 mm

Working process

No working processes available

WT Weight of item

1.81 kg

ZEFF Face effective cutting edge count

18

ZEFP Peripheral effective cutting edge count

18
