Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter F90LN D8.00-25-2.50-R-N15

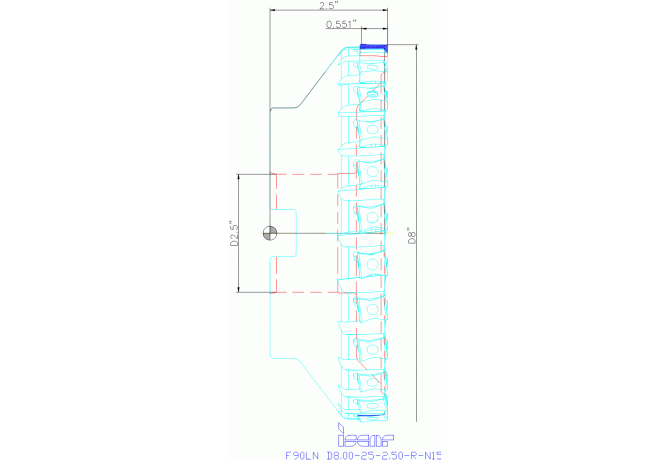

F90LN D8.00-25-2.50-R-N15

F90LN D8.00-25-2.50-R-N15 F90LN D8.00-25-2.50-R-N15

F90LN D8.00-25-2.50-R-N15

Iscar
Артикул: 3102218
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
15 mm
B2A Insert width Pos. A
6 mm
B3A Inscribed circle diameter Pos. A
6 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
13.88 mm
CCONMS Connection count machine side
2
CICT Cutting item count
25
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
203.2 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
7/7/2017
DHUB Hub diameter
134.9756 mm
DIN
SPK25000220
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
25
FamilyProducts
90\S\0 Face Mills Carrying LN..1506... Tangentially Clamped Inserts
HAND Cutting direction
R - Right
ID Technical product number
3102218
Interface codes
J6 / J61
ISO
SPK02S2500H$07
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
2500
LOC-03 DCONMS Diameter
63.5 mm
LOC-03 TCDCONCDMS Connection tolerance class coded
H$07
LOC-03 ISO
SPK02S2500H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK25000220
Name Identifying order number
F90LN D8.00-25-2.50-R-N15
OAL Overall length
63.5 mm
TCDCONMS ISO-tolerance class shank diameter
H7
Working process
No working processes available
WT Weight of item
445.77 kg
ZEFF Face effective cutting edge count
25
ZEFP Peripheral effective cutting edge count
25
