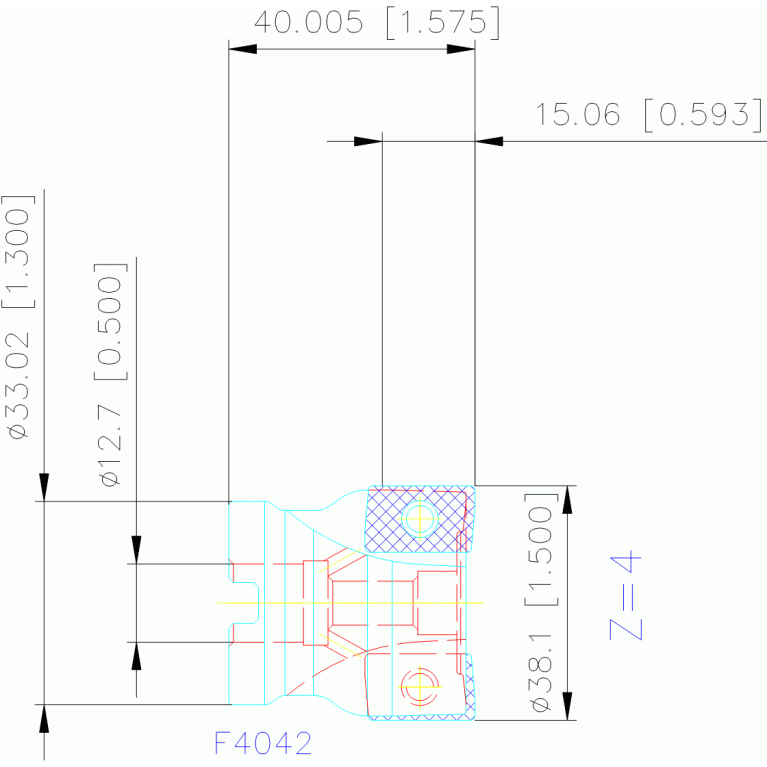

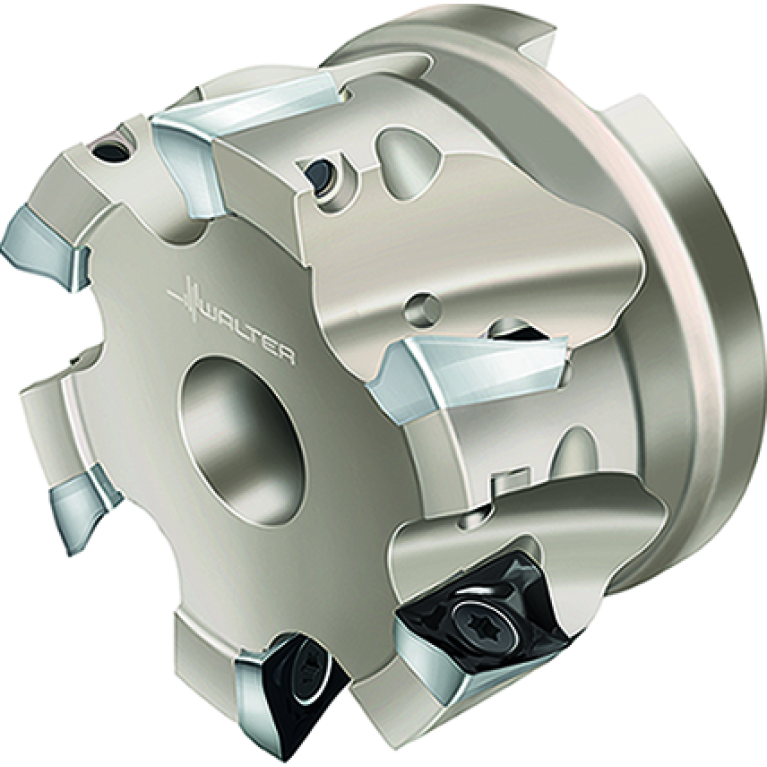

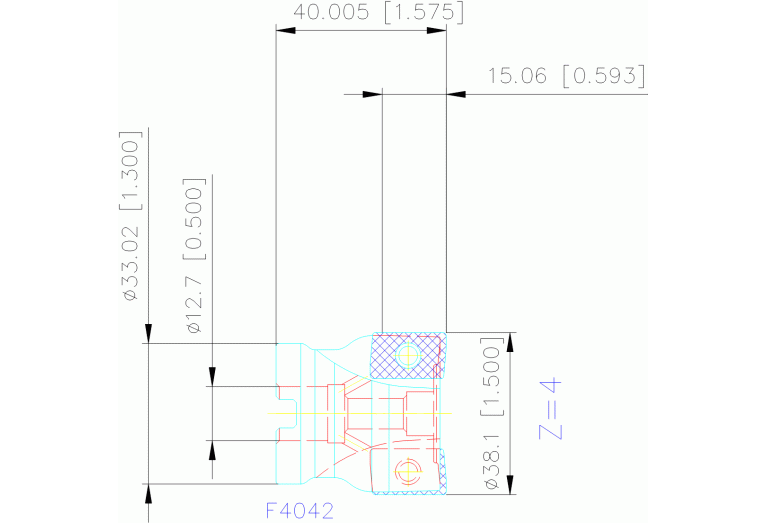

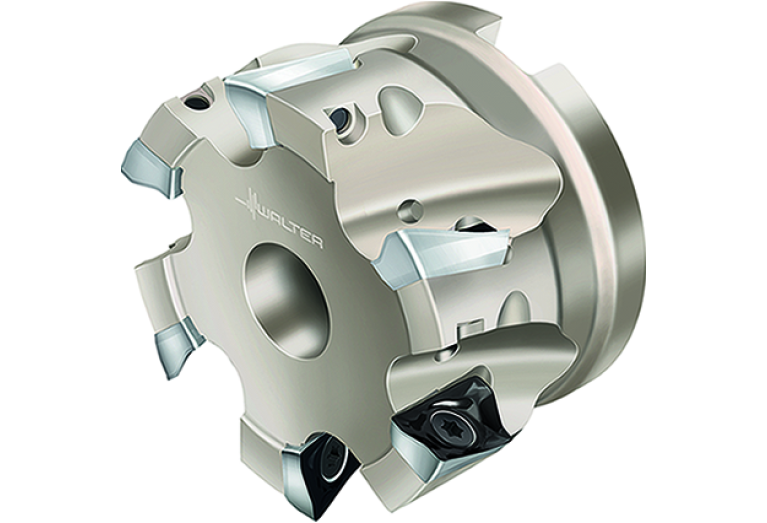

Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter F4042.UB.038.Z04.15

F4042.UB.038.Z04.15

Артикул: 5051549

В наличии

В корзину

Описание

Характеристики

BI Block index

BMC Body material code

S - Solid steel

CCONMS Connection count machine side

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

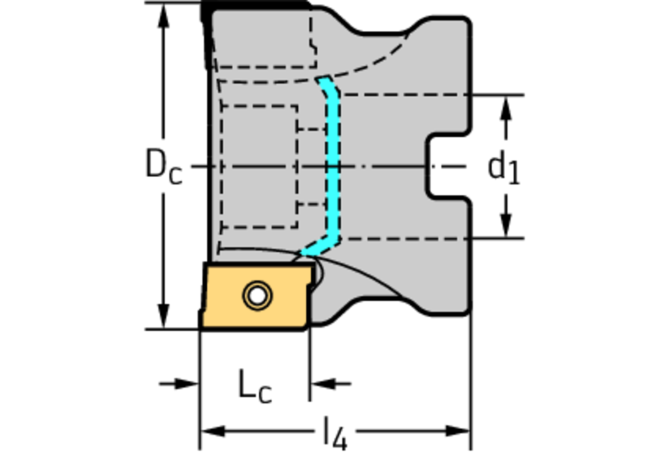

DC Cutting diameter

38.1 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DHUB Hub diameter

33 mm

DIN

FDA50001230

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder milling cutters F4042

HAND Cutting direction

R - Right

ID Technical product number

5051549

Interface codes

J6 / J61

ISO

FDA12R5000$$$$

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-01 BI Block index

LOC-01 ISO

WR$$AD1606**3R*****

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

W-AD1606**

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

3 Inch with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

12.7 mm

LOC-03 ISO

FDA12R5000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA50001230

Name Identifying order number

F4042.UB.038.Z04.15

OAL Overall length

40 mm

RMPX Ramping angle maximum

5.8 Degree

RPMX Rotational speed maximum

16200 1/min

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.18 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
