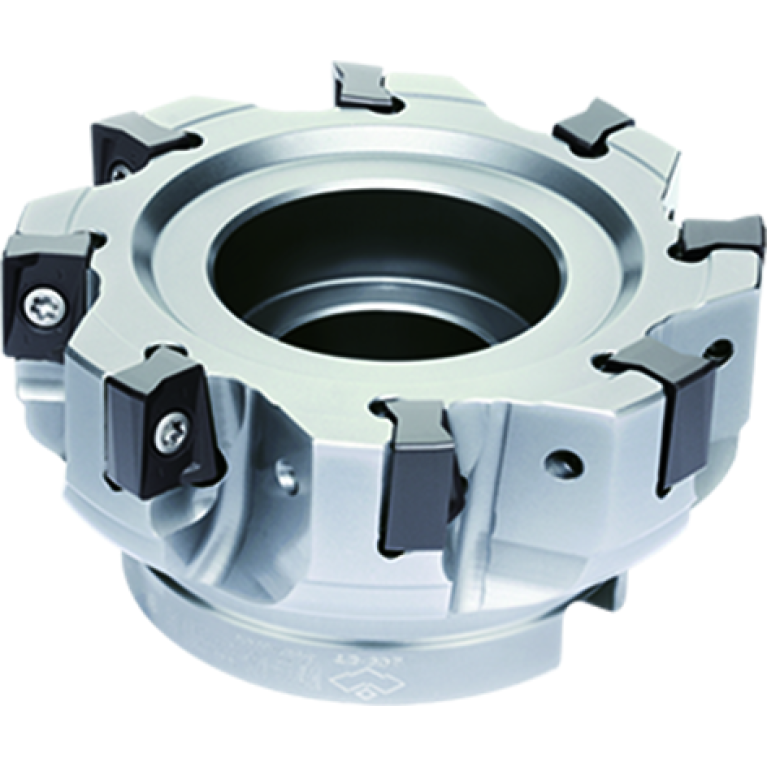

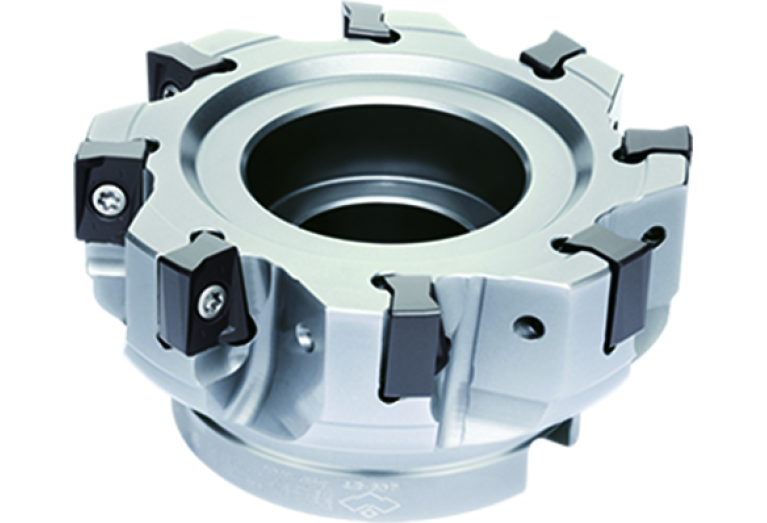

Главная Каталог продукции Toolunited 17 308-02 - Shoulder milling cutter EMP13-080-A27-AN11-07

EMP13-080-A27-AN11-07

Артикул: EMP13-080-A27-AN11-07

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

85 Degree

A2A Clearance angle major Pos. A

0 Degree

B1A Cutting edge length Pos. A

11.85 mm

B2A Insert width Pos. A

8.4 mm

B3A Inscribed circle diameter Pos. A

8.4 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

5.7 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

11.2 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.4 mm

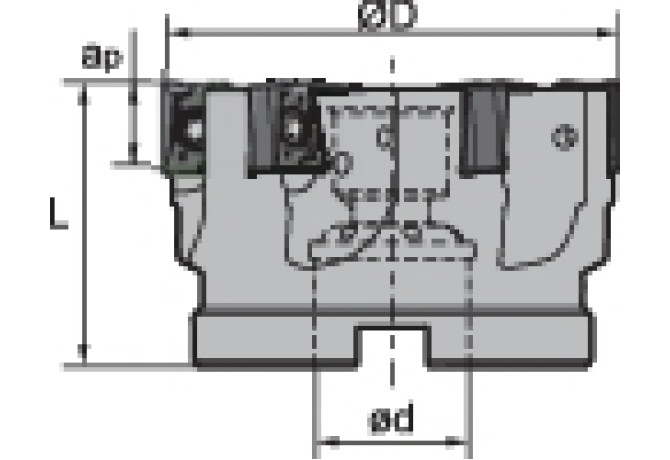

DC Cutting diameter

80 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

11.8 kg

DIN

FDA02702210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Square shoulder mill

HAND Cutting direction

R - Right

ID Identifying order number

EMP13-080-A27-AN11-07

Interface codes

J6 /

ISYC Subclass

308-02 - Shoulder milling cutter

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0270

LOC-03 DCONMS Diameter

27 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02702210

OAL Overall length

50 mm

Working process

FDR - Rotary milling, turn milling,FEC - Square shoulder milling,FNU - Groove milling,FPL - Face milling,FRU - Round moulding

WT Weight of item

1.18 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
