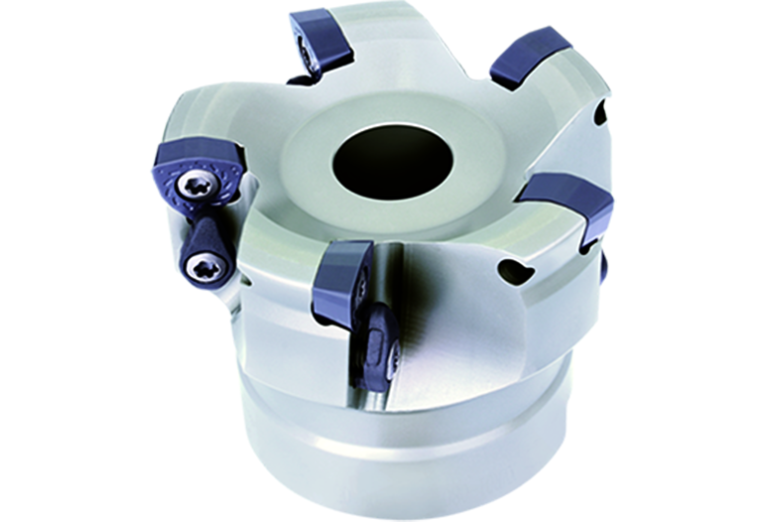

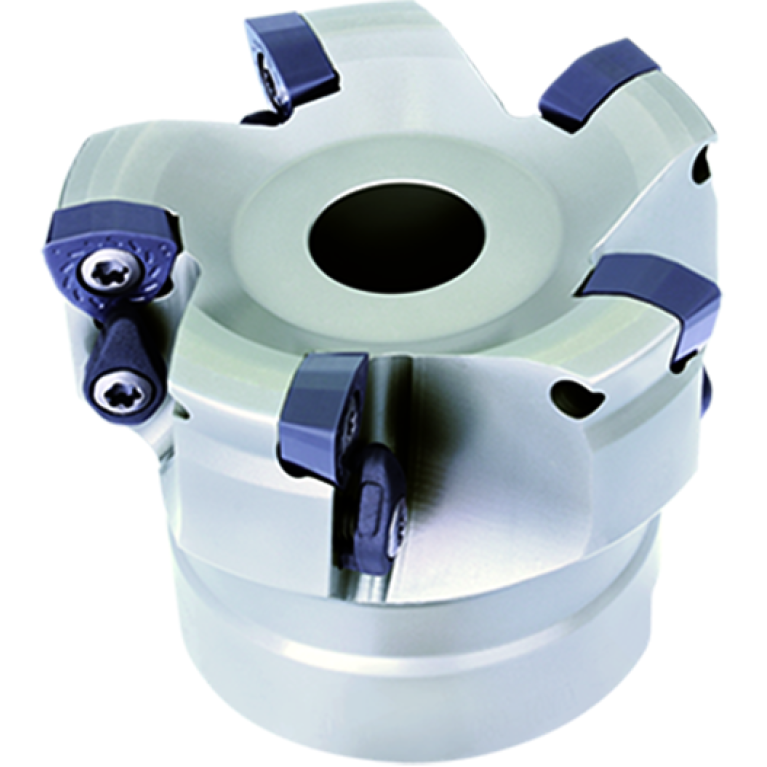

Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter XMR01-063-A22-WP09-03

XMR01-063-A22-WP09-03

Артикул: XMR01-063-A22-WP09-03

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

11 Degree

B3A Inscribed circle diameter Pos. A

15 mm

BLDA Tool style code Position A

C1A Insert thickness Pos. A

7 mm

CCONMS Connection count machine side

CDX Cutting depth maximum

3 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

0 - Without coolant exit

D1A Corner radius Pos. A

2.5 mm

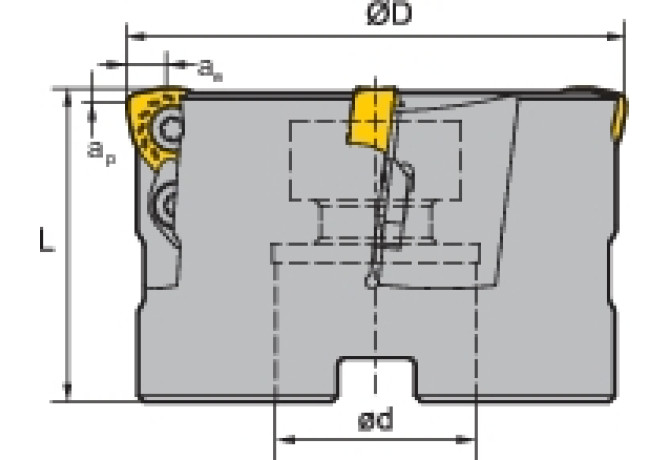

DC Cutting diameter

49.4 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter maximum

63 mm

Delivery state

NL - Discontinued

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

High feed mill

HAND Cutting direction

R - Right

ID Identifying order number

XMR01-063-A22-WP09-03

Interface codes

J6 /

ISYC Subclass

308-01 - Face milling cutter

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

0 Metric

LOC-03 CZCMS Size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

OAL Overall length

50 mm

Working process

FDR - Rotary milling, turn milling,FFO - Die milling,FPL - Face milling,FRU - Round moulding,FSE - Counter-sinking,FZI - Circular milling

WT Weight of item

0.7 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
