Главная Каталог продукции Toolunited 17 308-01 - Face milling cutter T460 SMD2.0-1.18-3-1.0-13

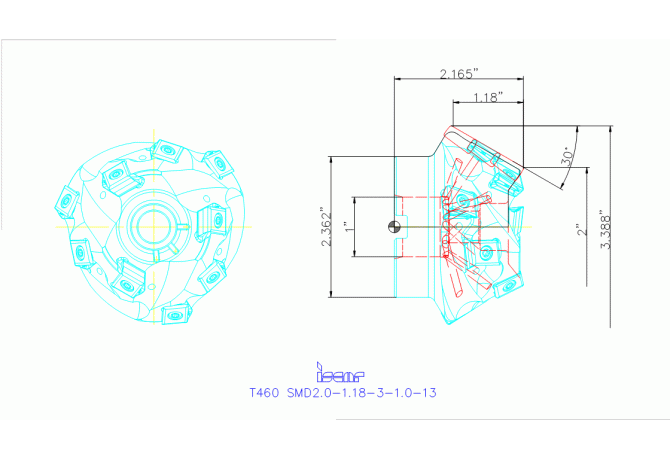

T460 SMD2.0-1.18-3-1.0-13

T460 SMD2.0-1.18-3-1.0-13 T460 SMD2.0-1.18-3-1.0-13

T460 SMD2.0-1.18-3-1.0-13

Iscar
Артикул: 3106949
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
13.74 mm
B2A Insert width Pos. A
6.65 mm
B3A Inscribed circle diameter Pos. A
6.65 mm
BLDA Tool style code Position A
4
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
13.05 mm
CCONMS Connection count machine side
2
CICT Cutting item count
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
DC Cutting diameter
50.8 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter maximum
86.0552 mm
Delivery state valid from
7/7/2017
DHUB Hub diameter
59.944 mm
DIN
FDA10000230
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
9
FamilyProducts
30\S\0, 45\S\0 and 60\S\0 Extended Flute Face Mill
HAND Cutting direction
R - Right
ID Technical product number
3106949
Interface codes
J6 / J61
ISO
FDA02G2540H$07
ISYC Subclass
308-01 - Face milling cutter
KAPR Tool cutting edge angle
60 Degree
LOC-03 CCFMS Connection code form
02
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03 ISO
FDA02G2540H$07
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA10000230
Name Identifying order number
T460 SMD2.0-1.18-3-1.0-13
OAL Overall length
54.991 mm
Working process
No working processes available
WT Weight of item
56.134 kg
ZEFF Face effective cutting edge count
3
ZEFP Peripheral effective cutting edge count
3
